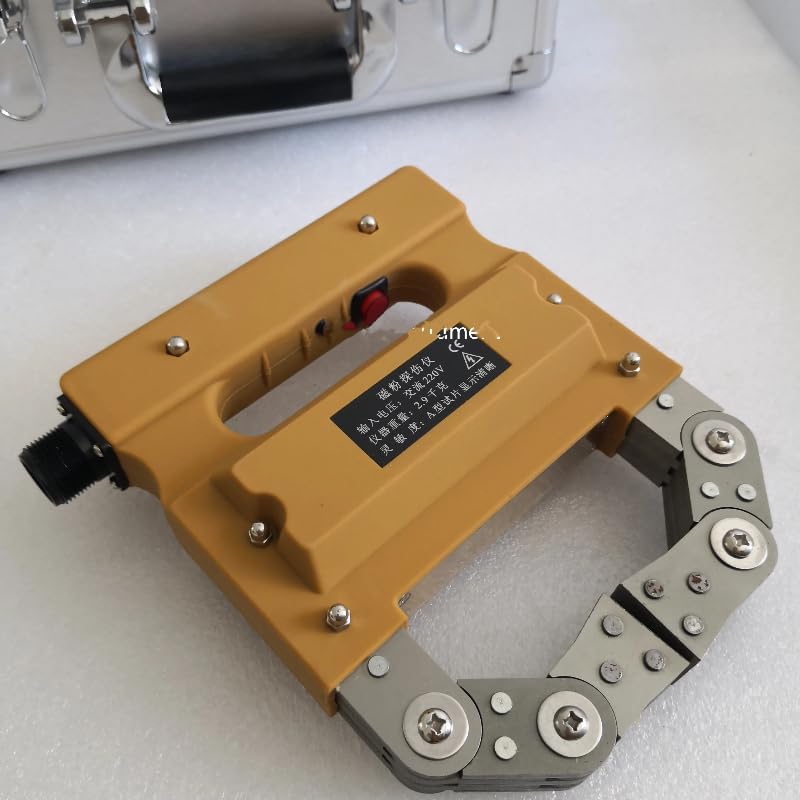

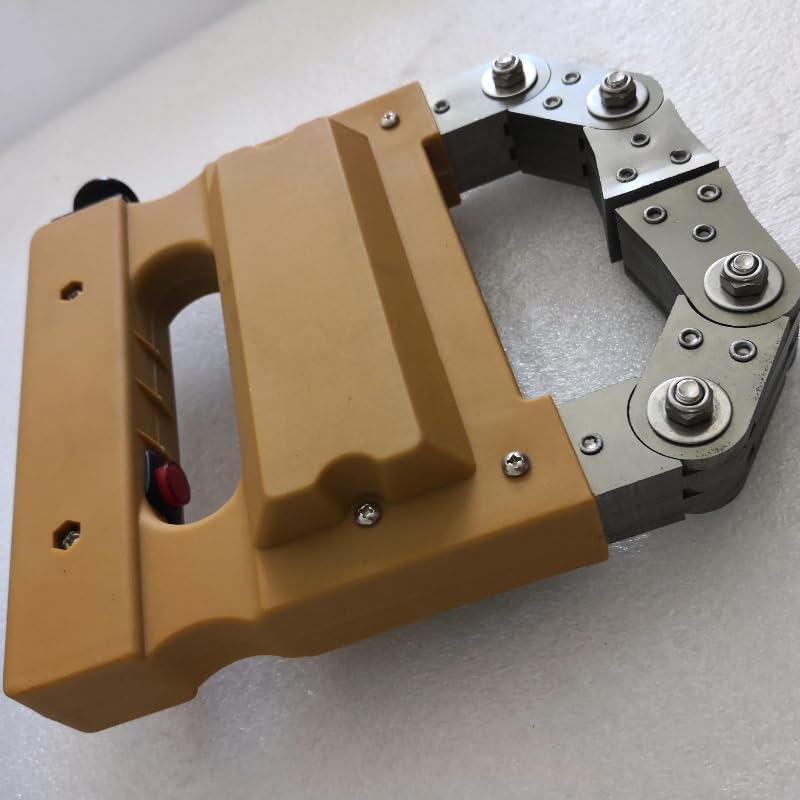

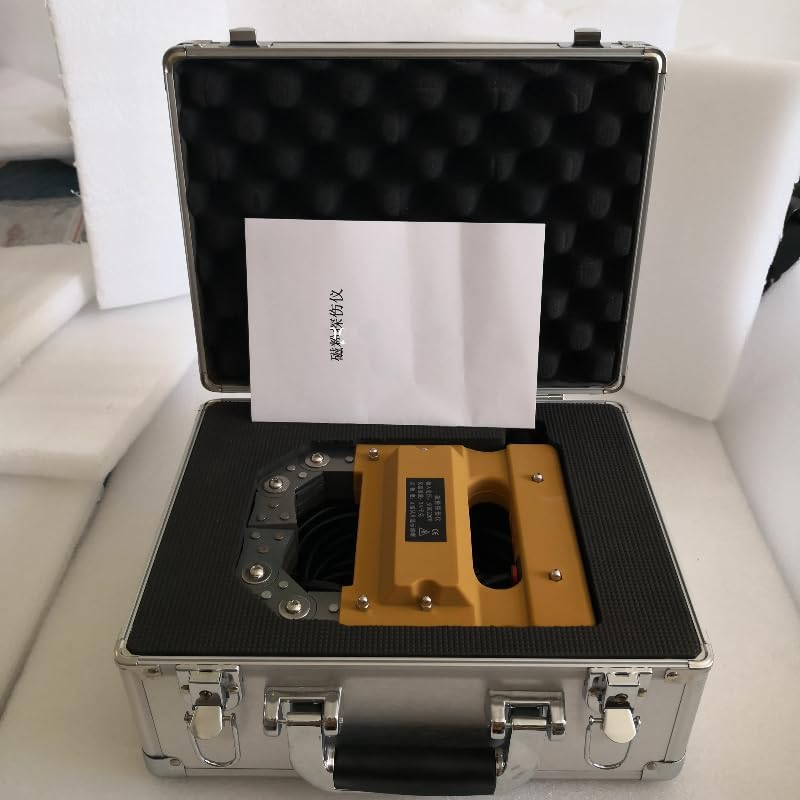

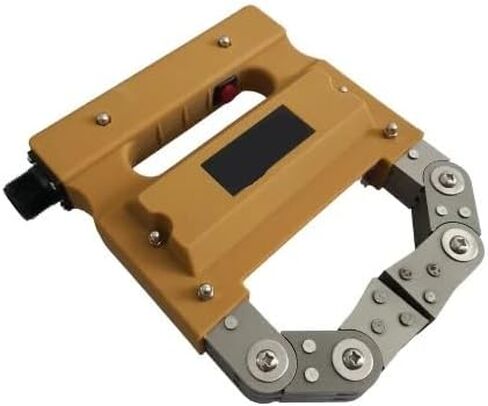

المحمولة المغناطيسي الجسيمات نير للكشف عن الخلل MT للكشف عن الخلل NDT آلة الاختبار

KWD 314
ماركة
XAXAX
وزن
8 kg
– 1 +

مميزات خاصة

  • Multi-industry and multi-scenario adaptability, covering all types of ferromagnetic workpieces: Suitable for industries such as petroleum, shipbuilding, machinery, aviation, automotive, and railway. It can inspect ferromagnetic workpieces such as boiler pressure vessels, forgings, castings, and welded parts, accurately identifying surface and near-surface defects caused by forging, welding, and fatigue.
  • Portable design + extremely simple operation, maximizing on-site work efficiency: The probe weighs only 3.1kg and measures 208×52×146mm, making it highly portable. Direct AC220V power supply eliminates the need for additional instruments; power-on/off can be completed within one minute, allowing for rapid deployment in workshops and outdoor maintenance.
  • Strong magnetic performance ensures detection accuracy: AC lifting force > 5.5kg (53.9N), magnetic moment range 50~215mm, efficiently magnetizing ferromagnetic workpieces, ensuring sensitive magnetic powder adsorption for surface and near-surface defects, resulting in reliable and highly repeatable test results.
  • Non-destructive testing (NDT) technology, zero workpiece damage: Utilizing the principle of magnetic particle inspection (MT), this is a non-destructive testing method that does not damage the workpiece structure. It can be repeatedly used in production line quality inspection, equipment maintenance, and other processes, reducing testing costs.
  • Direct AC power supply + low power consumption, maximum practicality: With a 220V 50Hz power input and an operating current of only AC1.5A, it requires no complex power supply configuration, is suitable for various industrial scenarios, and is a cost-effective tool for defect detection in ferromagnetic workpieces.

وصف

Parameter Category Specific Information

Model Number: KD-220AC
Electric Source: 220V 50Hz
Working Current: AC1.5A
Work Intervals Time: Turn on/off within one minute
Magnetic Moment: 50~215mm
Lifting Force (AC): >5.5kg (53.9N)
Probe Weight: 3.1kg
Probe Outline Dimension: 208×52×146mm
Testing Principle: Magnetic Particle Inspection (MT)
Applicable Workpiece Type: Ferromagnetic workpieces (forgings, weldments, castings, etc.)
Defect Detection Range: Surface and near-surface defects (cracks, inclusions, etc.)
Applicable Industries: Petroleum, shipbuilding, machinery, aviation, automotive, railway, etc.
