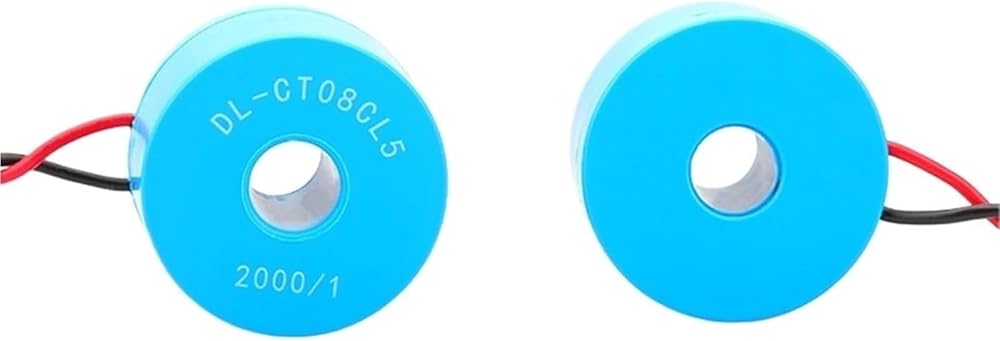

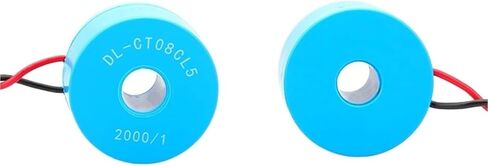

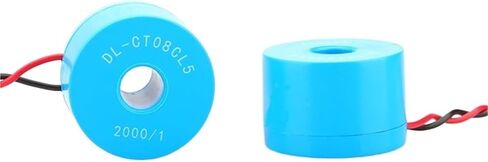

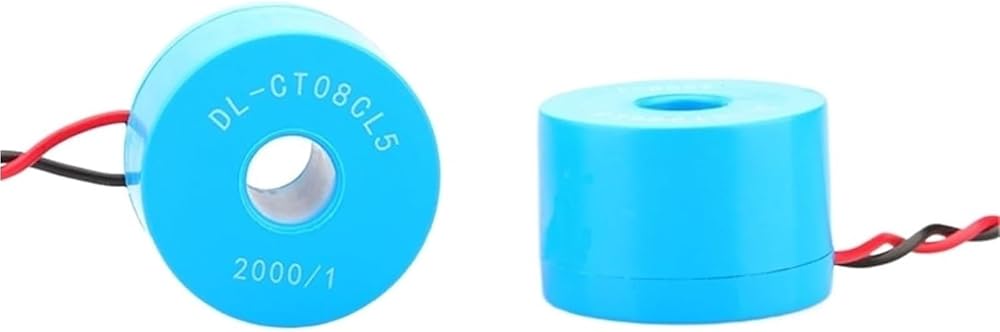

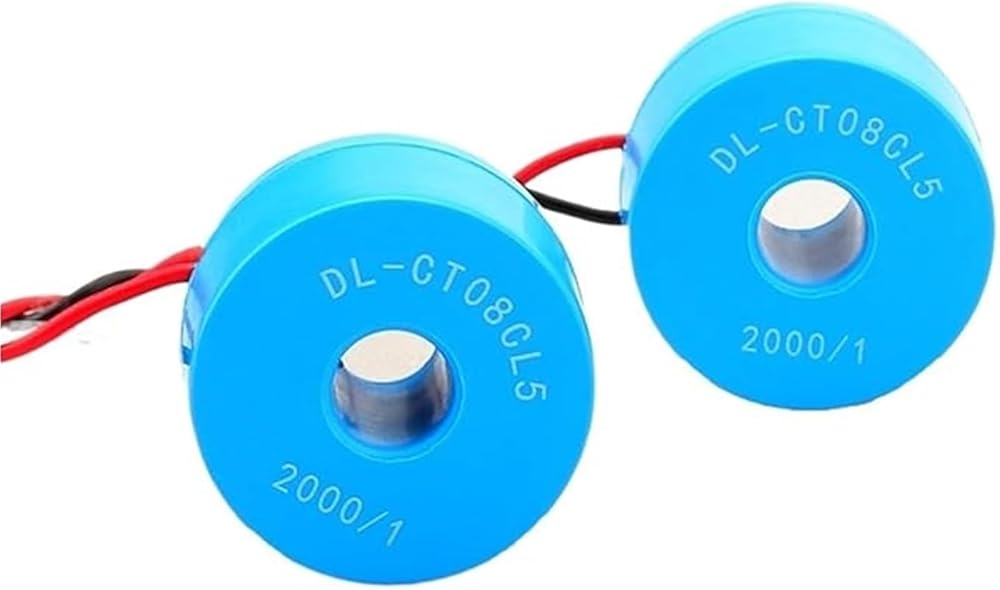

مصغرة محول التيار المتردد نوع الرصاص DL-CT08CL5 20A / 10mA 40A / 20mA 2000: 1 حلقة in Kuwait مصغرة محول التيار المتردد نوع الرصاص DL-CT08CL5 20A / 10mA 40A / 20mA 2000: 1 حلقة in Kuwait مصغرة محول التيار المتردد نوع الرصاص DL-CT08CL5 20A / 10mA 40A / 20mA 2000: 1 حلقة in Kuwait مصغرة محول التيار المتردد نوع الرصاص DL-CT08CL5 20A / 10mA 40A / 20mA 2000: 1 حلقة in Kuwait

مصغرة محول التيار المتردد نوع الرصاص DL-CT08CL5 20A / 10mA 40A / 20mA 2000: 1 حلقة

KWD 14.500
ماركة
Generic
مقاسDL-CT08CL5-2000/1
– 1 +

مميزات خاصة

  • Miniature ring type structure, small volume, light weight, suitable for compact equipment and PCB installation.
  • Standard ratio 2000:1, output 20A/10mA, 40A/20mA, high precision for micro current detection.
  • Lead wire type connection, easy wiring and installation, strong compatibility.
  • High linearity, low phase error, stable output for current sampling and monitoring.
  • Widely used in smart meters, power modules, energy monitoring, industrial control and electronic instruments.

وصف

Scope of application: Measurement
Kind: Current transformer
Model: DL-CT08CL6
Encapsulation form: Epoxy Resin
Winding form: Multi-layer flat wound
Magnetizer properties: High permeability amorphous nanocrystalline
Core shape: Ring
Operating frequency: Low frequency
Installation method: Horizontal seal
Skeleton material: Plastic
Quality factor Q: -
Inductance: -
Allowable error: 0.2 percent
Inductive reactance XL: -
Rated current: 0
Distributed capacitance: -
Nominal voltage: 0
Minimum number of packages: 1
Order No.: -
Item No.: -
Whether the source of cross-border export is exclusive: No
Application areas: Electrician Electrical

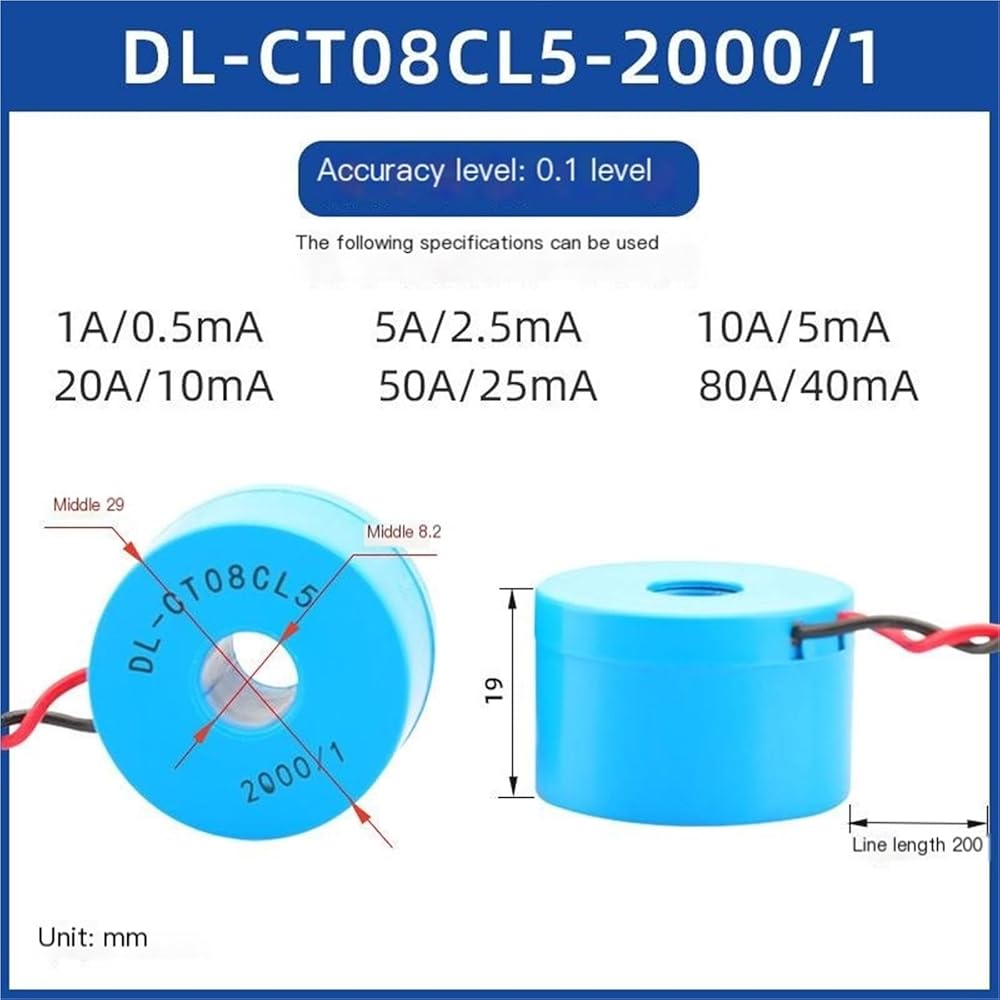

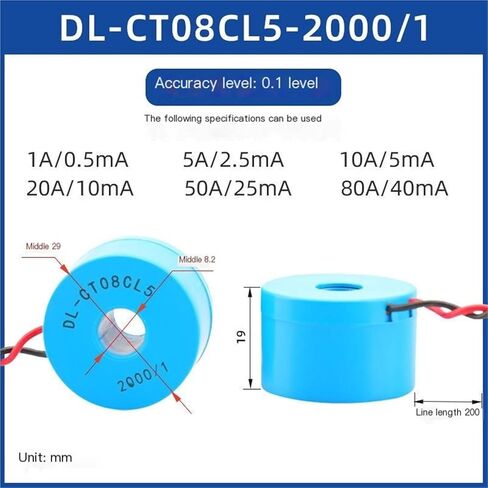

Specifications: DL-CT08CL5 - 2000/1
Accuracy level: Level 0.1
Linearity: 0.1%
