مميزات خاصة

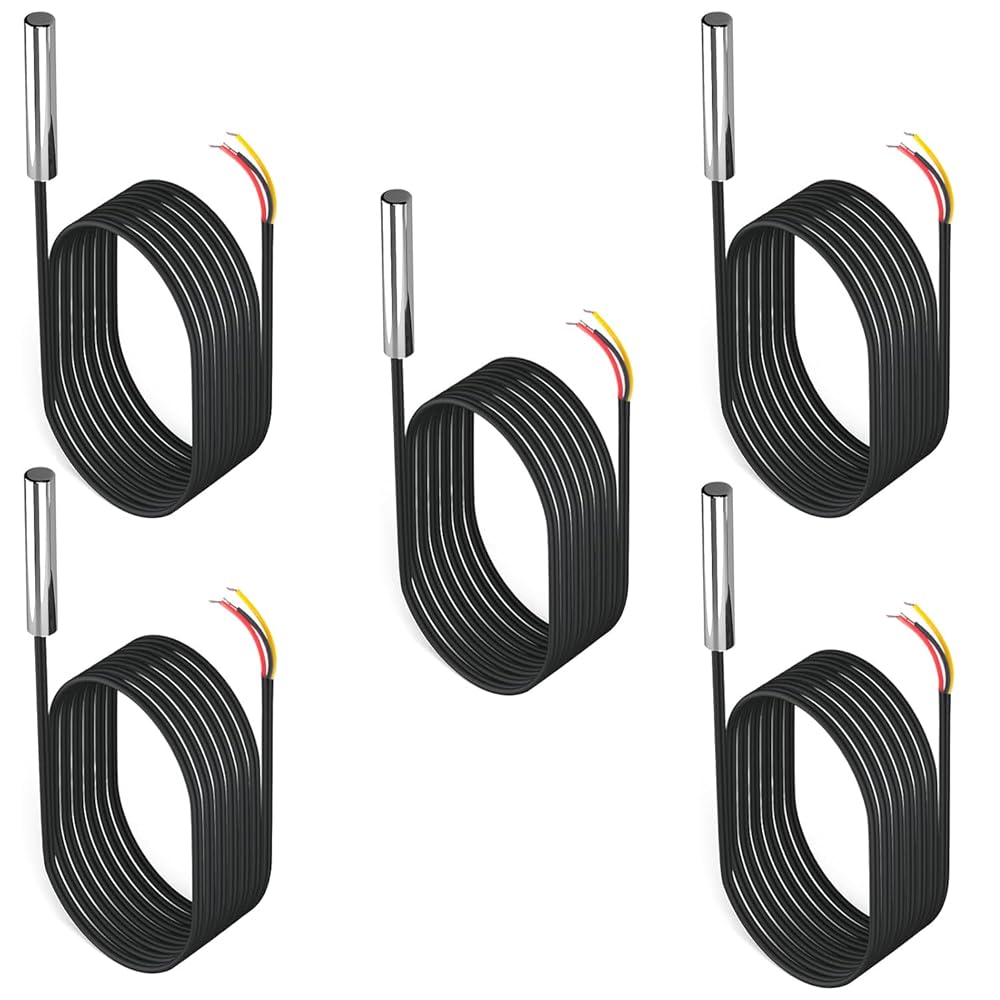

Durable & Waterproof Design: Encased in high-quality stainless steel (6*50mm), this 1 meter waterproof temp sensor probe resists water, moisture, and rust, ensuring reliable performance in harsh environments.
Wide Temperature Range for Industrial & Home Use: Accurately measures from -55°C to +125°C (9~12 bit resolution) as a high-accuracy thermistor temperature sensor. Wires withstand up to 85°C; avoid prolonged extreme heat exposure.
Precision Digital Temperature Probe: Converts temperature to digital signals instantly through direct contact. Operates on 3.0V–5.5V power with no external components, ideal for water temperature sensors and HVAC systems.
Premium Pure Copper Wiring: Built with pure copper leads (red/VCC, yellow/DATA, black/GND) and hard-sealed Colloidal encapsulation for stable conductivity and long-term protection against damage
Pre-Calibrated & Individually Packaged: Each 10K temperature sensor probe undergoes rigorous testing and ships ready for quick installation in cold storage, breweries, or home appliances.

وصف

Core Features
Accurate & Reliable Measurement: Designed for precision, this digital temperature sensor probe converts physical temperature into clear digital signals (9~12 bit resolution) with an error margin of ±0.5°C
Plug-and-Play Convenience: Operates on 3.0V–5.5V power with a single-bus interface. No external components needed—connect the color-coded wires (red/VCC, yellow/DATA, black/GND) and start monitoring
Technical Specifications
Measurement range: -55°C to +125°C (-13℉ to 257℉)
Head Size: 5 x 25 mm / 0.2" x 1" (D*L)
Connector: 3 Pin JST XH2.54mm Plug
Resistance: 10K Ohm
Accuracy: 1%
Total Length: 1 meter (3.28ft)
Applicable Voltage Range: 3-5V. Applicable Current Range: 0-10 mA
What's Included
5 X temperature control cables
1 X Independent Packaging Bag
Ideal Applications
Monitor refrigeration units, cold storage warehouses, or HVAC systems. Track liquid temperatures in home brewing, aquariums, or beverage production
