Filter Valves
About this product
Compact structure, light weight, standard products meet various voltages 85~265V AC, 1Ph or 24V DC, weatherproof housing, protection grade IP67
With manual switch, you can manually open and close the valve by pressing the button and turning the handle.
Built-in 4 limit switches and upper cover anti-loosening bolt design
Mechanical continuous position indication switch position LED indicator.
Product parameters:

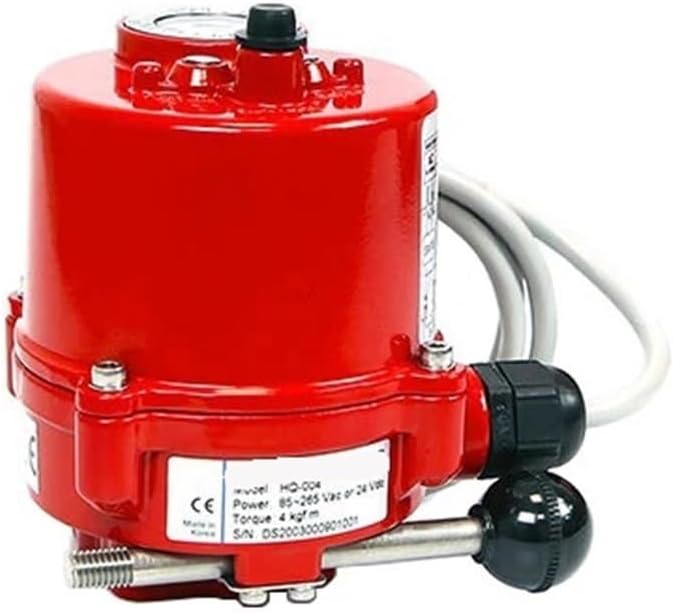

Model: HQ-004
Power supply rated current (A): 220V AC (0.1A), 110V AC (0.1A), 24V DC (0.5A)
Maximum output torque: 3kgf.m (29.4 NM)
Operation time: 7 seconds
Angle: 90°
Installation data:
Mounting flange hole: ISO5211 (F03/F04/F05)
Drive shaft: 11mm
Load rate IEC34-1: S4 70%
Handwheel rotation angle: 8°
