Features:

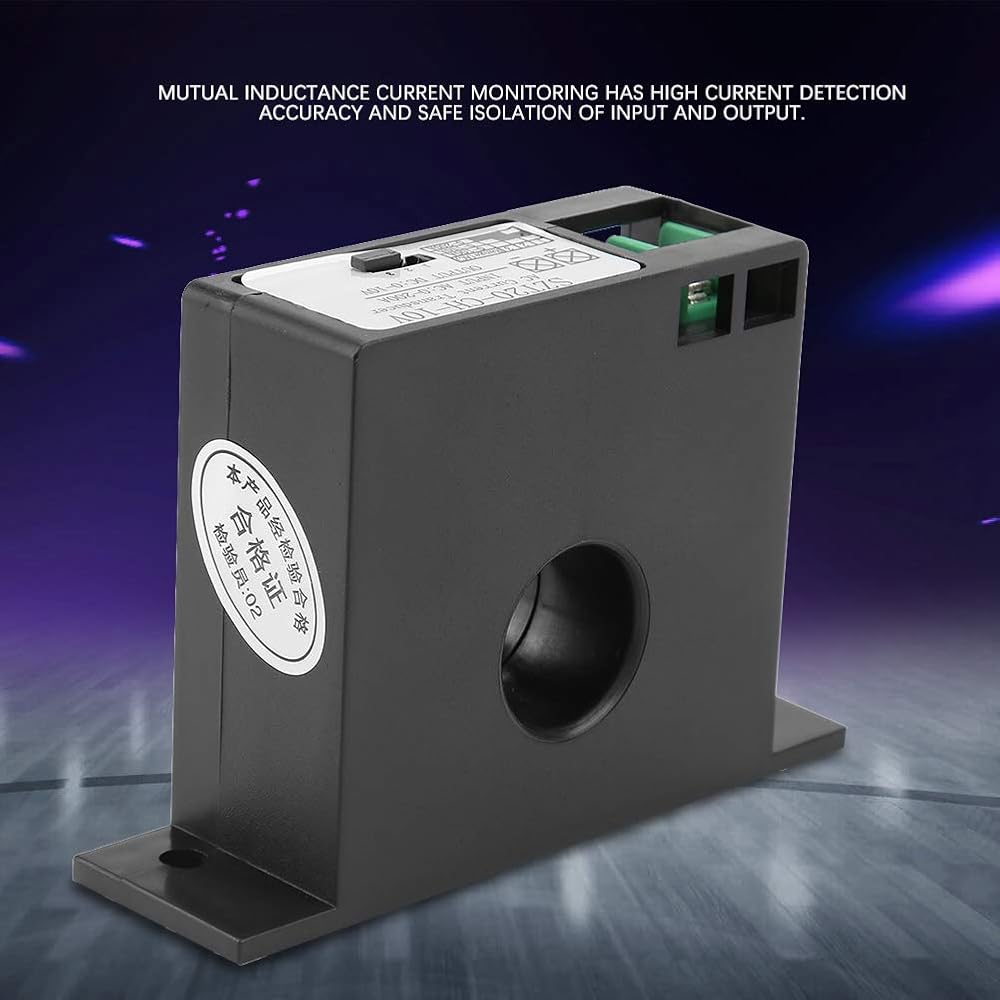

1. Mutual inductance current monitoring has high current detection accuracy and safe isolation of input and output.
2. Self-powered, no external power supply required.
3. Measured current AC 0-100/150/200A, output signal DC 0-10V.
4. Straight-through structure design, isolation withstand voltage up to 2000V.
5. Hysteresis is less than 1% and can be used under strong conditions.
6. The outer casing is made of self-extinguishing material ABS.
7. Suitable for AC current measurement and monitoring, AC motor overload protection, electronic switch of automatic control system and so on.

Specification:

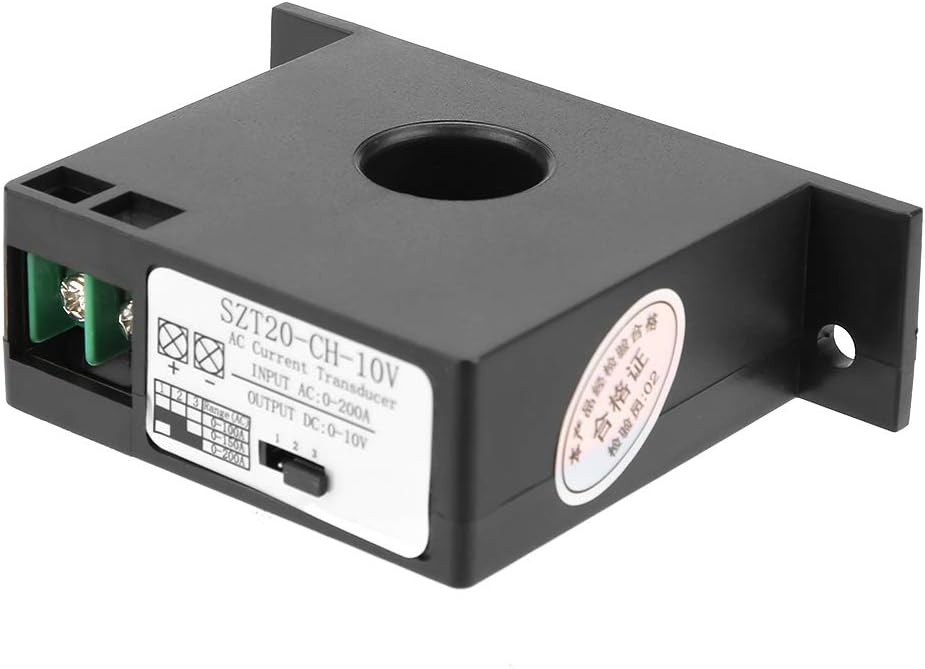

Model: SZT20--10V
Supply power: Not required
Output type: 0-10V DC
Input straight-through current: AC 0-100/150/200A
Switch on minimum: 0.5±0.2A
Maximum overload of straight-through current: 200%
Accuracy: ±1%
Power consumption: 1W
Leakage current: 1mA
Hysteresis: 1%
Linearity: 10%-100%
Straight-through wire diameter: 0.35-20mm
Response time: 200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working : -20~60℃, 5-95%RH

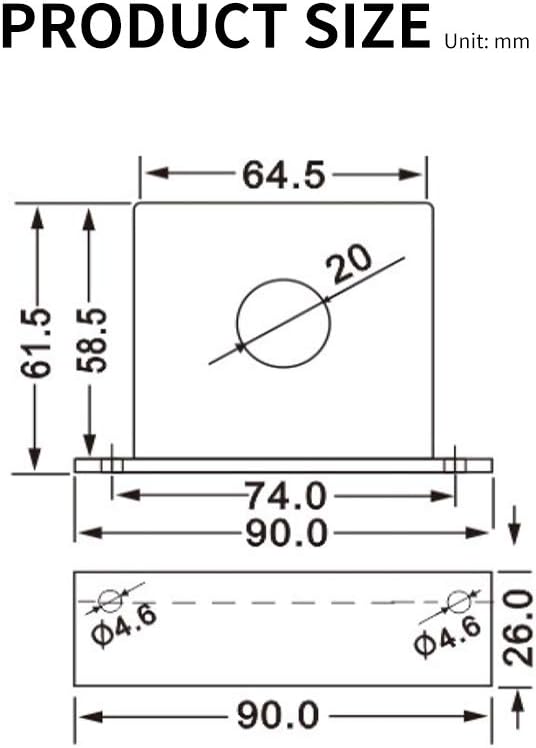

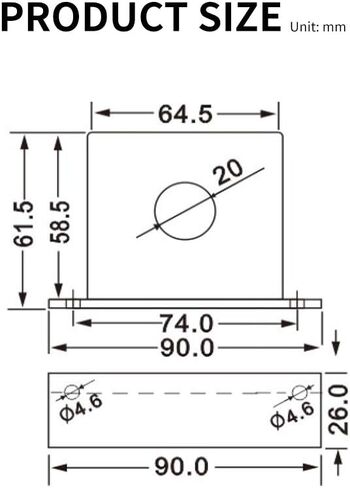

Dimensions: 61.5*90*26mm / 2.4*3.5*1.0in
Hole diameter: 20mm / 0.8in
Package weight: Approx. 109g/3.8oz

Package list:
1 * AC Current Transmitter
