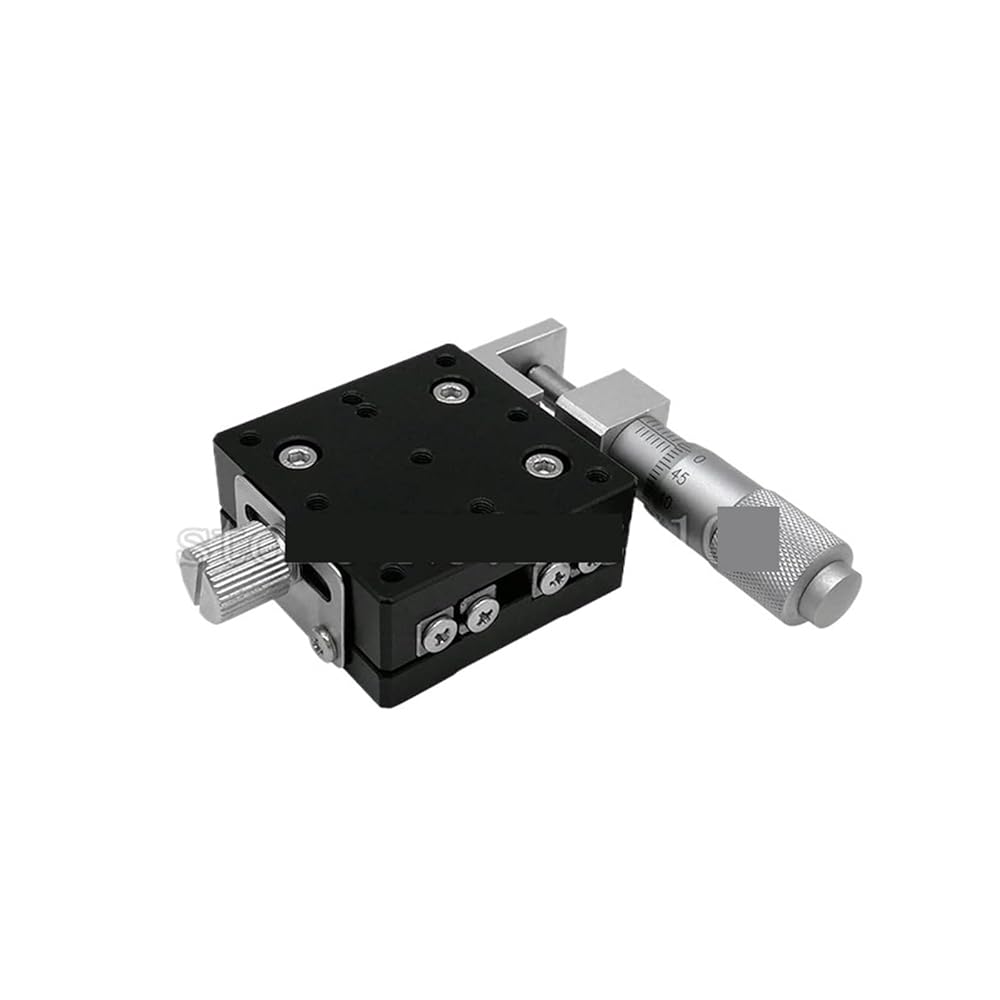

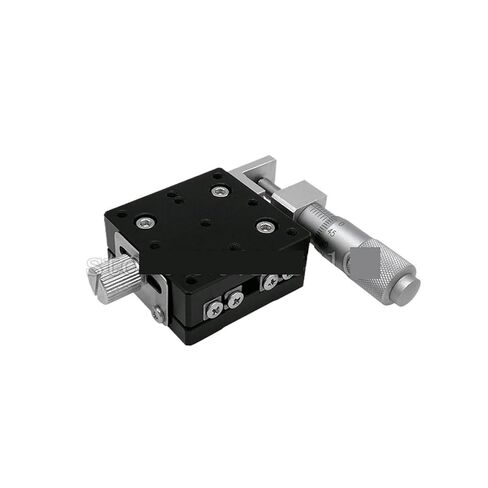

Cross Roller Guides
describe:
1. Cross roller guide rails are used to achieve high-precision and smooth movement
2. The main material is aluminum, which is light and suitable for being built into other equipment
scope:
1. Moving direction: X-axis direction
2. Body material: aluminum alloy (black anodized)
3. Drive: Differential head
4. Table size: 40*40mm
5. Table thickness: 18mm
6. Stroke: ±6.5mm
7. Load: 29.4N (3kgf)
8.Minimum scale: 0.01mm
9. Movement parallelism: 0.01mm/13mm
10. Parallelism: 0.02mm
11.Weight: 0.14kg
