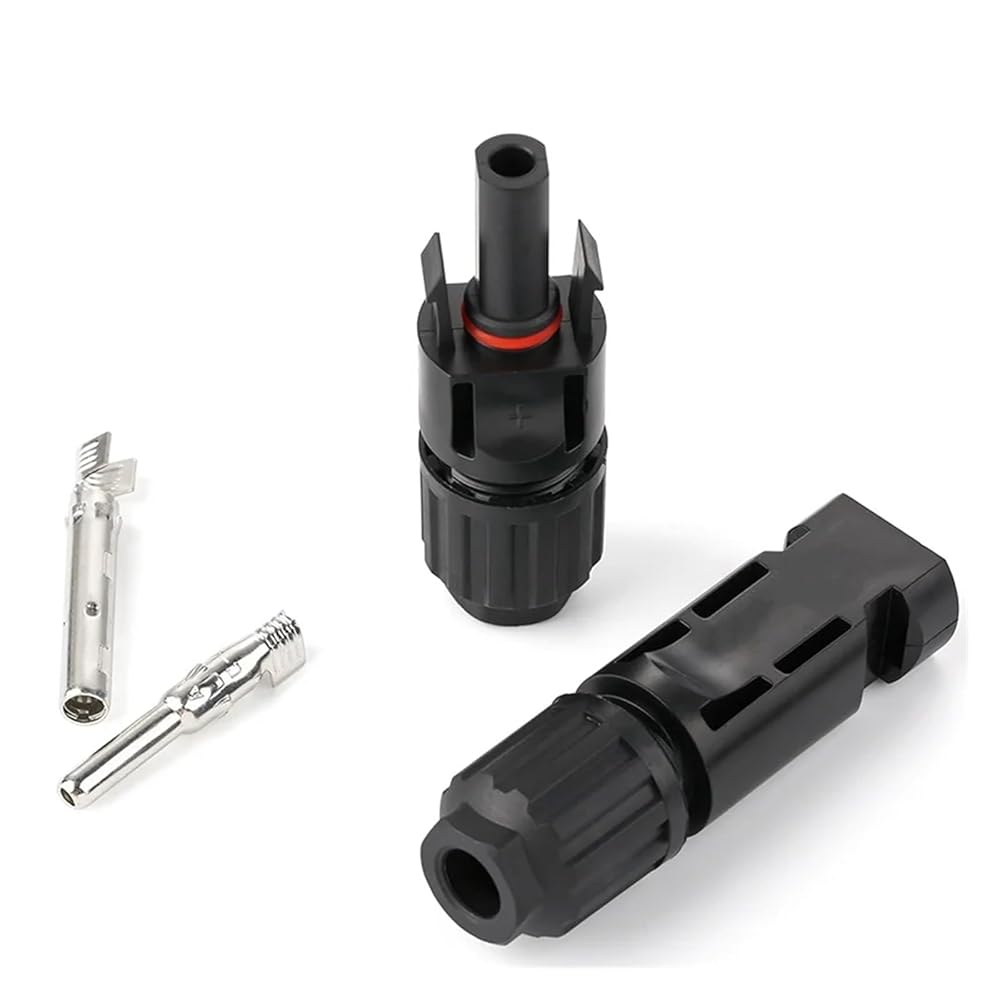

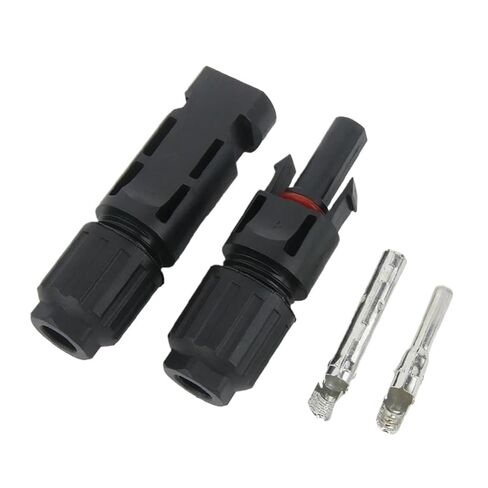

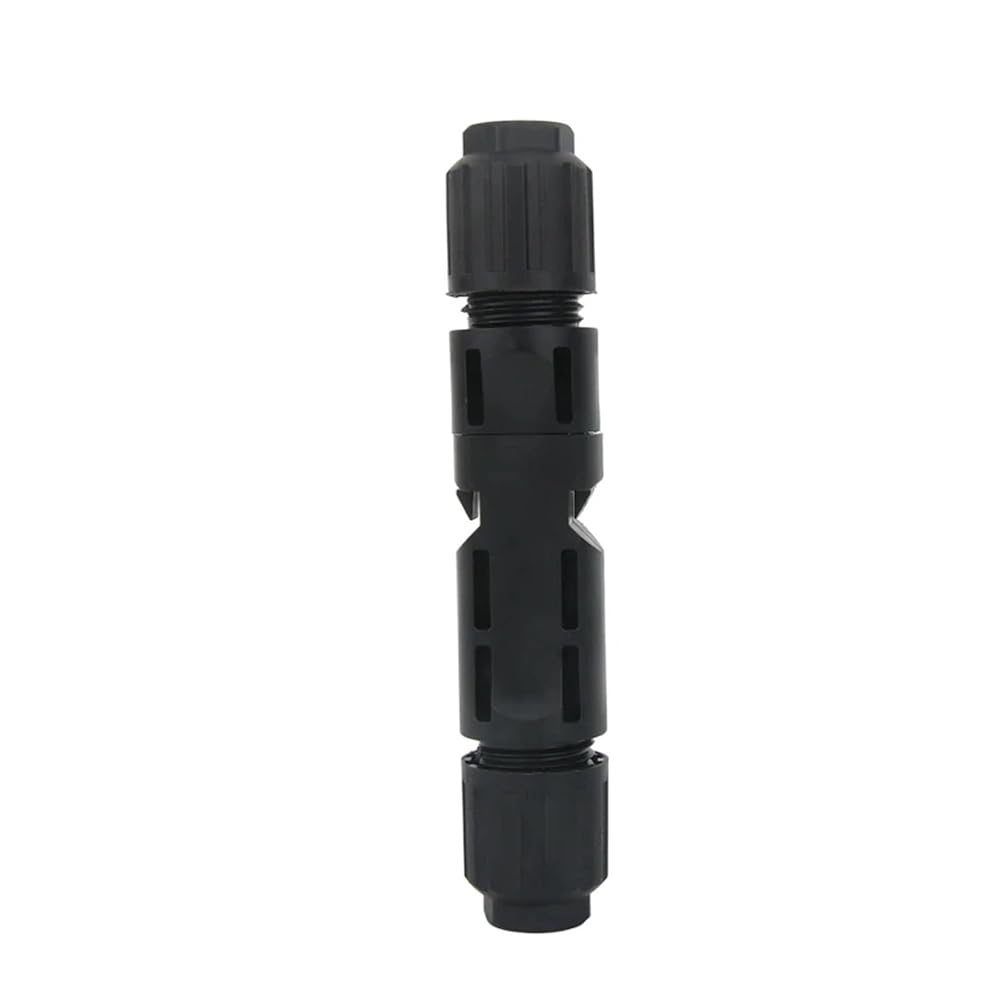

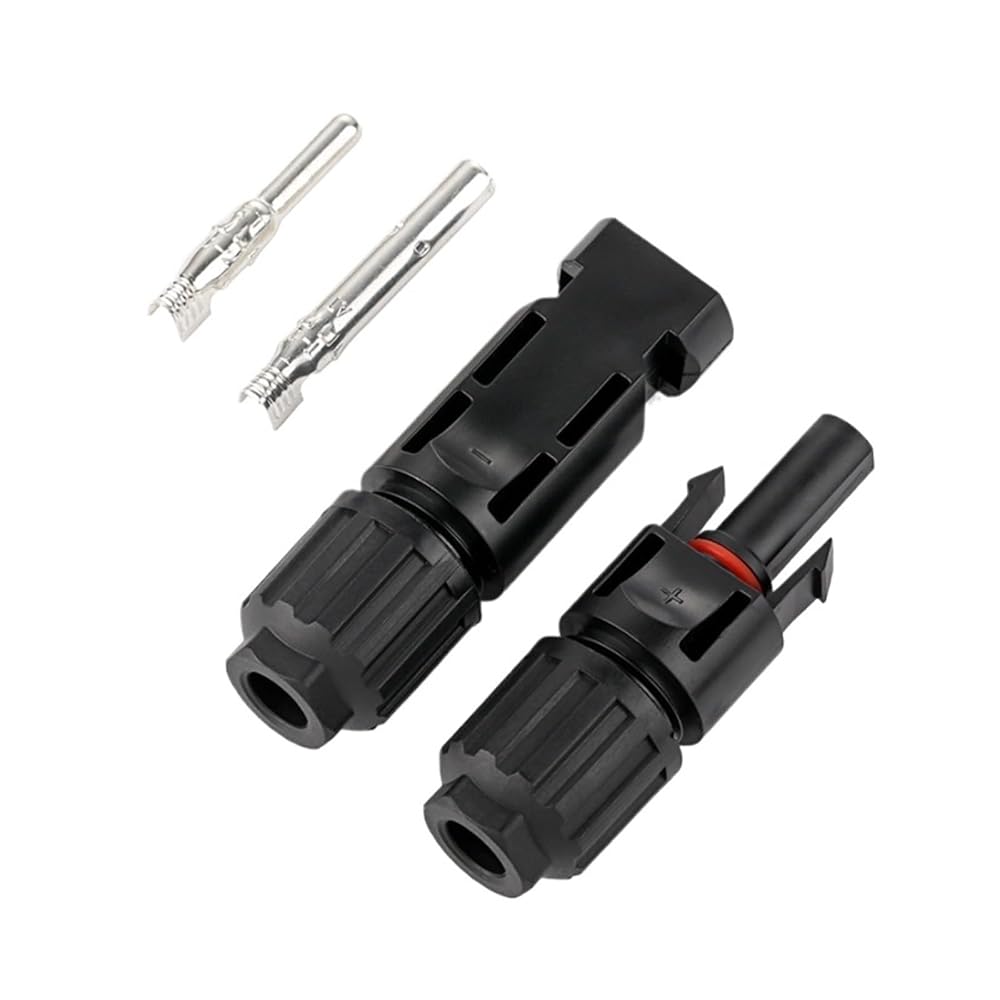

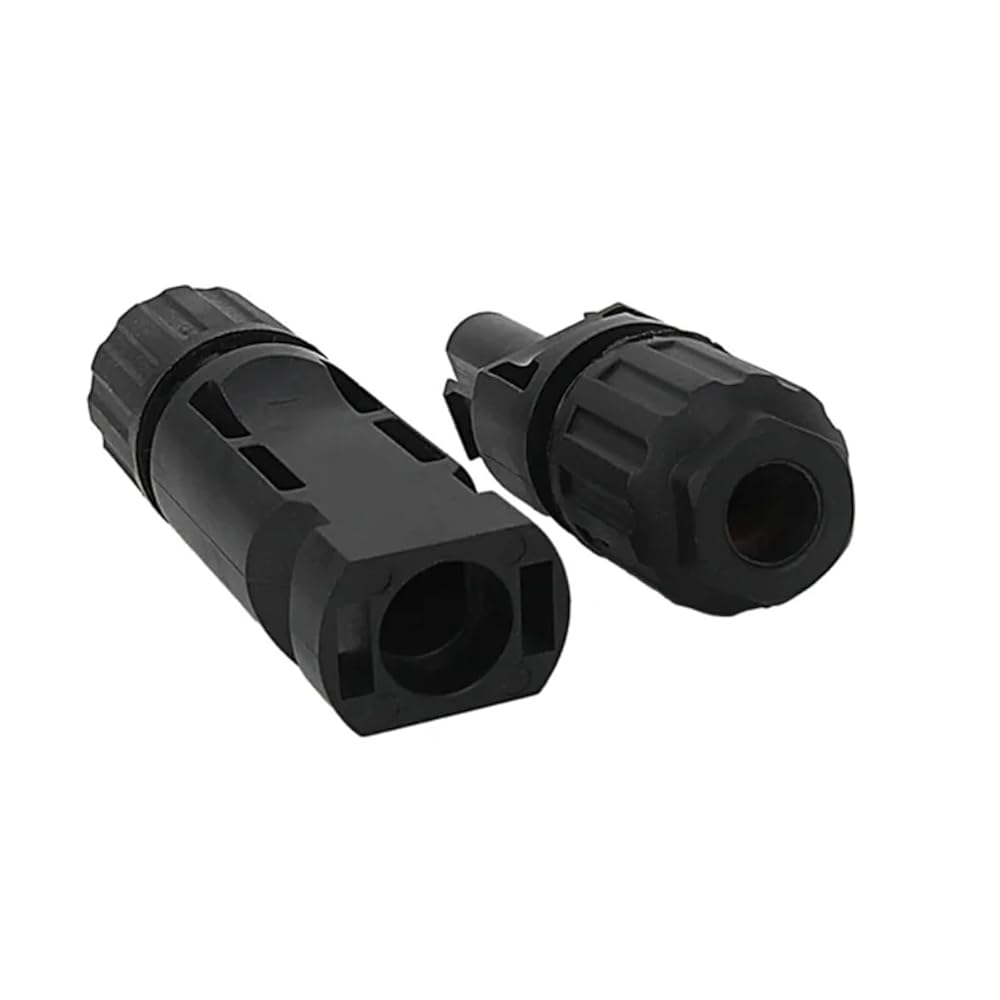

5 Pair Male/Female Connectors5 pairs solar panel cable connectors (Compatible with connector) (5pcs connector Male and 5pcs connector Female).

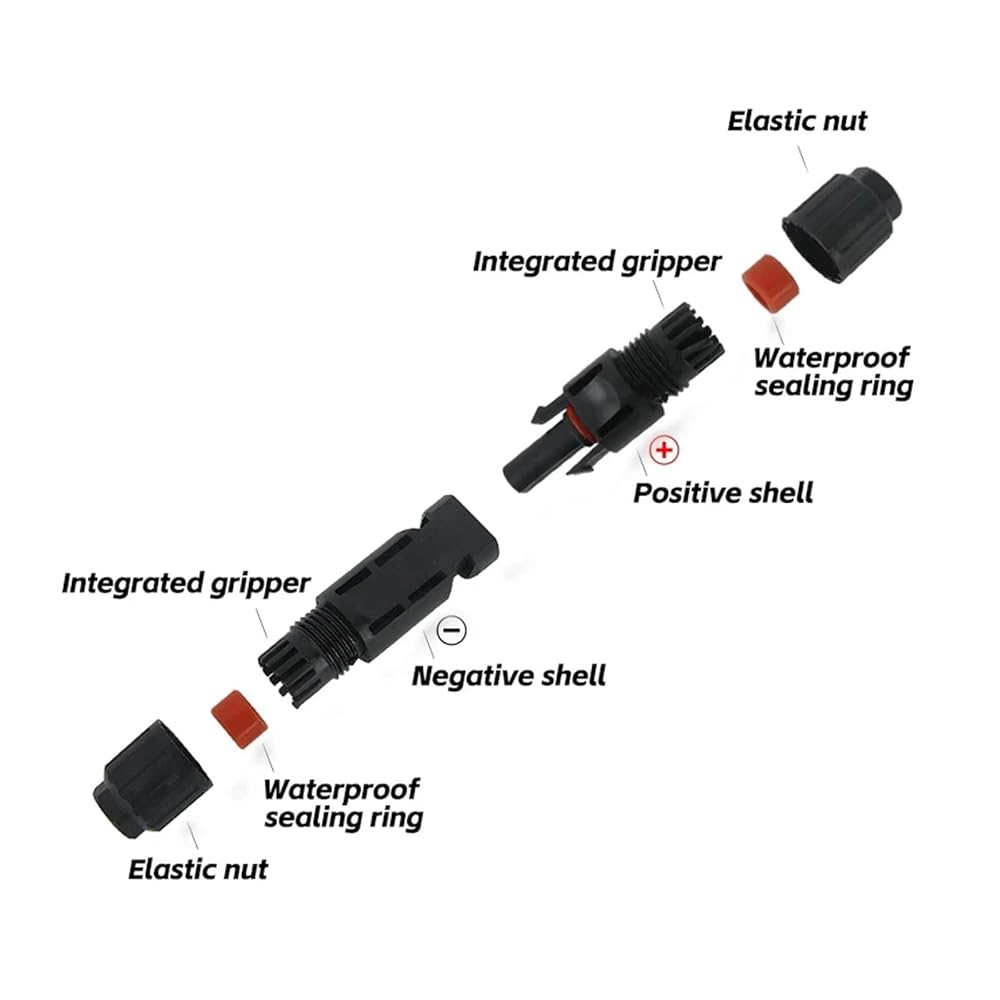

MaterialWATERPROOF RING on connection is perfect to seal out water and dust to prevent corrosion, PPO INSULATION MATERIAL with excellent aging resistance and UV endurance, survived rain, high force winds and snow for more than 20 years!
Widely Compatible With Solar CableCompatible with PV cables with different insulation diameters (2.5m--6m).
Easy installingQuick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
IP67 Professional WaterproofGood waterproof performance for outdoors usage.
Rated current: 30A (2.5m--6m)
Rated voltage: 1000V DC
Connector contact resistance:0.5m
Degree of waterproof: IP67
Flammability rating: UL94-V0
Safety: Class II
Suitable cable: 2.5m--6m( include AWG13,AWG12, AWG11,AWG10 )
Adapter Wire: OD 5mm-7mm
Connector conductor material: copper, Tin
Connector Insulation material: PPO/PPE
Insertion force: less or equal to 50N
Withdrawal force: over or equal to 50N
Operating temperature range: -40- +85
Connection: Clamp
Package include：5x male connectors，5x female connectors
5 pairs Solar Connector Pins (male &female
Model Number : solar connector 5pairs
Type : Terminals
color : black
Usage : solar
Suitable cable cross sections : 2.5mm sq6.0mm sq
Contact material : Copper,tin plated
