Clutch
Item:DLD6-5A

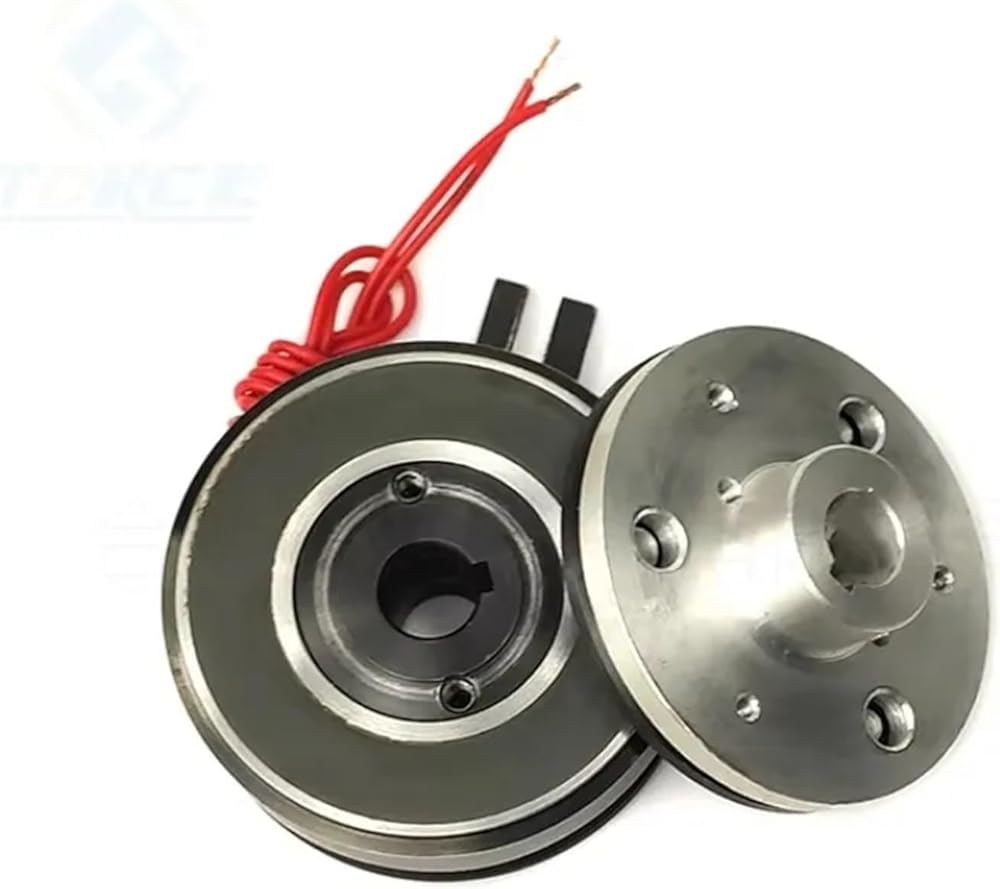

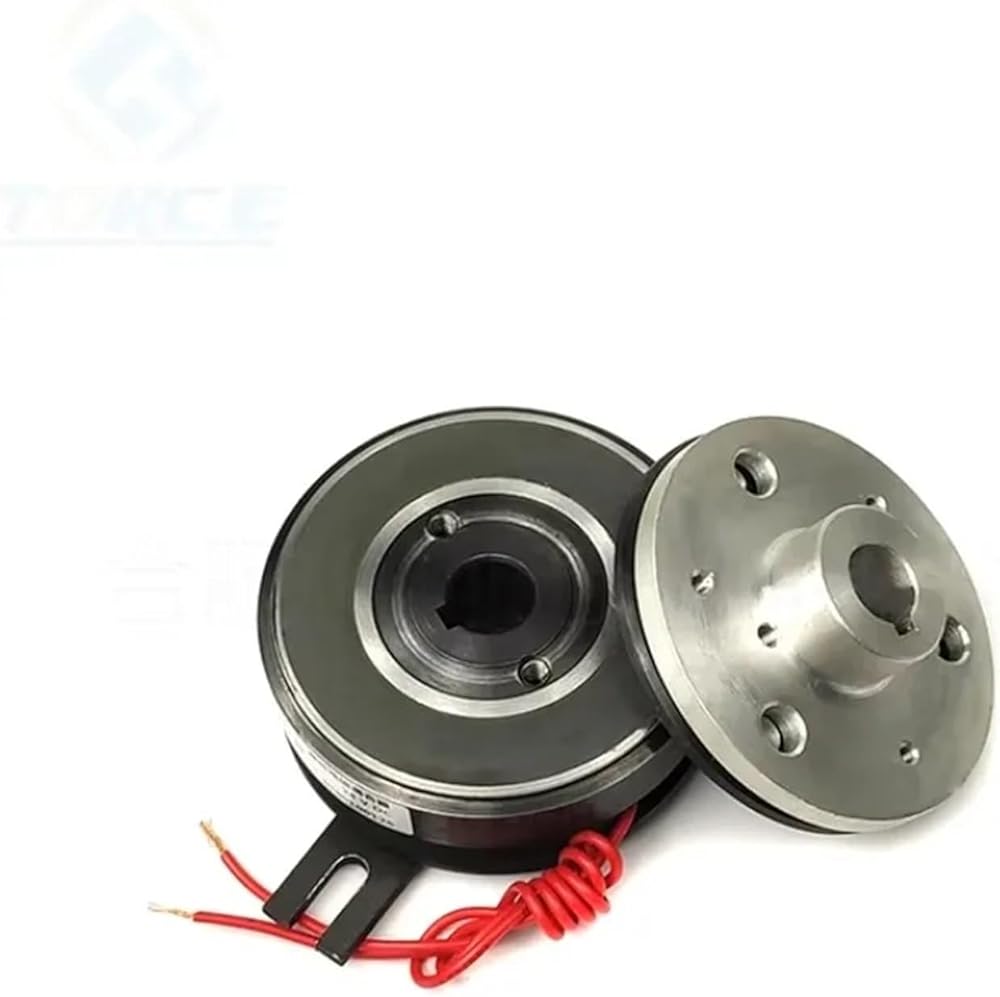

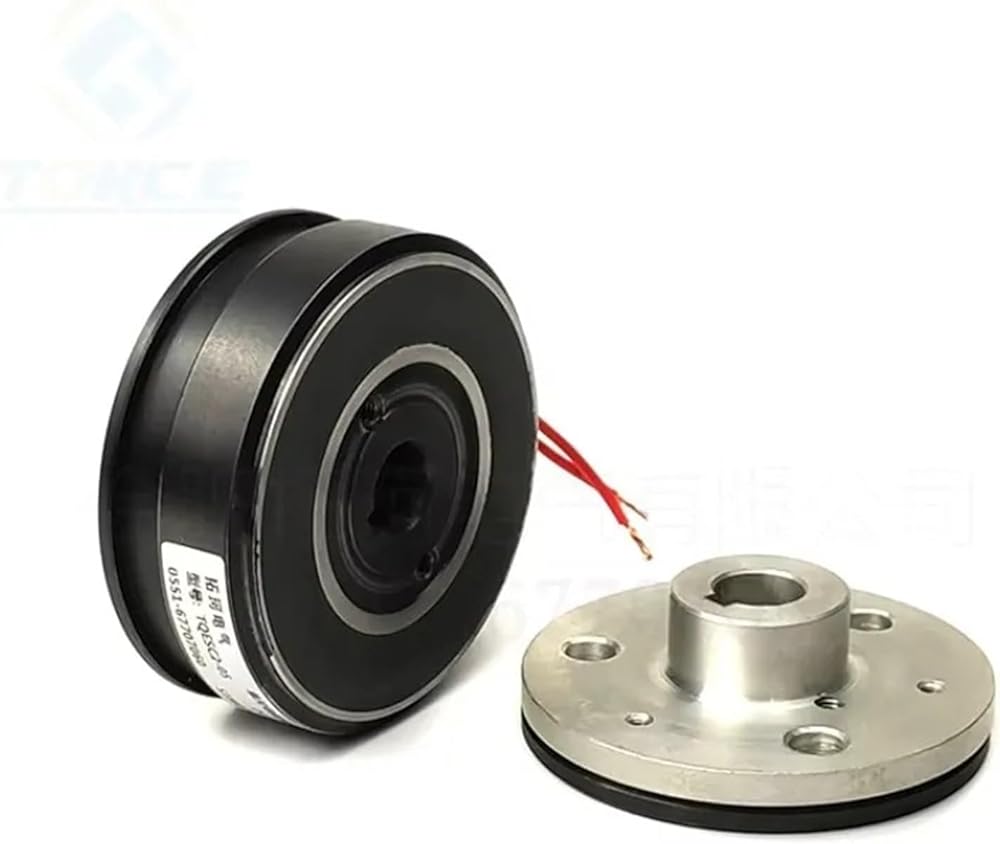

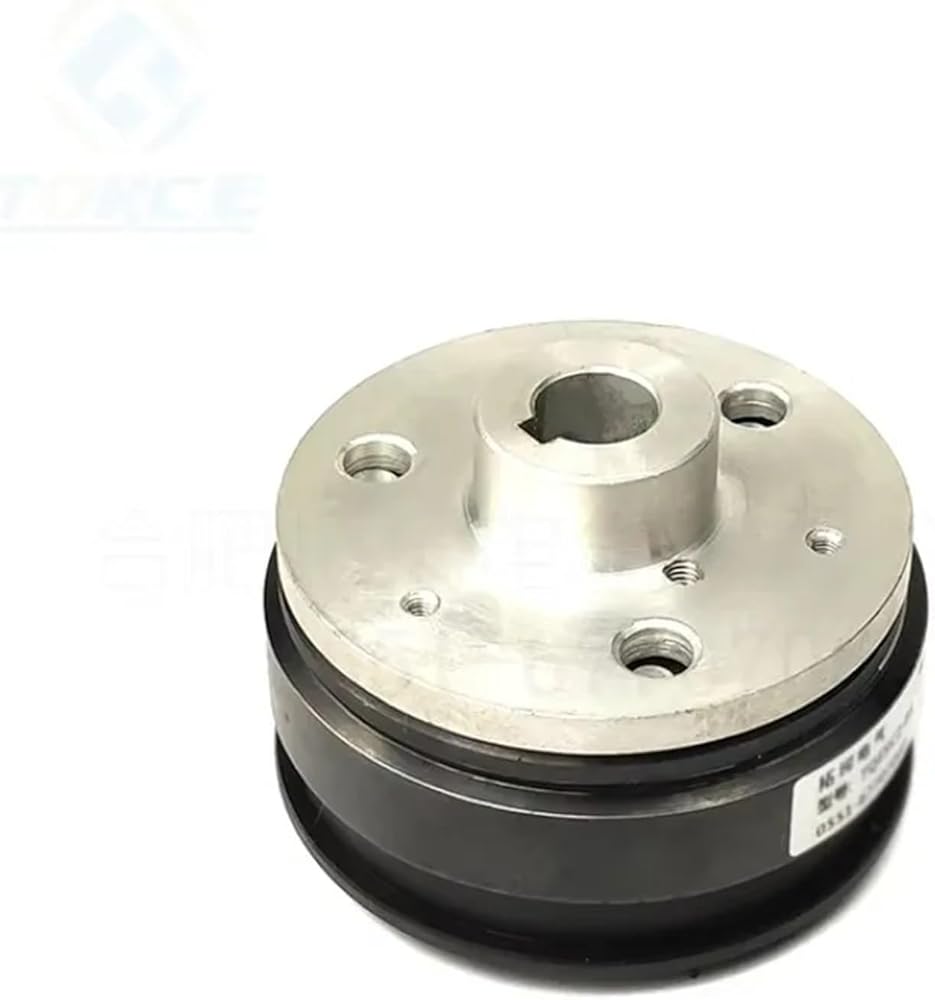

DLD6-5A/24V/5Nm/12W Single piece dry energized electromagnetic clutch small plate shaft installation
Size:67.5*12mm
Outer diameter 67.5mm/shaft bore 12mm/height 45mm/voltage is 24VDC
If you have any question,please let us know,many thanks!
model DLD6-5
Outer diameter 67/shaft diameter 12
Click to purchase
model DLD6-5A
Outer diameter 67/shaft diameter 12
Click to purchase
model DLD6-5B
Outer diameter 67/shaft diameter 12
Click to purchase
model DLD6-10
Outer diameter 85/shaft diameter 15
Click to purchase
model DLD6-10A
Outer diameter 85/shaft diameter 15
Click to purchase
model DLD6-10B
Outer diameter 85/shaft diameter 15
Click to purchase
model DLD6-20
Outer diameter 106/shaft diameter 20
Click to purchase
model DLD6-20A
Outer diameter 106/shaft diameter 20
Click to purchase
model DLD6-20B
Outer diameter 106/shaft diameter 20
Click to purchase
model DLD6-40
Outer diameter 133/shaft diameter 25&30
Click to purchase
model DLD640A
Outer diameter 133shaft diameter 2530
Click to purchase
model DLD640B
Outer diameter 133shaft diameter 25
Click to purchase
model DLD680
Outer diameter 169shaft diameter 3040
Click to purchase
model DLD680A
Outer diameter 169shaft diameter 3040
Click to purchase
model DLD680B
Outer diameter 169shaft diameter 30
Click to purchase
model DLD6160
Outer diameter 210shaft diameter 4050
Click to purchase
model DLD6160A
Outer diameter 210shaft diameter 4050
Click to purchase
model DLD6160B
Outer diameter 210shaft diameter 40
Click to purchase
model DLD6320
Outer diameter 275shaft diameter 5060
Click to purchase
model DLD6320A
Outer diameter 275shaft diameter 5060
Click to purchase
model DLD6320B
Outer diameter 275shaft diameter 5060
Click to purchase
Accessories such as coil magnetic yoke and armature iron
Click to purchase
purpose
Dry single plate electromagnetic clutch mainly consists of magnetic yoke armature spring plate rotor flange, etc. The magnetic yoke coil is energized to generate a magnetic field, which attracts the armature and generates frictional , causing the driven part to engage or brake, and is reset with a specially formed spring plate. The product has a simple structure, short braking delay time, and high braking . Suitable for situations in mechanical transmission systems that require timed coupling or brake positioning requirements. Like precision machine tools. Clutch and positioning in transmission systems of printing machinery, packaging machinery, experimental equipment, and office machinery.
Usage conditions
This series of clutches can work reliably under the following conditions
1. Working under dry conditions;
2. There is no explosion hazard in the surrounding medium, and there are no gases or conductive dust that are sufficient to corrode metals and damage insulation;
3. The working environment temperature is -40~+150 , and the surface of the friction plate and armature must not have oil stains and must be kept clean;
4. The insulation level is B, the protection level is IP23, and the voltage fluctuation range does not exceed+5% and -15%;
5. The working air gap shall not exceed the maximum working air gap, and the main and driven sides of the brake shall be fixed, without axial displacement;
6. Installation method: Install horizontally in the axial direction and vertically in the axial direction. The installation of the clutch must ensure that the coaxiality is not greater than 0.1mm;
7. Working mode: intermittent work, continuous work.
Metal processing: extrusion machines, punching machines, welding machines, pipe making machinery, rolling machines, forging machines
Mechanical machine tools: lathes, milling machines, automatic CNC machines, specialized machines, etc
Handling machinery: cranes, conveyors, winches, etc
Textile equipment: cotton, linen and wool initial processing equipment, spinning machines, weaving equipment, printing and dyeing machinery, etc
Leather processing: embossing machine, layering machine, last carving machine, cutting machine, etc
Paper machinery: bag making machine, cardboard box machine, cutting machine, paper copying machine, binding machine, folding machine, sorting machine, etc
Agricultural machinery: edible oil processing equipment, slaughtering and meat initial processing equipment, feed processing equipment, grain processing equipment, etc
Food processing: fruit and vegetable processing equipment, beverage production equipment, meat product processing equipment, cake making machinery, bottling equipment, noodle making machinery, etc
Injection molding machinery: plastic rolling machines, hollow blow molding machines, other plastic machinery, etc
Packaging equipment: filling machinery, filling machinery, sealing machinery, wrapping machinery, packaging machines, bundling machines, packaging machines, bundling machinery, etc
Printing machinery: rotary machines, feed in printing machines, etc
Office machinery: electronic copying machines, fax machines, printers, copper plate counting machines, etc
Other machinery: reducers, physical and chemical machinery, resin processing machinery, etc
==========
High-concerned chemical : None
Voltage : 24VDC
Model Number : DLD6-5A
Origin : Mainland
Certification : ,
Place of Origin : Anhui,
Condition :
Core Components : Coil
Machinery Test Report : Provided
Marketing Type : Product 2024
Video outgoing-inspection : Provided
Weight (KG) : 1.5
Product name : DLD6-5A
Voltage : 24V
Power : 12W
Size : 67.5*12mm
Maximum speed : 5000
: 5N.M
Weight : 1.5kg
external diameter : 67.5mm
Shaft diameter : 12mm
Type : Electromagnetic clutch
