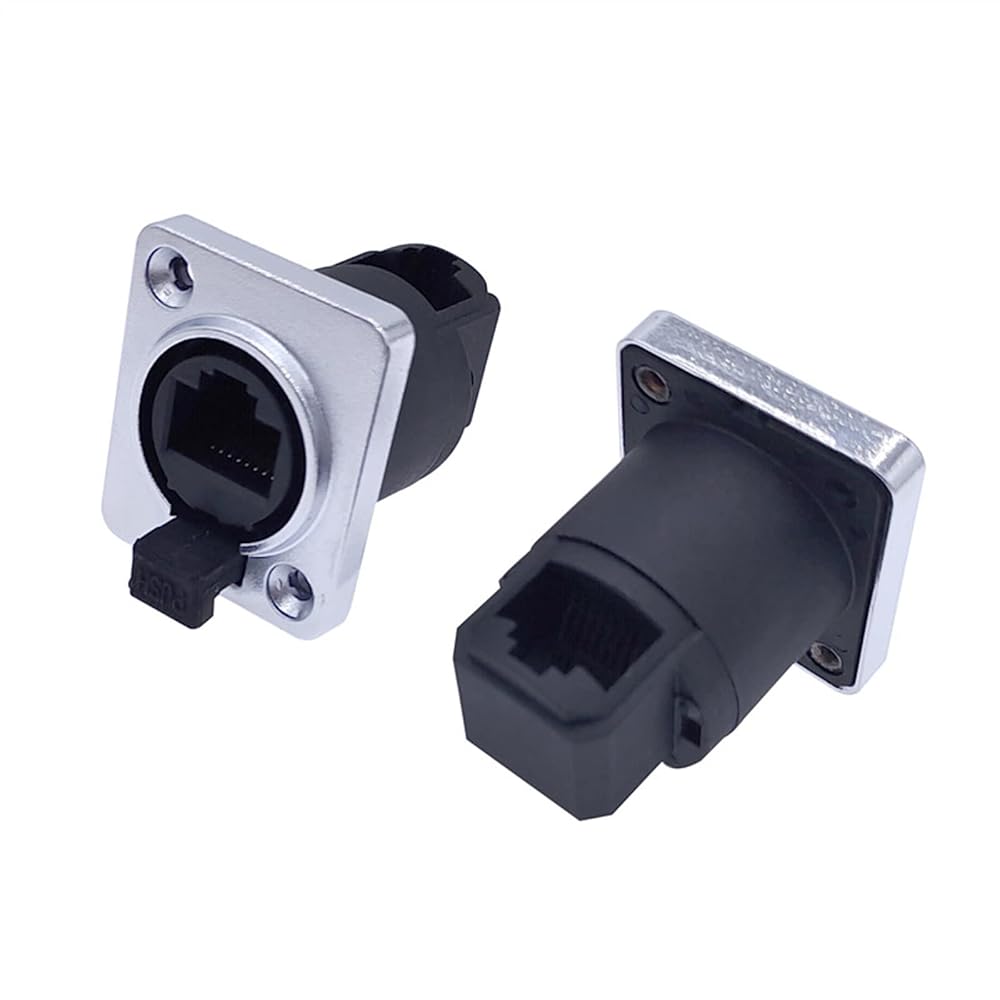

RJ45 Network Connector With Rubber Cover IP65 8p8c D Type Panel Mount Socket RJ45 Ethernet Connector 1Pcs
Specifications:
Connecting mode: Plug/unplug,
Protection level: IP65
Cable specification: 0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range: 5.5mm ~7mm
Contact diameter×Qty: 8
Current rating(A): 1.5A
Operating voltage(AC.V.rms): 500V
Withstand voltage(AC.V)1min: 2500V
Insulation resistance: >500M
Durability: 500 mating&unmating cycles
Temperature rating 40C80C
Method of connecting cable Solder
the combustion level UL94V0
Temperature rise 20A per contact at 30C 25A per contact at 40C 30A per contact at 50°C.
Material:
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloypearl hard chromium
Contact pin Copper alloygoldplated
Spring Stainless steel
Sealing Silica gel
Main characteristics
Sealed against and fluid IP65)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment - The smart grid
- Medical equipment - Server
- Solar energy equipment - Ship equipment
- Electric power equipment - Vehicle equipment
- Communications equipment
- Heavy machinery
