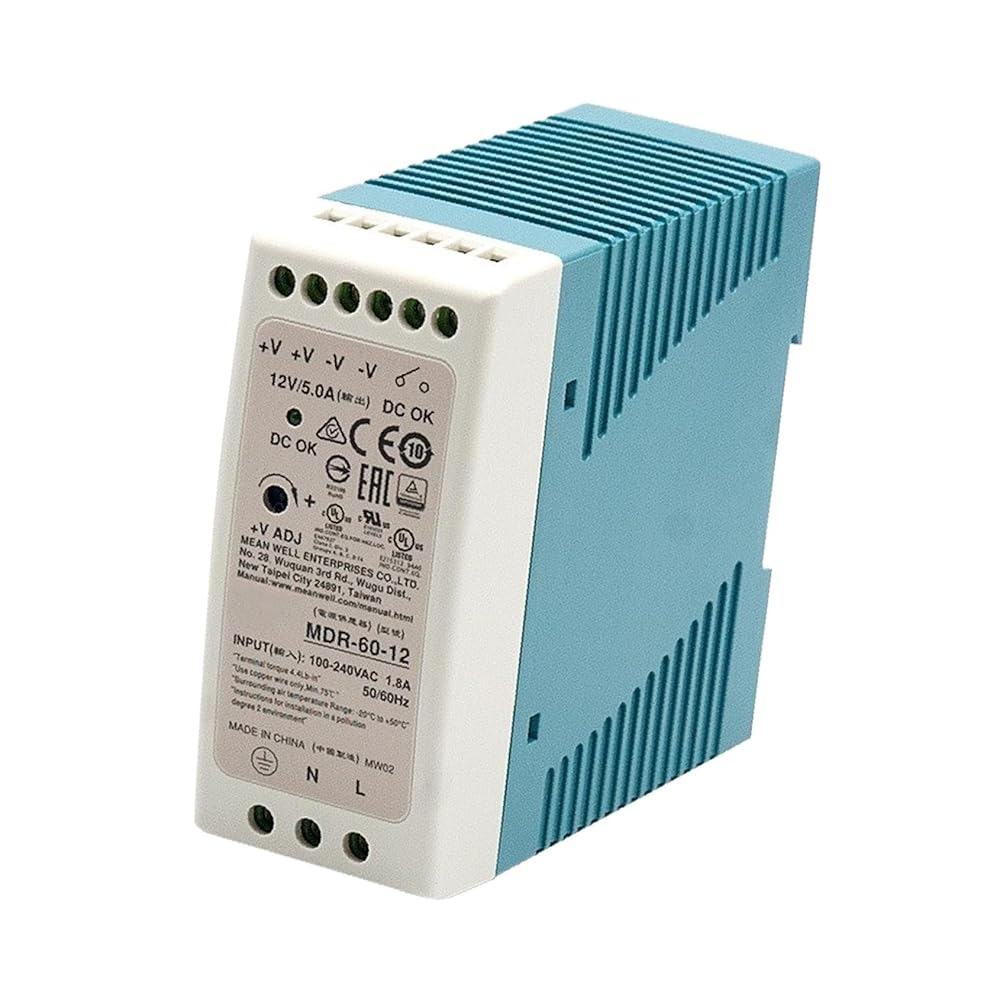

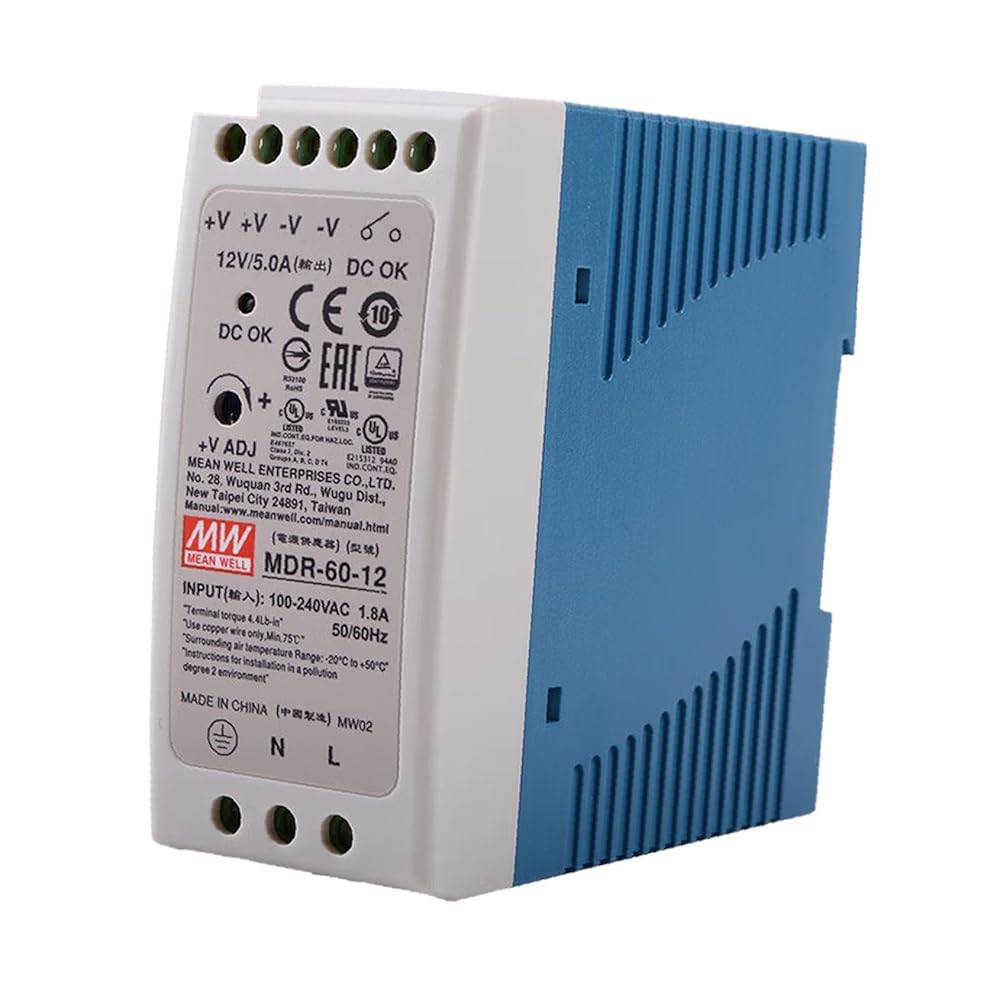

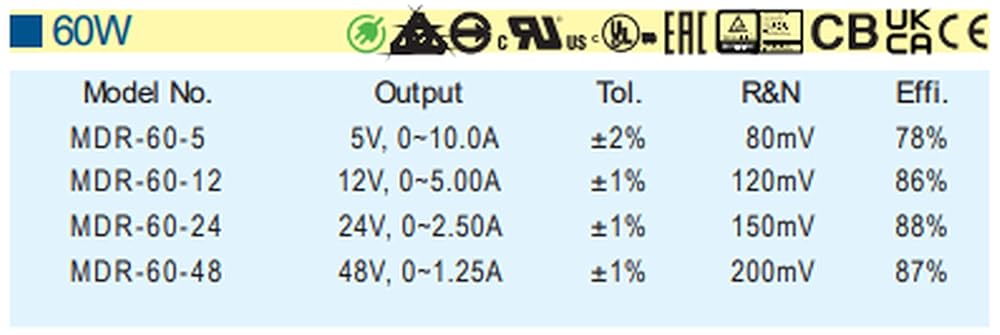

The MDR-60-12 is a high-performance 60W AC/DC switching power supply designed for demanding industrial environments. It converts 85-264VAC or 120-370VDC input into regulated 12V DC output (5A continuous, 0-5A adjustable range) with exceptional ±1.0% voltage accuracy. The advanced PWM control ensures ±1.0% line regulation (against input fluctuations) and ±1.0% load regulation (from 0-100% load changes), maintaining stable operation even with unstable grid power.

Key technical advantages include ultra-low 120mVp-p output ripple noise and 20ms holdup time at 115VAC input (full load), crucial for sensitive electronics. The 12-15V adjustable output range allows customized voltage settings through front-panel potentiometer. With 85% typical efficiency at 230VAC input, it significantly reduces heat generation compared to conventional models.

Protection features encompass over-voltage (OVP), short-circuit (SCP), and over-current (OCP) protections with auto-recovery function. The industrial-grade components ensure operation from -30°C to +70°C (derating required above +50°C) and 20-90% non-condensing humidity. The 4KV AC/2KV DC isolation voltage and double-layer PCB design enhance safety in high-noise environments.

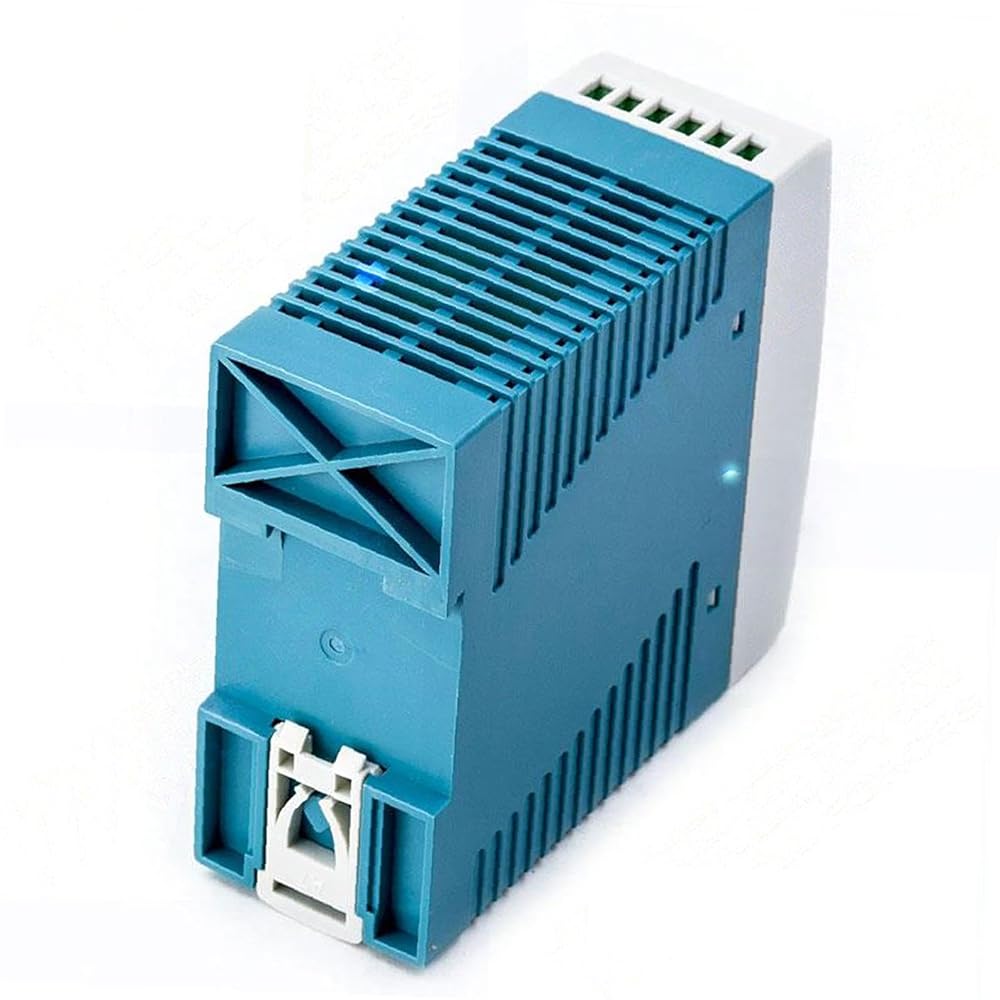

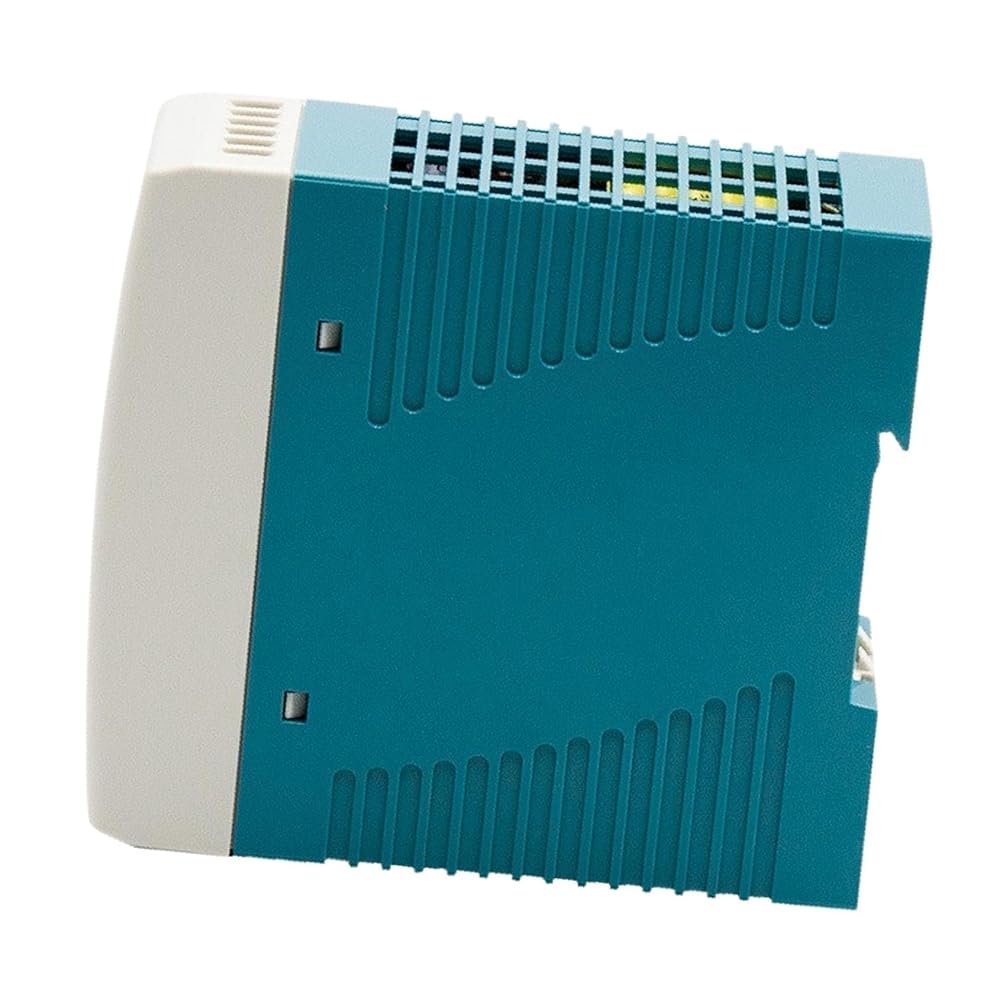

Installation flexibility is provided through compact dimensions (129*97*38mm) and multiple mounting options: DIN rail (TS35/7.5/15), wall-mount, or baseplate installation. The screw terminal block supports 12-16AWG wiring. Compliant with UL62368-1/EN61347 standards, it's ideal for factory automation, security systems, MED- devices, and renewable energy applications. Includes 3-year quality assurance and global technical support.
