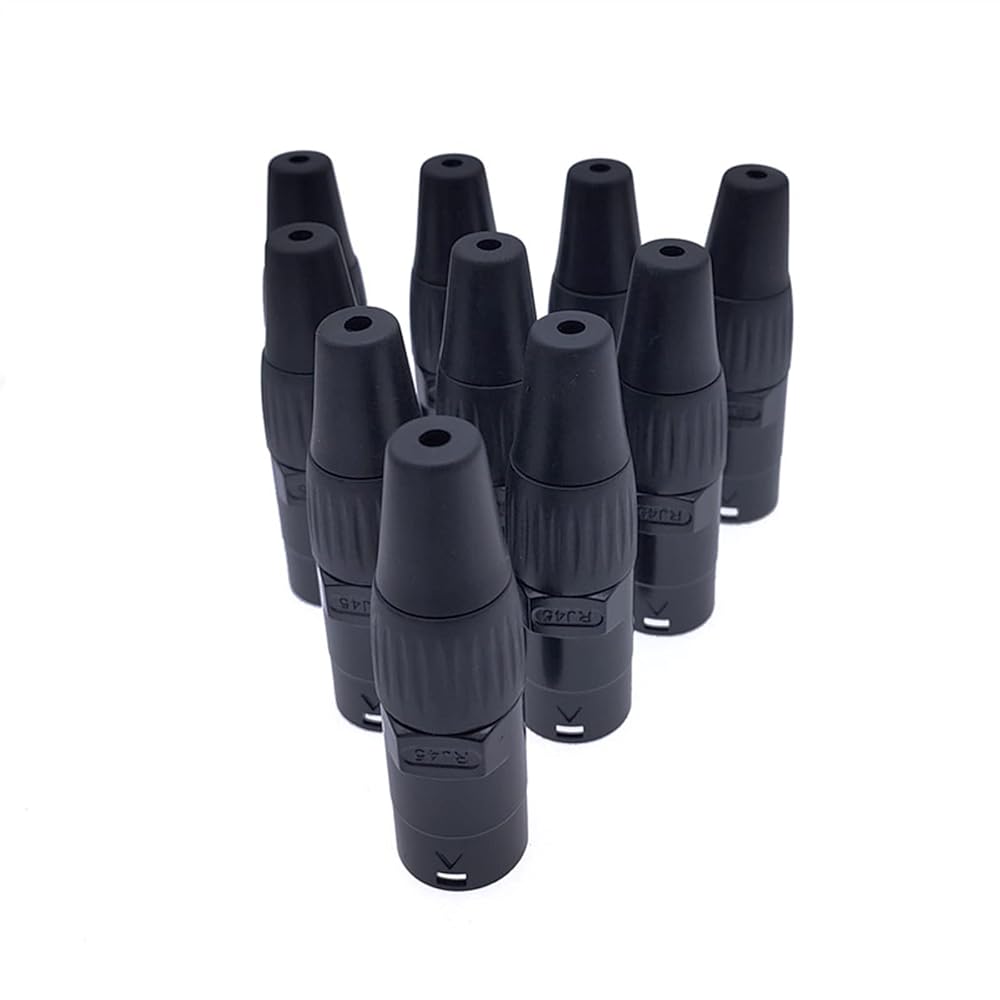

8p8c RJ45 Net Work Connector IP65 D Socket Panel Ethernet Connector 10Pcs
Connecting mode: Plug/unplug,
Protection level: IP45
Cable specification: 0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range: 5.5mm ~7mm
Contact diameter×Qty: 8
Current rating(A): 1.5A
Operating voltage(AC.V.rms): 500V
Withstand voltage(AC.V)1min: 2500V
Insulation resistance: >500M
Durability: 500 mating&unmating cycles
Temperature rating 40°C~80°C
Method of connecting cable: Solder
the combustion level: UL94-V0
Temperature rise: 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.
Material:
Shell&insulated parts High performance engineering plastics
Hardware metal Zinc alloy(pearl hard chromium)
Contact pin: Copper alloy(gold-plated)
Spring: Stainless steel
Sealing: Silica gel
Main characteristics:
- Sealed against and fluid (IP65)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out
Application industries:
- Stage equipment - The smart grid
- Medical equipment - Server
- Solar energy equipment - Ship equipment
- Electric power equipment - Vehicle equipment
- Communications equipment
- Heavy machinery
