Description:
LS155 is a versatile color haze meter featuring a full-spectrum LED light source and a spectral sensor. It is designed to measure the haze, transmittance, and color of various diffuse transmittance materials such as milky white, matte, frosted suaces, and transparent or semi-transparent materials. The device also displays the spectral transmittance curve. Its 7-inch color capacitive touchscreen offers an excellent user experience.
Specifications:
1. Illumination geometry: D/0°
2. Illumination light source: Full-spectrum LED light source
3. Spectral range: 400-700 nm
4. Spectral interval: 10 nm

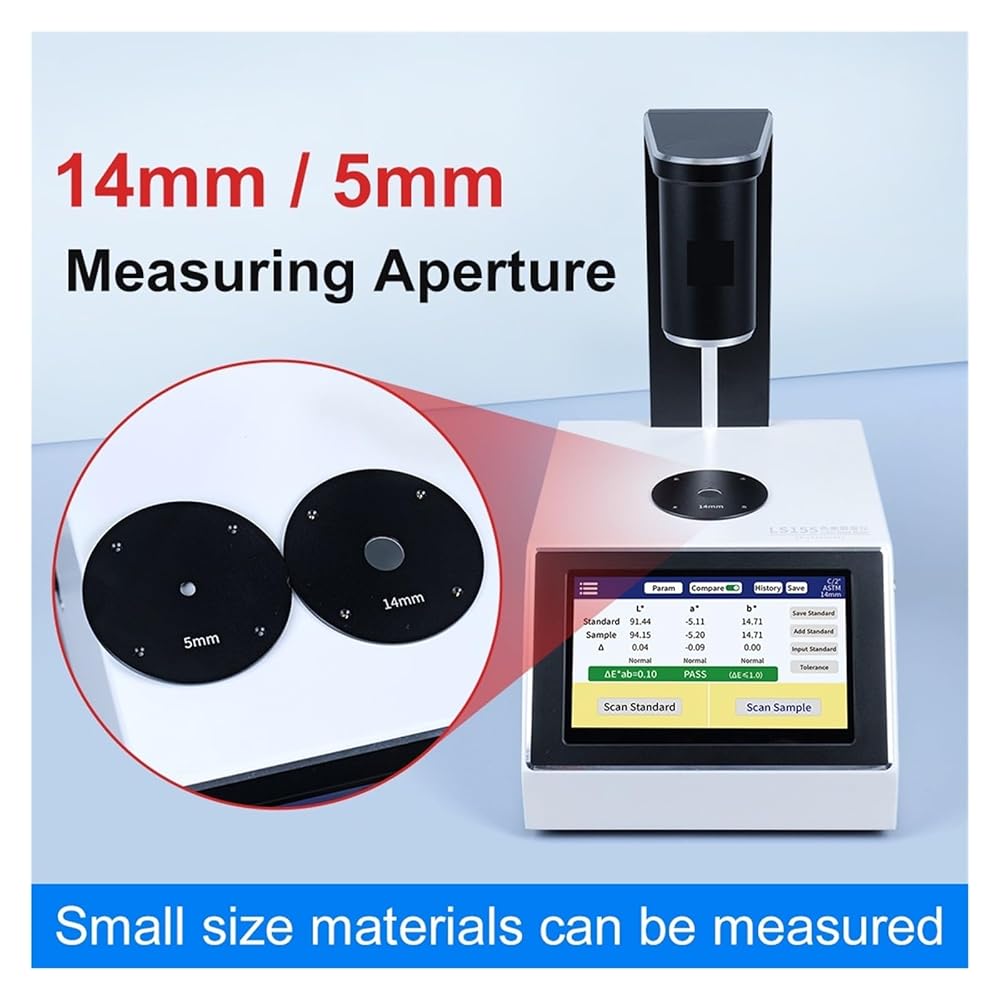

5. Measurement aperture: 5 mm/14 mm
6. Measurement conditions: D65 light source, field of view 10°; A light source, field of view 2°; Light source C, field of view 2°
7. Measurement time: about 3s

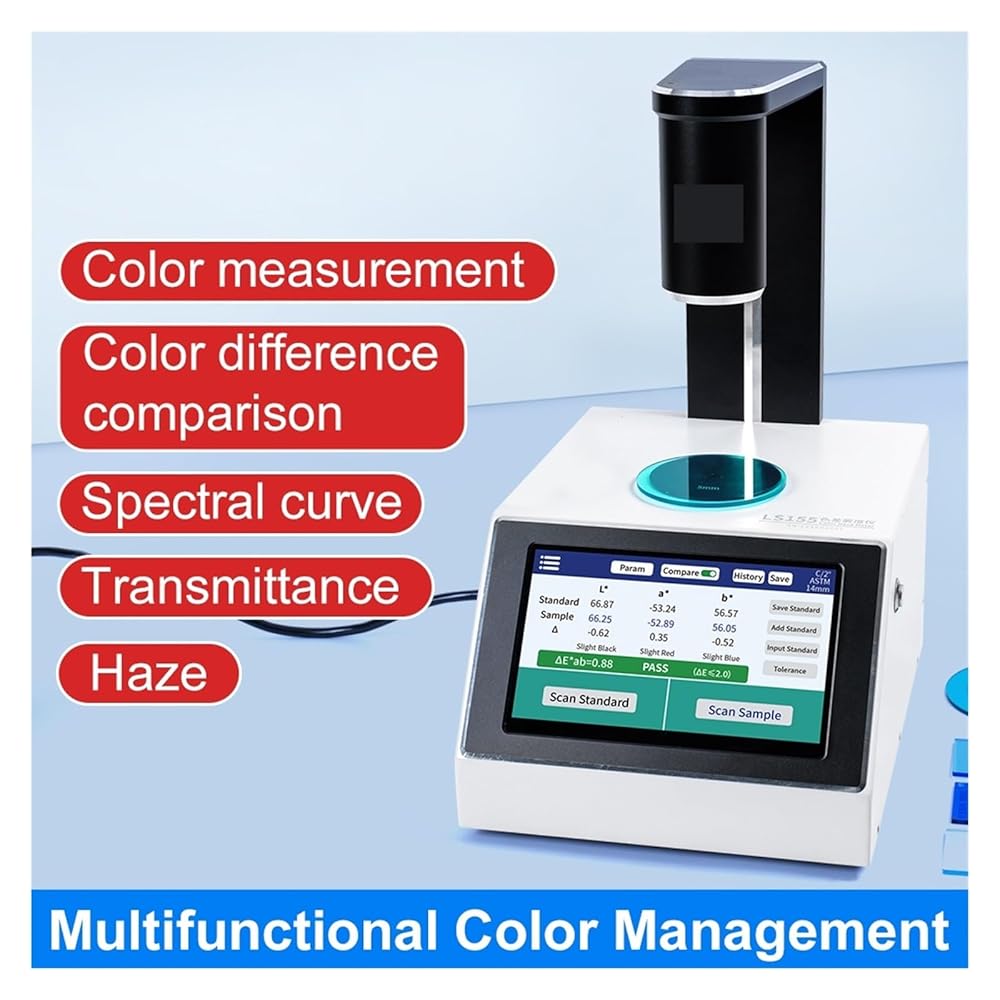

8. Measurement parameters: Haze, transmittance, CIE Lab, LCh, Yxy, spectral transmittance
9. Transmittance resolution: 0.01%
10. Transmittance accuracy: Better than ±1%
11. Transmittance repeatability: 0.05
12. Haze resolution: 0.01%
13. Haze accuracy: Better than ±2%
14. Haze repeatability: 0.03
15. Color repeatability: The standard deviation E*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard within a 3-second interval after calibration)
16. Power supply: 100-277V 0.4A 50/60Hz
17. Display: 7-inch 1024*600 IPS dot matrix color display
18. Language: Simplified Chinese, English
19. Data transmission: USB (Type-C)
20. Operating temperature range: 0~45°C, 0~85%RH (non-condensing)
21. Storage temperature range: -25~55°C, 0~85%RH (non-condensing)
22. Dimensions: 211mm*264mm*360mm
23. Weight: 5300g
Features:
6. Accurate enough to pass authorized metrology tests.
7. Supports vertical, horizontal, and liquid measurements.
8. Dual-aperture design (14 mm and 5 mm).
9. Includes standard A, C, and D65 illuminators.
10. PC software for online measurements, data export, and printing.
Wide Applications
Used in plastics, films, packaging, pharmaceuticals, s, and other industries.
Good Stability
Repeatability E*ab 0.03. Can pass authorized metrology institute tests.
7-inch Touchscreen
Equipped with a 7-inch touchscreen that offers excellent human-machine interaction for convenient operation.

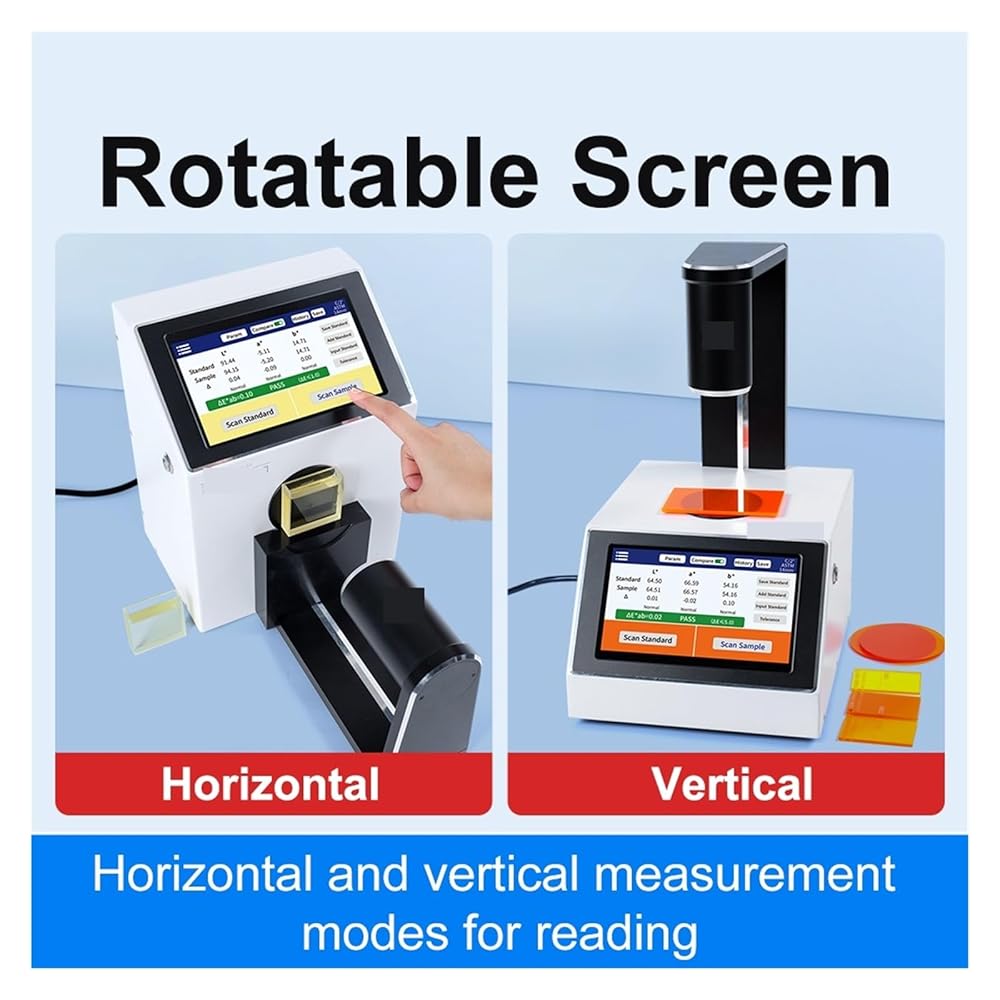

Two Measurement Methods
Includes a liquid measurement stand. With an open measurement area, the colorimeter can measure color/color difference vertically or horizontally. The display can rotate automatically for easy reading.
Assists with Color Mixing
The colorimeter provides color deviation indication to streamline your workflow.
Turbidity and Pt-Co Scale
Facilitates water quality management and quality assessment of liquid products.
Light Transmittance Spectral Curve Display
Clearly displays the transmittance of materials at different wavelengths.

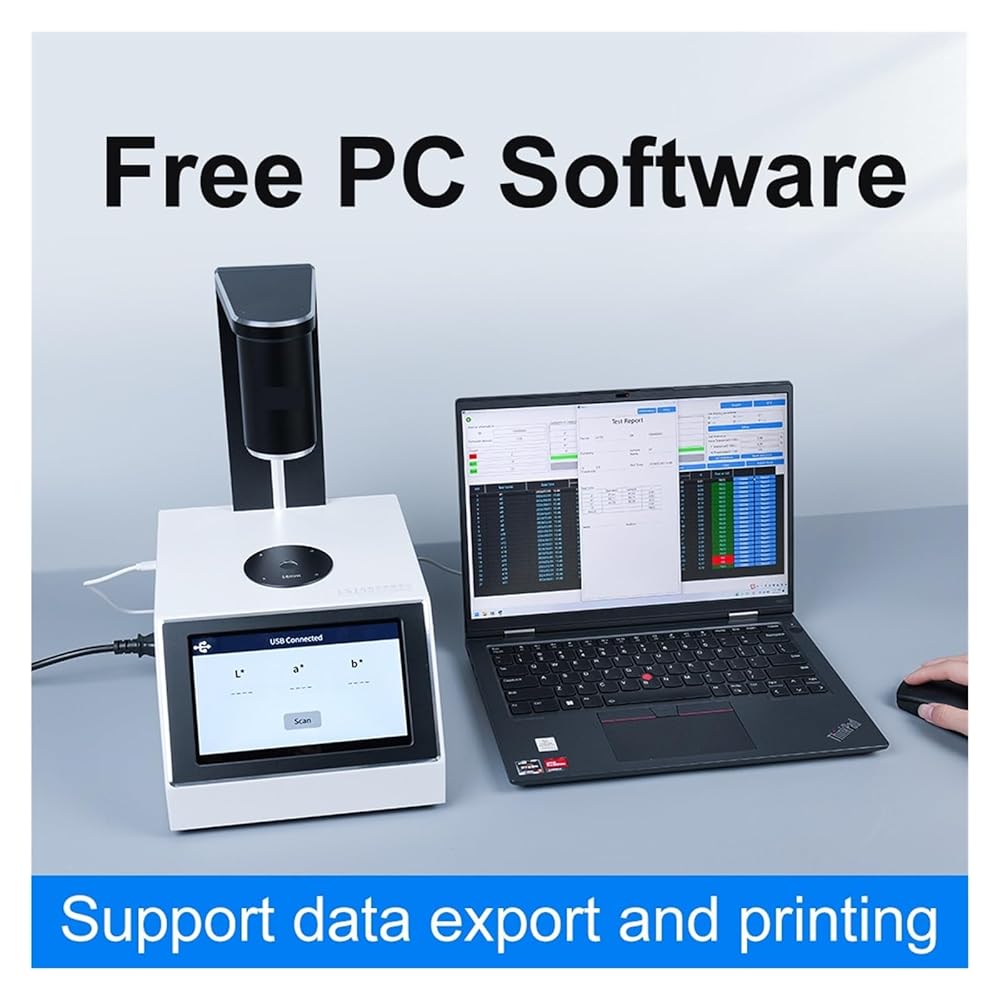

PC Software
Equipped with PC software for online measurements via USB connection, supporting data export and printing.
Unaffected by ambient light.
Ensures that measurement results are not affected by external ambient light.
1. Color Haze Meter * 1
2. USB Cable * 1
3. Power Cable * 1
4. 5mm Aperture Cover * 1
5. Screwdriver * 1
6. User Manual * 1
7. Certificate/Warranty Card * 1
Note
Due to the different monitor and light effects, the actual color of the item might be slightly different from the color showed on the pictures.
Please allow 1-2cm measuring deviation due to manual measurement.
