Product Description

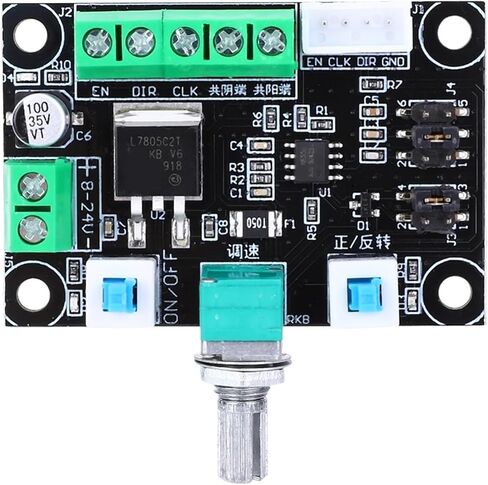

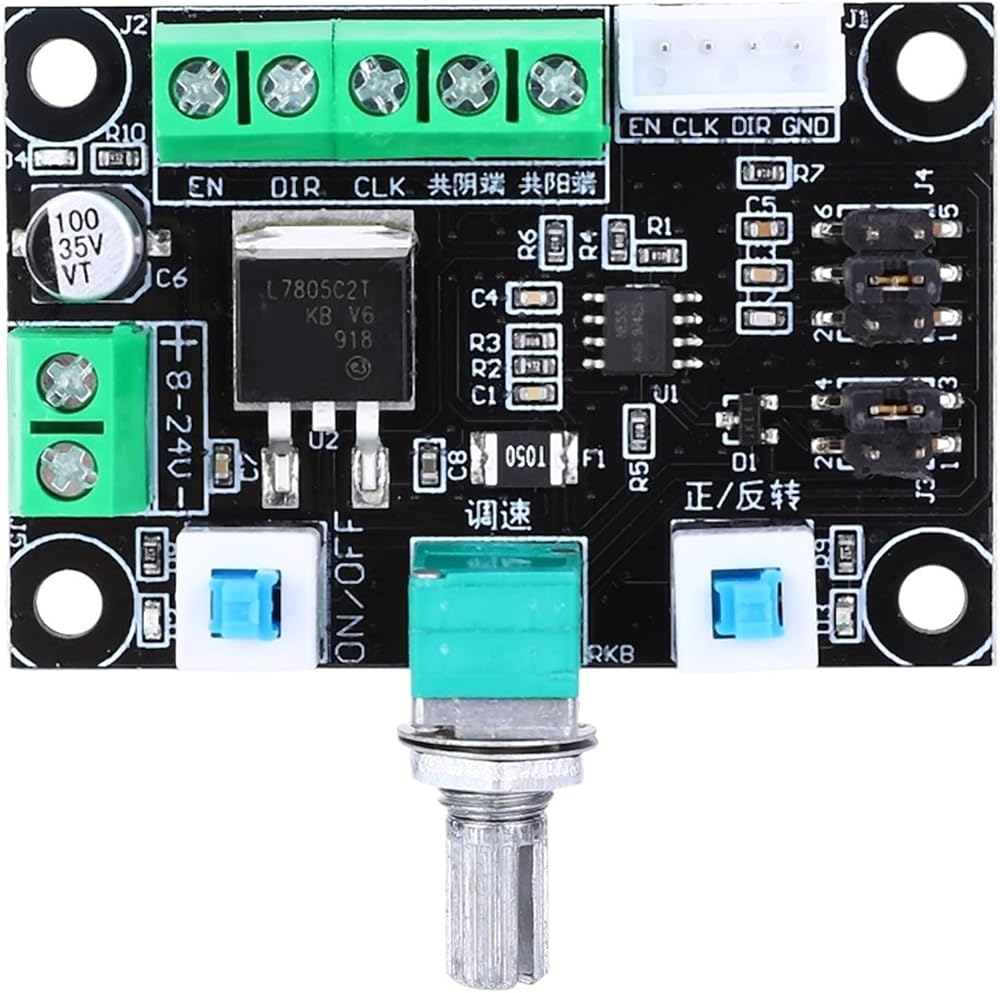

This module is a pulse generating module and provides stepper drivers as signals.
To control a stepper motor, a driver is required.
This simple controller + stepper driver + stepper motor + DC power supply can form a simple control platform.

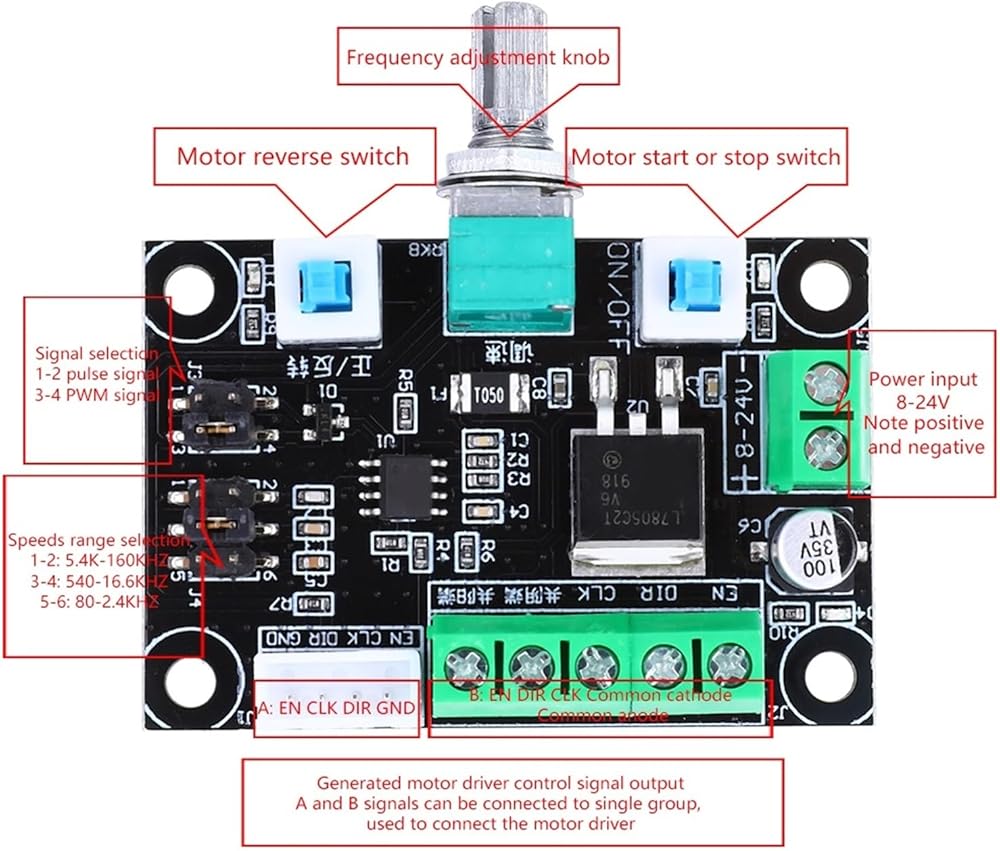

The controller has three frequency signals: high 5.4k-160khz, medium 540-16.6khz, and low 80-2.4khz.

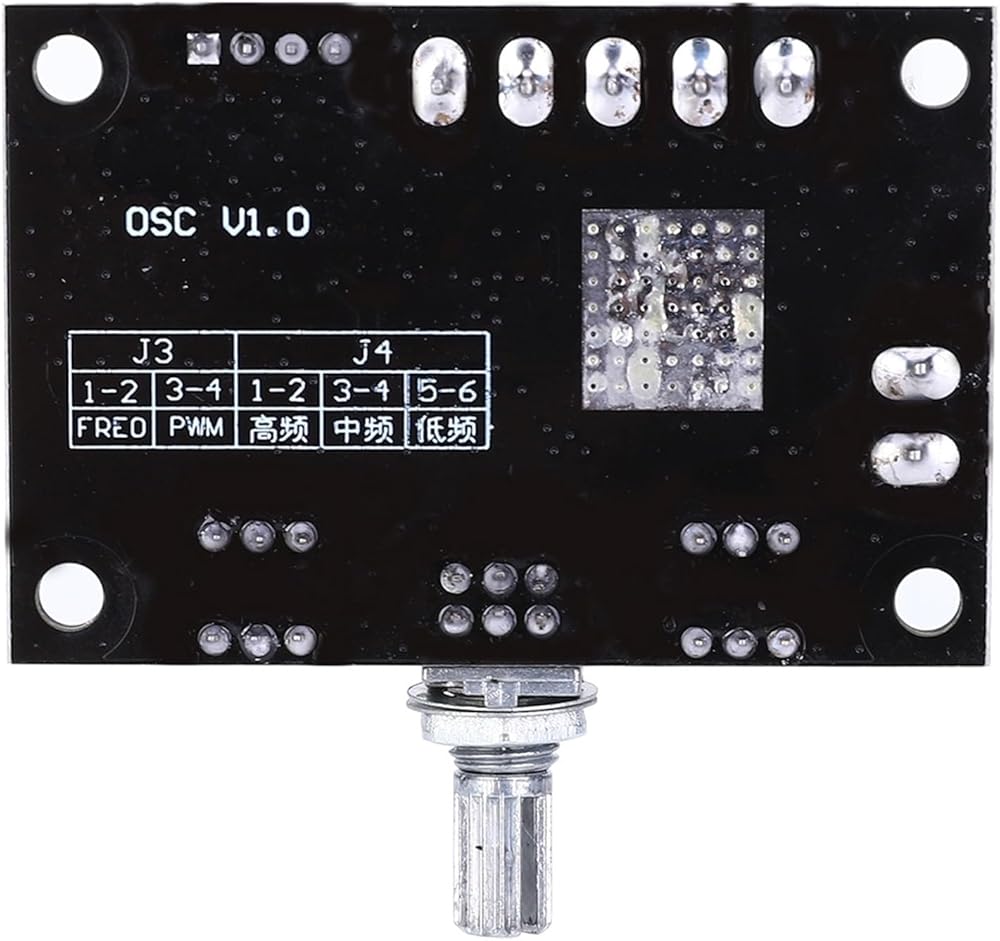

Jumper selectable. It can generate pulse signals and PWM signals, which can be selected through jumpers.
Frequency measurement: PUL and common cathode (or common anode) ports can be measured.
=========
Power supply: DC
Model: Motor driver
Motor type: DC motor
Origin: Mainland China
Certification: CE
1: Stepper motor drive controller
2: Stepper motor
3: Pulse pulse width modulation
