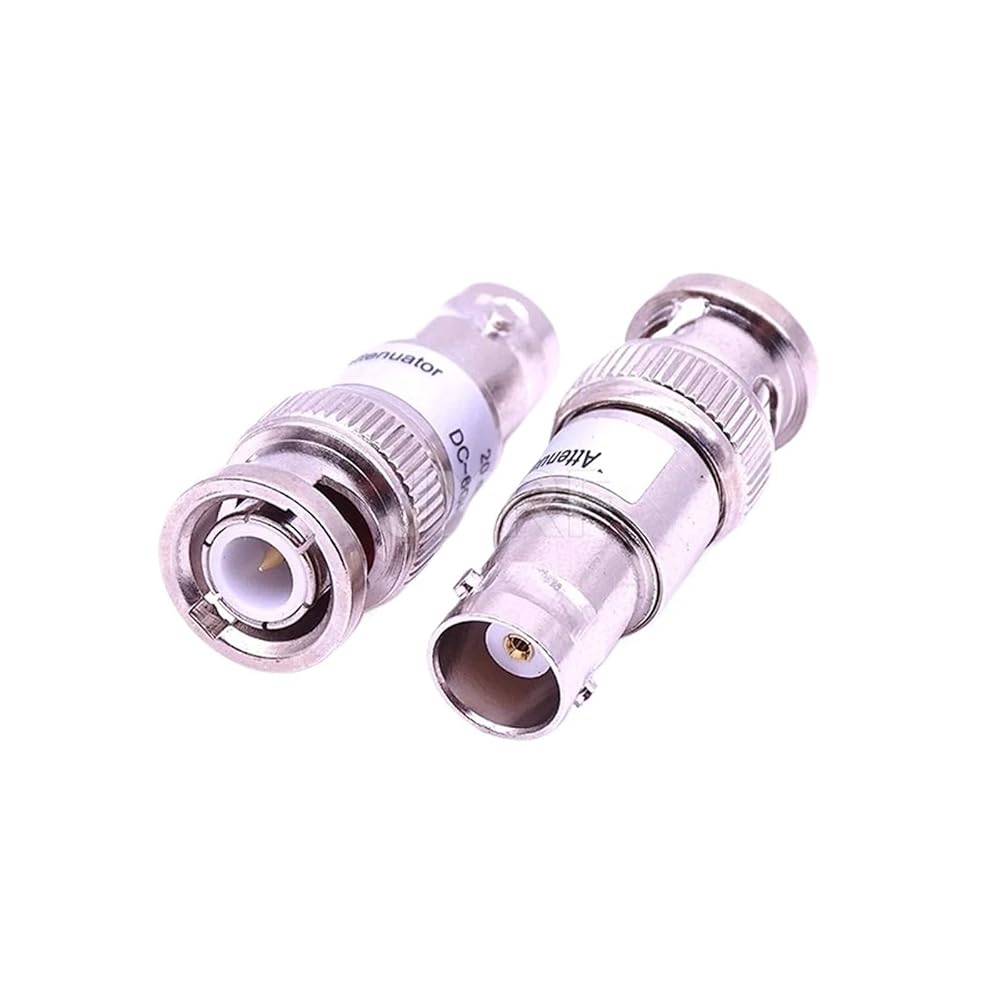

Radio Frequency Attenuators
Operating frequency
DC - 6 G (covering 0 meters to 6000 MHz, e.g., 433 meters, 900 meters, 1800 meters, 2.4 G and 5.8 G)
Frequency range
decay variable
1dB to 40dB
attenuation
Attenuation accuracy
1-20dB: +/-0.3dB@3GHz, +/-0.7dB@6GHz
30,40dB: +/-0.5dB@3GHz, +/-1.5dB@6GHz
Attenuation accuracy
Voltage standing wave ratio (maximum value)
1:1.3@3GHz, 1:1.65@6GHz
VSWR (maximum value)
strength
2W (full power); (can be converted to 12V continuous voltage, high voltage pulse can also be measured, but lifespan will be severely shortened)
strength
impedance
50 ohms
nominal impedance
Joint type
BNC-J ~ BNC-K
Connector type
size
13 mm x 36.5 mm
size
Operating temperature: -20 ~ 115°C
Operating temperature
