Sliding Block
MGN7R Micro Guide Rail
Combined Height: 8mm
Slider Height:6.5mm
Rail Height:4.8mm
Slider Thread Hole:M2*2.4
Rail Width:7mm
Rail Bolts:M2*6
MGN9R Micro Guide Rai
Combined Height: 10mm
Slider Height:8mm
Rail Height:6.5mm
Slider Thread Hole: M3*3
Rail Width:9mm
Rail Bolts:M3*8
MGN12R Micro Guide Rail
Combined Height:13mm
Slider Height:10mm
Rail Height:8mm
Slider Thread Hole:M3*3.5
Rail Width:12mm
Rail Bolts:M3*8
MGN15R Micro Guide Rail
Combined Height:16mm
Slider Height:12mm
Rail Height:10mm
Slider Thread Hole:M3*4
Rail Width:15mm
Rail Bolts:M3*10
HGR/SBR/EGR/MGN/MGW/SGR/LGD/TBR linear rail
motor/driver/spindle/inventer/water pump/switch power supply
rack/gear/gearbox
SCS/SCV/SK/SHF/LM UU
Model Number : MGN7C/MGN7H/MGN9C/MGN9H/MGN12C/MGN12H/MGN15C/MGN15H
Guide Width or Diameter : 7mm 9mm 12mm 15mm

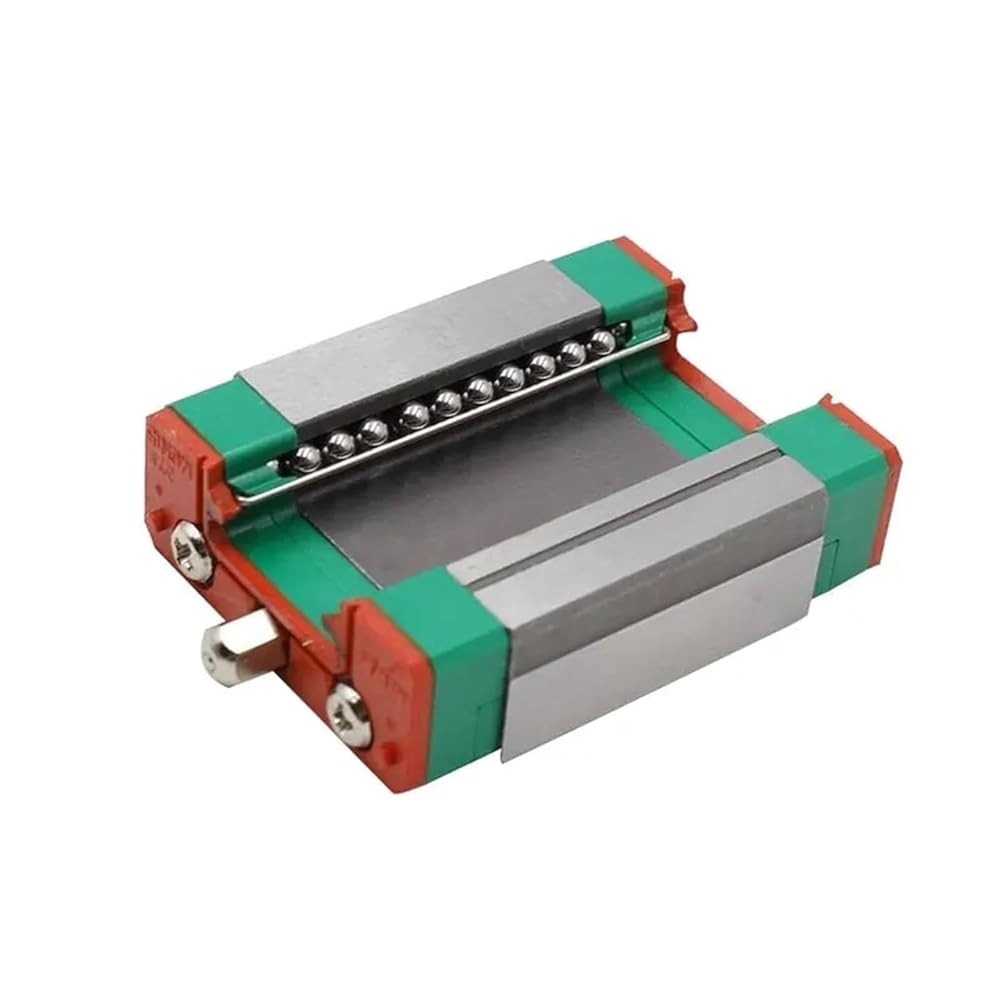

Product name : Linear Guide Blocks
Materia : Bearing steel
Color : Color Random
MGN7C/MGN9C/MGN12C/MGN15C : Ordinary Slider
MGN7H/MGN9H/MGN12H/MGN15H : Extended Slider
