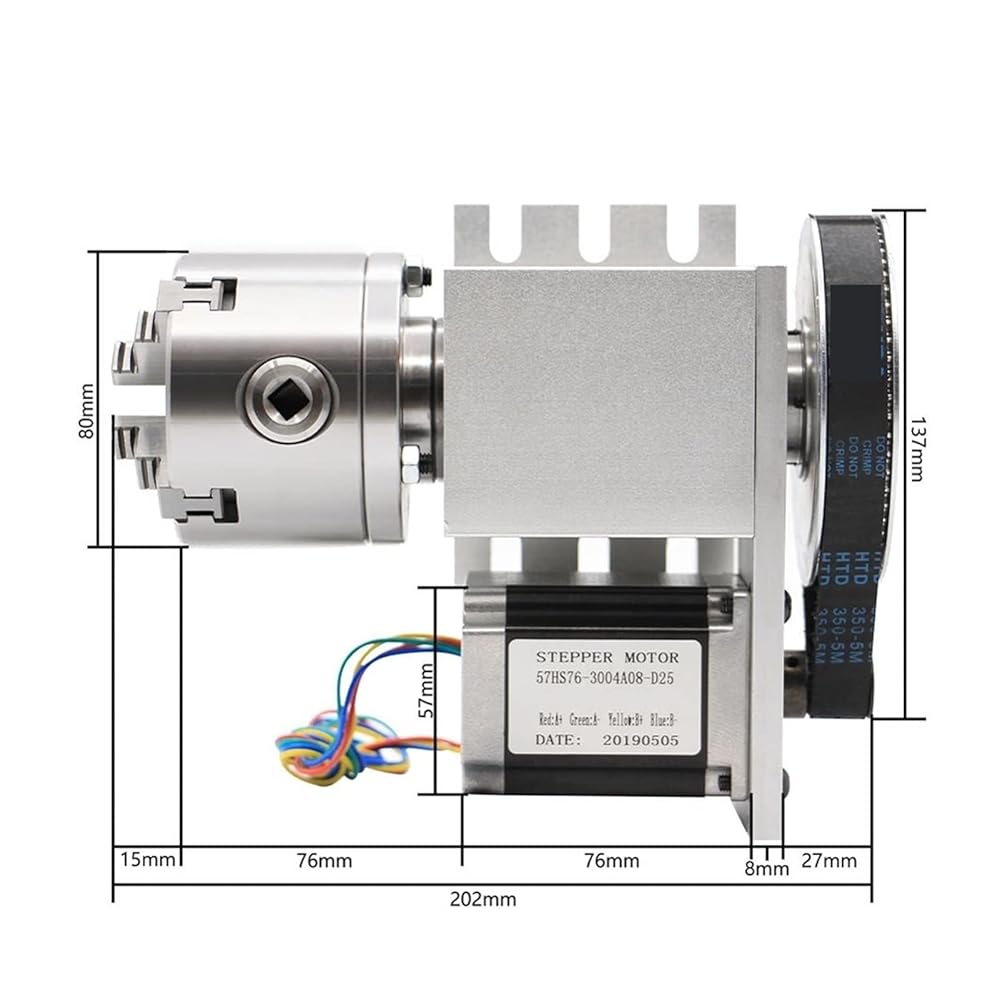

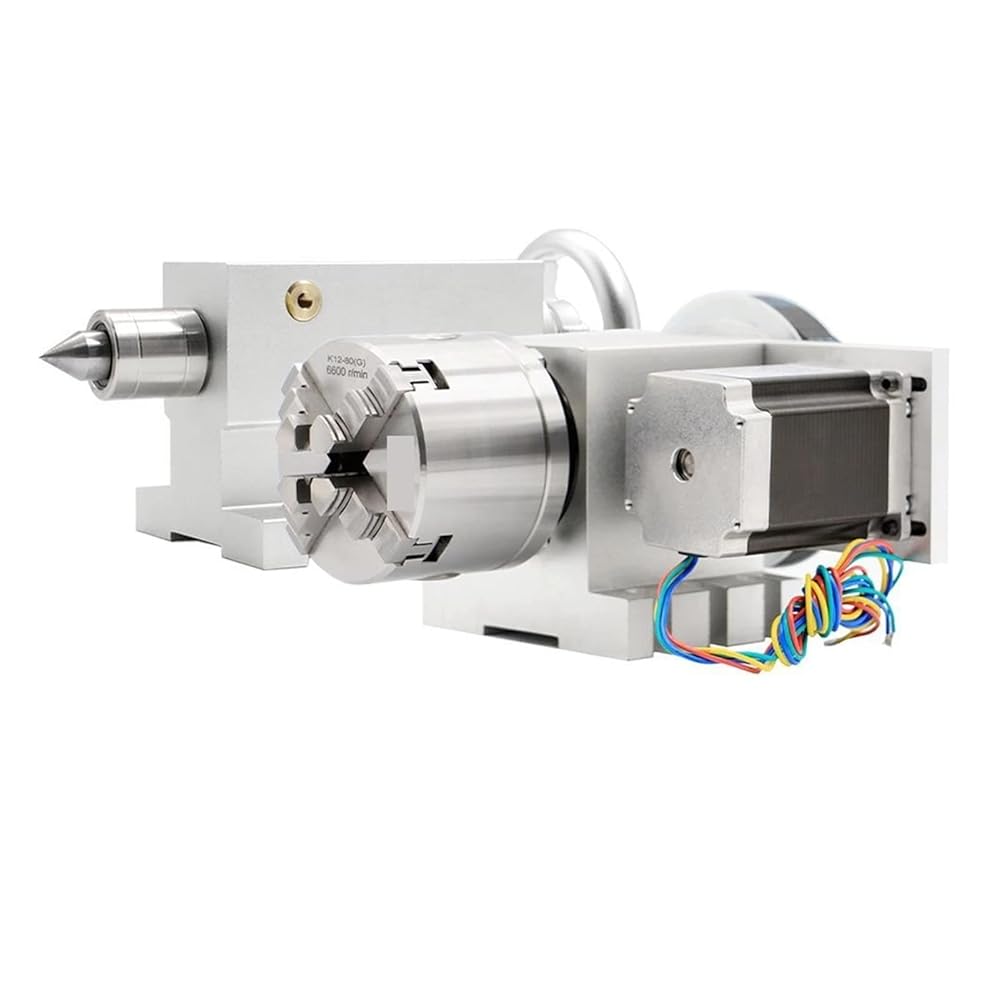

1 pc -- 4th 80mm 4 Jaw Chuck ( Positive jaw and counter jaw )

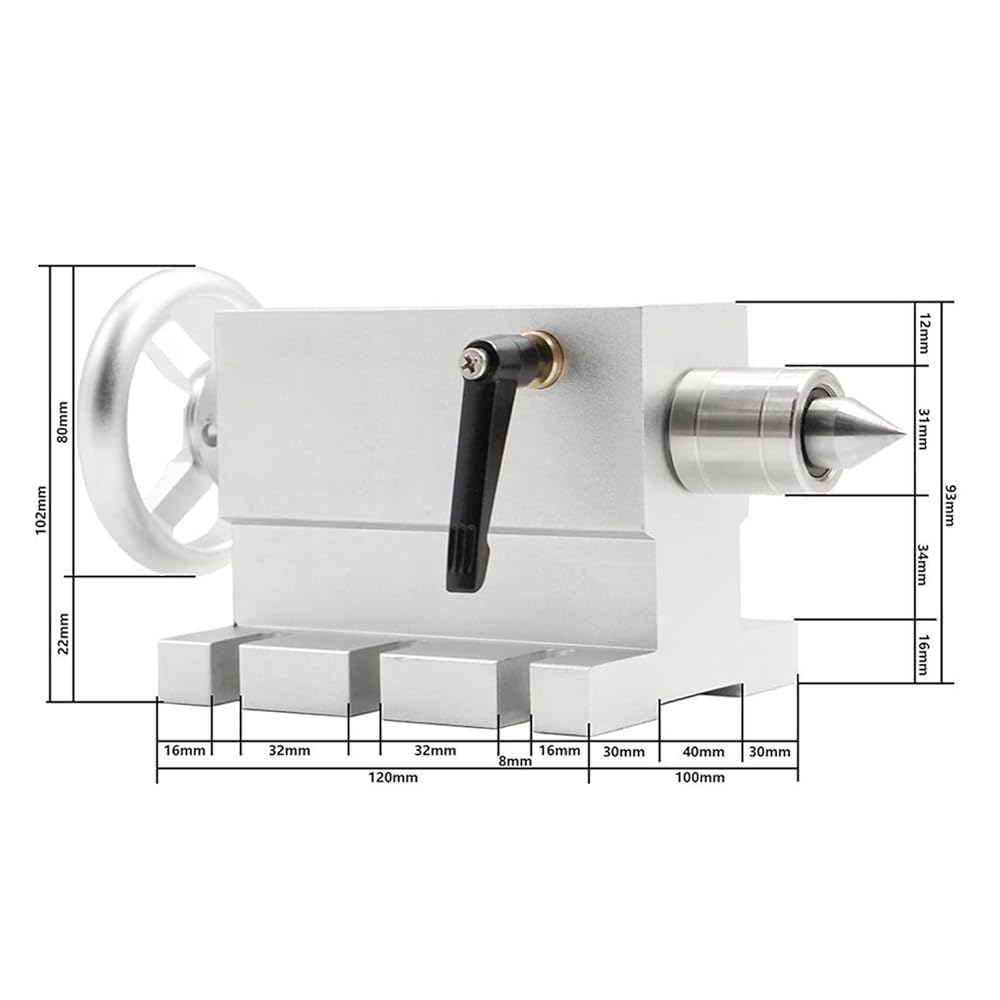

1 pc -- Tailstock

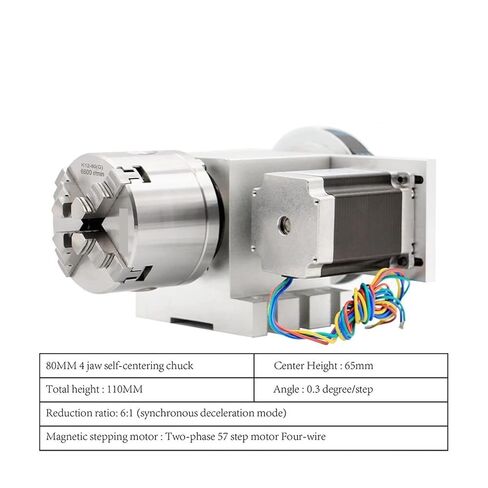

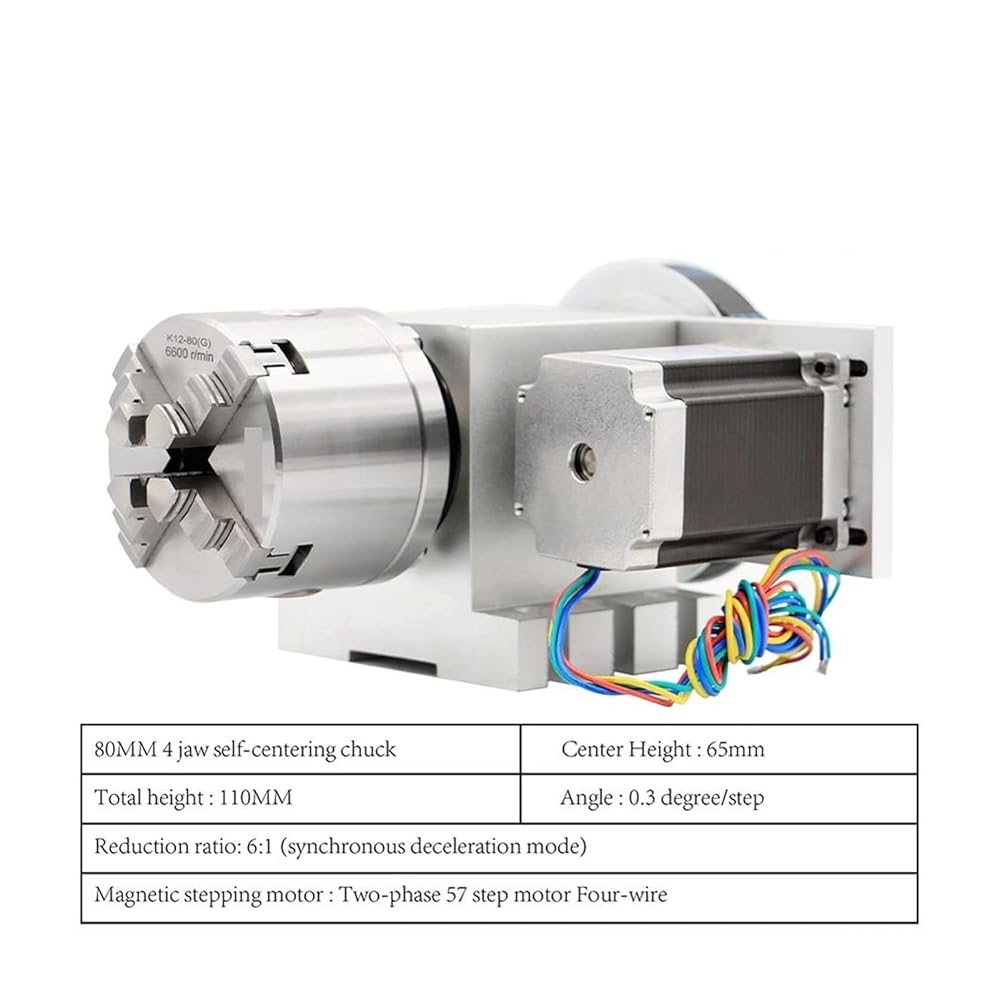

80MM four jaw self-centering chuck
Center Height 65mm
Total height, 115MM
Angle, 0.3 degree/step
Reduction ratio:6:1 (synchronous deceleration mode)
Magnetic stepping motor: Two-phase 57 step motor Four-wire
The system settings: the pulses for 1 required:
( the motor 1 Circle of pulse number × the drive of subdivision number × reduction ratio) ÷ 360 degrees
For example, the two-phase 57 motor, the ubdivision number 16, the reduction ratio 50:1
(200 × 16 × 50) ÷ 360 = 444.44444444)
Ncstudio system settings: the angle of a pulse walking:
360 ÷ (the motor 1 Circle of pulse numberr × × the drive of subdivision number × reduction ratio)
For example: the two-phase 57 motor, the breakdown of the number 16, reduction ratio 50:1
360 ÷ (200 × 16 × 50) = 0.00225
X or Y instead of the algorithm is:
Circumference ÷ (the motor 1 Circle of pulse numberr × × the drive of subdivision number × reduction ratio)
Engraving different sizes of round bars, equivalent needs to be set.

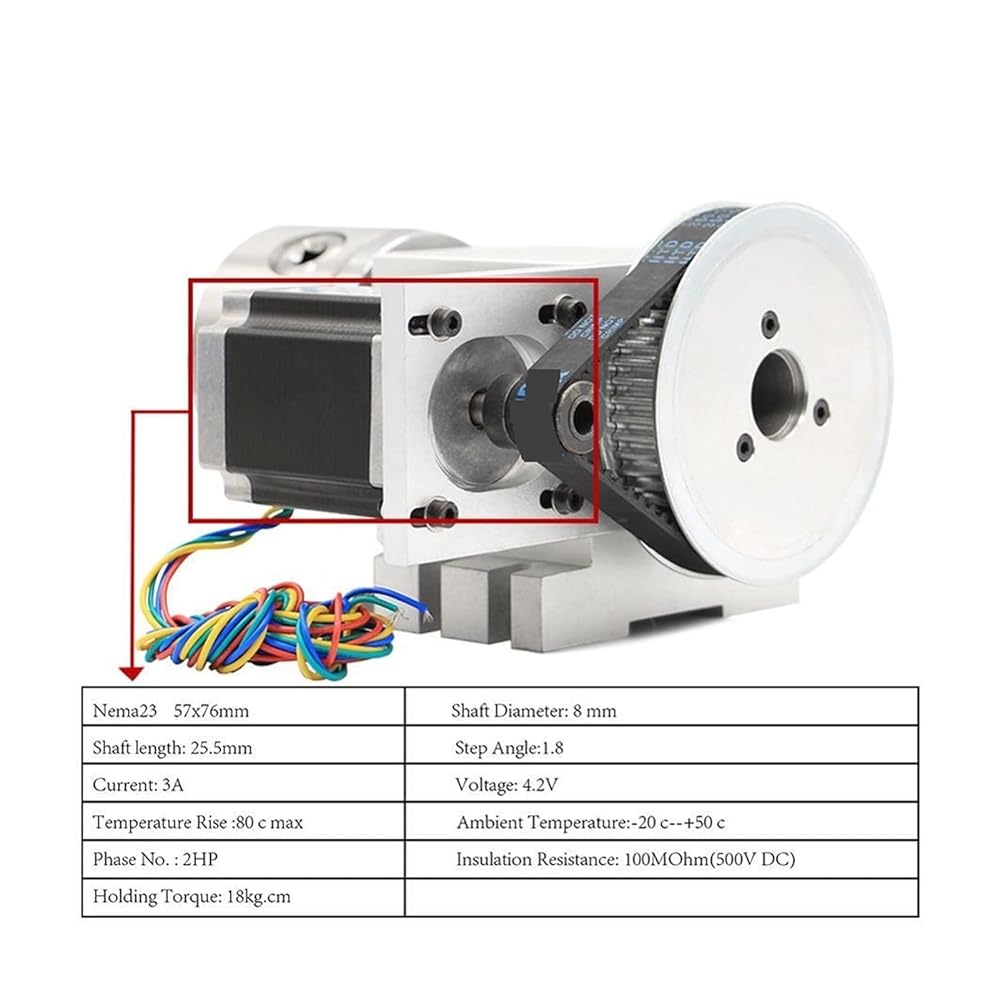

Nema 23 57x76mm
Shaft Diameter: 8 mm
Shaft length: 25.5mm
Step Angle:1.8
Current: 3A
Voltage: 4.2V
Temperature Rise :80 c max
Ambient Temperature:-20 c--+50 c
Phase No. : 2HP
Insulation Resistance: 100MOhm(500V DC)
Holding Torque: 18kg.cm

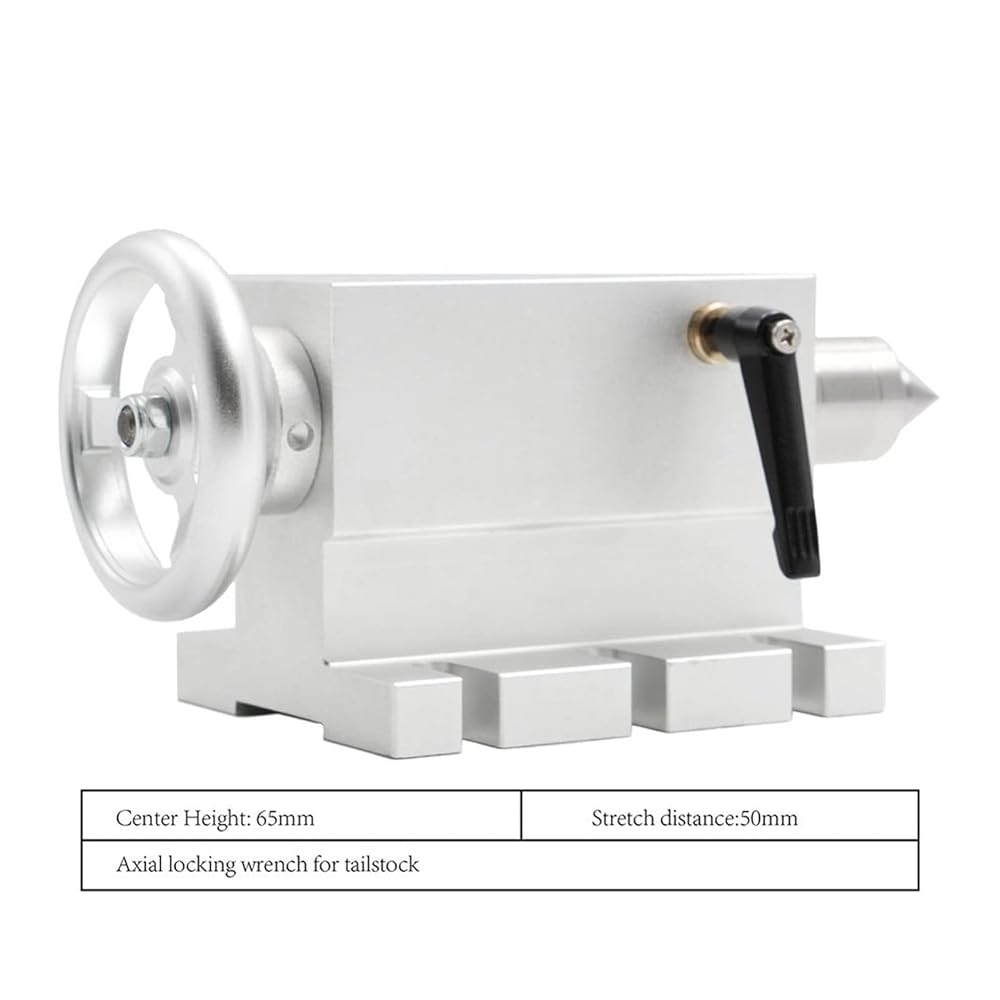

Center Height: 65mm
Stretch distance:50mm
Axial locking wrench for tailstock
