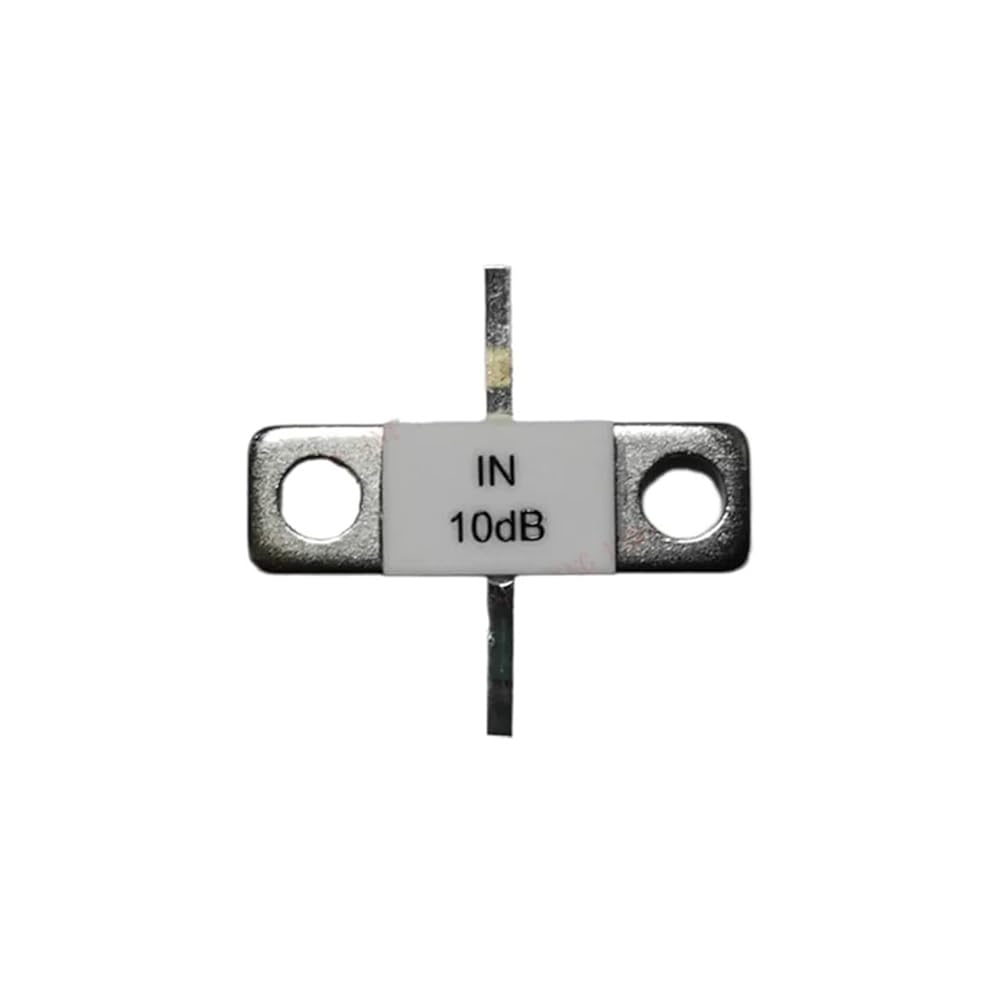

100 واط 10 ديسيبل المخفف شفة المخفف 100 واط 10 ديسيبل DC-3 جيجا هرتز 50os BeO 50OHM DC-3.0 جيجا هرتز منخفضة SWR عالية الطاقة
وصف
Resistor Networks
Specification
Frequency range: DC-3.0GHz
Rated power: 100W
Attenuation value: 10dB
Attenuation tolerance: ± 0.8dB
Nominal impedance: 50os±5%
Standing wave ratio: 1.25:1
Substrate material: Beryllium ceramic
Operating temperature: -55 to +150
Temperature coefficient: 150ppm/
Rated power: 100w
Package type: surface mount
Model: 100w 10db
