Ammeters
Attention:
1.Below 10A or 10A: all direct measurements built-in sampling resistance no external shunt or sampling resistance.
2.More than 10A: not include a shunt. It is necessary to take ashunt of 75mV to work even if 0.1 A. Or it will be burnt.
4.This meter is common ground namely the "IN -" of the test terminal is connected with the "negative pole" of the power supply side so the ammeter can only be connectedbetweenload and negative power supply and it is recommended to use a separate power supply(ie: independent power supply).
5.2.If you select "Power supply DC5V" the working voltage is "5V±0.5 V" or it will be burnt.
Technical Parameters:
Power supply:DC5V/12V/24V selectable
Test current:DC200mA
Dimension:79*43*25mm
Mounting hole:76*39.5mm
Display mode: 0.4 "LED with red/blue digits
Measurement accuracy: 0.1% (± 2 digits)
Measurement rate: 2 times/S
Specification:
Features:
Thismeter can test positive and negative value.
Power supply reverse protection.
The crystal of the meter is quartz crystal with high precision and high stability.
The LED digital tube display part with all the limited current resistance will be not appeared "the bright and dark inconsistency".
Package Include:

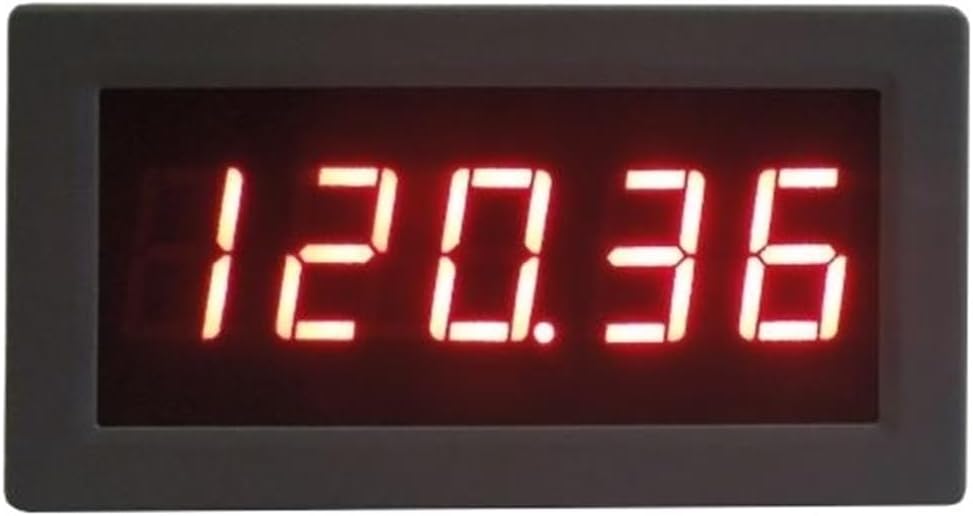

1 piece* LED Digital DC Current Meter
Suitable for "below 10A" built-in shunt:
Working conditions:
Operating temperature: -10 ~ + 50
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sun exposure: no direct exposure
