50 واط MINI DIN 4.3-10 موصل ذكر إلى أنثى RF مخفف محوري DC-3/4 جيجا هرتز 1 ديسيبل، 3 ديسيبل، 5 ديسيبل، 6 ديسيبل، 10 ديسيبل، 15 ديسيبل، 20 ديسيبل، 30 ديسيبل، 40 ديسيبل، 50 ديسيبل (30 ديسيبل 4 جيجا) in Kuwait

20 ديسيبل 3G

KWD 18
اللون20dB 3G
– 1 +

مميزات خاصة

  • Precise Signal Reduction: This RF attenuator accurately reduces the power level of a signal without significantly distorting its waveform, ensuring clean and reliable signal strength management in your RF circuit.
  • Wide Frequency Range: Engineered to perform consistently across a broad frequency spectrum (e.g., DC to X GHz), making it suitable for a variety of applications from audio to microwave frequencies.
  • Multiple Attenuation Values: Available in a range of standard fixed attenuation values (e.g., 3dB, 6dB, 10dB, 20dB) to provide flexibility for different circuit requirements and power reduction needs.
  • High Power Handling Capability: Built with robust materials to handle high average and peak power levels, preventing damage and ensuring stable performance in demanding RF environments.
  • Outstanding Temperature Stability: Constructed with components that provide stable performance across a wide operating temperature range, guaranteeing consistent attenuation regardless of environmental changes.

وصف

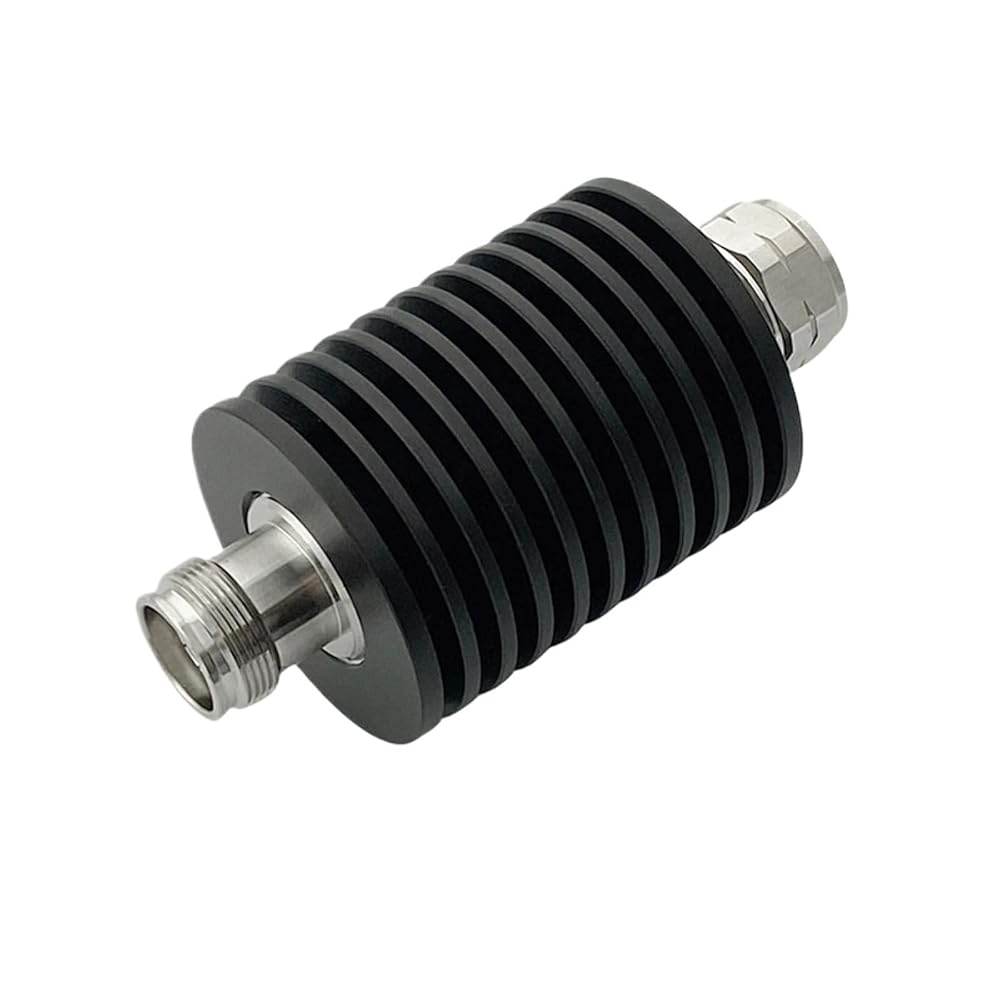

50W 4.3-10-JK Attenuator
Power: 50W
Connector: 4.3-10-J-K
Frequency Range: DC-3/4GHZ
Attenuation: 1-50db available, and 1-10dB.±0.5dB,15-50dB±1dB
VSWR (MAX): 1.2:1
Impendance: 50
Temperature Range: -55°C to +125°C
Dimension: 103*50mm
Weight: 341g
Model Number : BC-AT50-03
