مميزات خاصة

Powerful load capacity: Heavy-duty cold-rolled steel brackets bring a huge load to your project, with a single wheel carrying a maximum of 600KG/1323 pounds.
Solid-oriented U-shaped wheel: Forged from carbon steel, finished, , , high strength, good toughness, wear resistance and stability, can be used for a long time.
Double bearing: has good sliding characteristics. Provides greater flexibility and makes better use of the available floor space.
Practicality: U-shaped groove design, unlike other sheaves, U-shaped groove can perfectly adapt to the inverted track, and can reduce vibration, suitable for round pipe to make track.
Easy to fix by screwing or welding, effectively reduce vibration, run smoothly and minimise noise. Make it easy to slide the gate indoors or outdoors to be used,convenient and practical. It can also be applied to Widely used in automotive and other automated production lines, as well as various general mechanical equipment. Can DIY home gym equipment, fitness accessories, pulley machine. Or pulleys for ropes for indoor and outdoor use, garage, clothesline, pulley system, etc.

وصف

*specification:
Condition: 100% new
Material: carbon steel integral forging
Bracket: cold rolled steel
Steering: directional casters
Slot: U-shaped groove

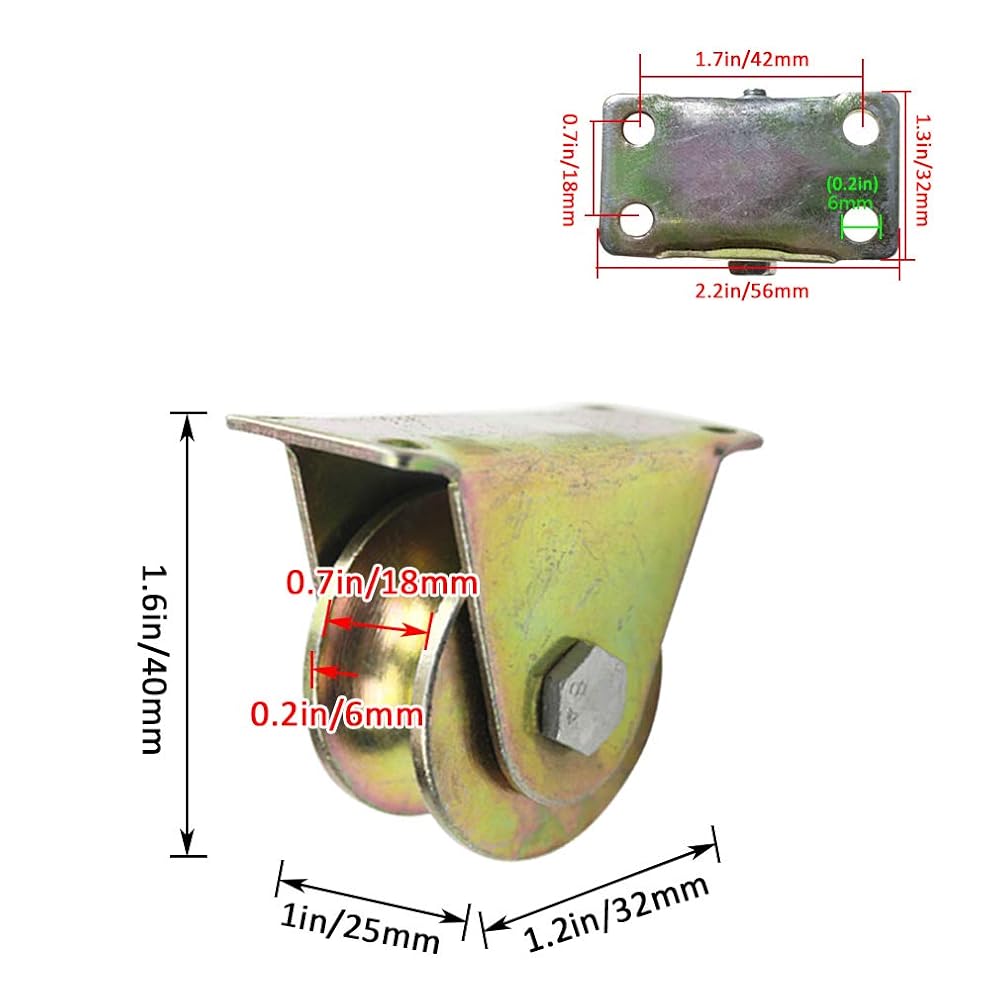

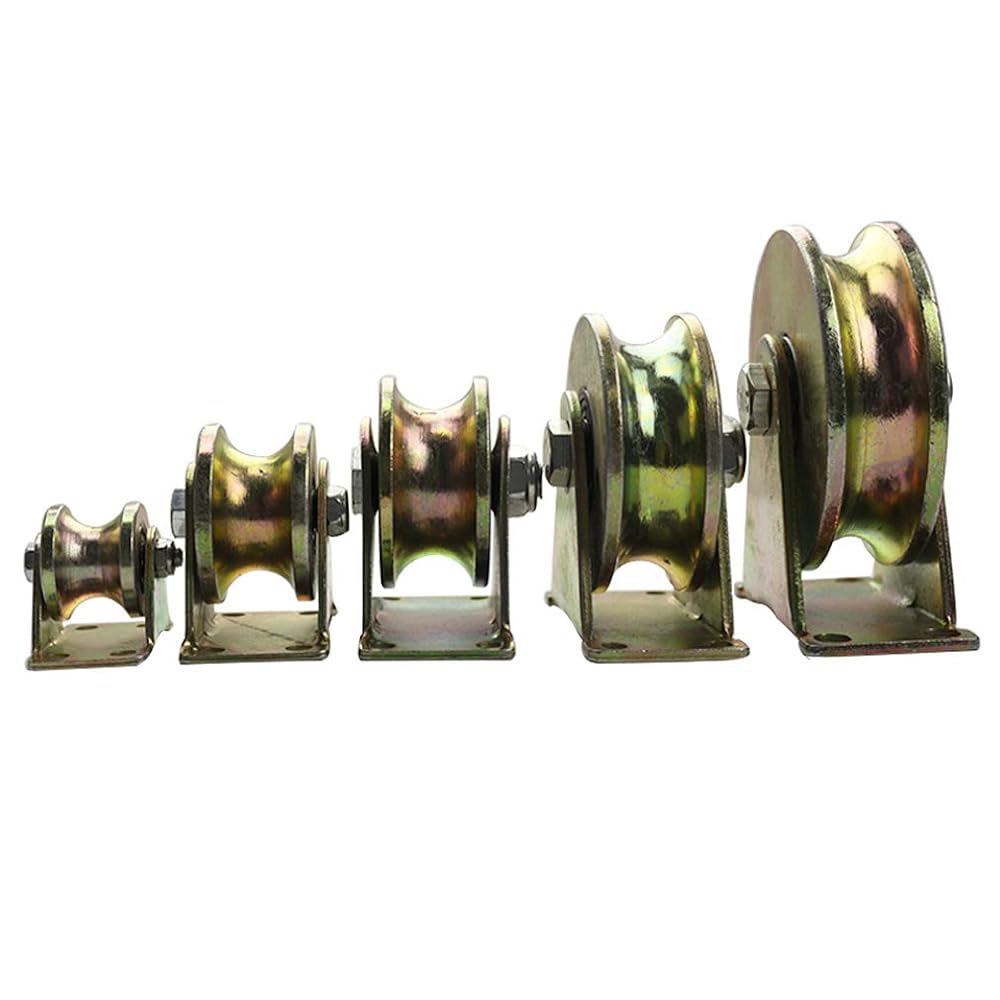

* Wheel diameter: 1.2/2/2.5/3/4in (32/50/60/80/100mm)
*Installation height: 1.6/2.3/2.8/3.6/4.6in (40/59/72/92/116mm)
* Mounting plate size: 2.2x1.3in/56x32mm, 2.7x1.5in/68x38mm, 3.5x1.6in/90x40mm, 4x1.8in/100x46mm, 4.3x1.8in/110x46mm
* Mounting aperture: 1.7x0.7in/42x18mm, 2.2x1in/55x24mm, 3x1.1in/77x28mm, 3.4x1.1in/87x28mm, 3.7x1.2in/93x30mm
* Wheel width: 1in / 25mm, 1.2in / 30mm, 1.2in / 31mm, 1.3in / 32mm
*Outer groove width: 0.7in/18mm, 0.7in/19mm, 0.8in/21mm
* Groove depth: 0.2in/6mm, 0.4in/9mm, 0.4in/11mm
*Aperture: 0.2in/6mm, 0.3in/7mm
* Load bearing:
1.2in: single wheel load 180KG/397 pounds, 4 wheel load 540KG/1191 pounds
2in: single wheel load 220KG/485 lbs, 4 wheel load 660KG/1455 lbs
2.5in: single wheel load 350KG/772 pounds, 4 wheel load 1050KG/2315 pounds
3in: single wheel load 500KG / 1102 lbs, 4 wheel load 1500KG / 3307 lbs
4in: single wheel load 600KG/1323 lbs, 4 wheel load 1800KG/3969 lbs
*note:
1.2in: suitable for orbital of tubes below 18mm
2in: suitable for round pipe of 19mm or less
2.5in: suitable for round pipes of 21mm or less
3in: suitable for use in round pipes up to 21mm
4in: suitable for use in round pipes up to 24mm
*Package includes:

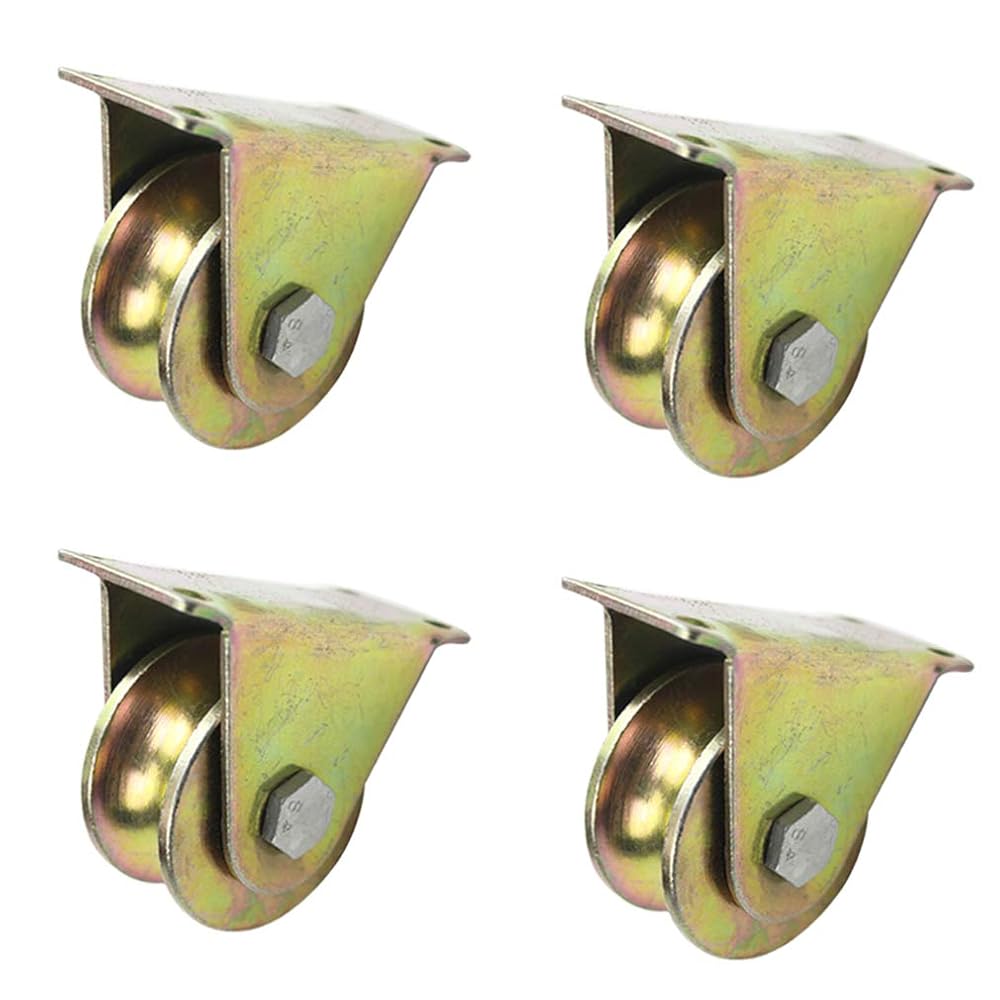

4 x sliding door roller U-shaped steel wheel
