The U-shaped groove wheel can perfectly adapt to the inverted track and the round tube track. Suitable for various projects such as sliding doors, industrial machinery, and steel wire guides. And it can reduce vibration and slide smoothly. And the stability is good, to ensure the durability for many years!

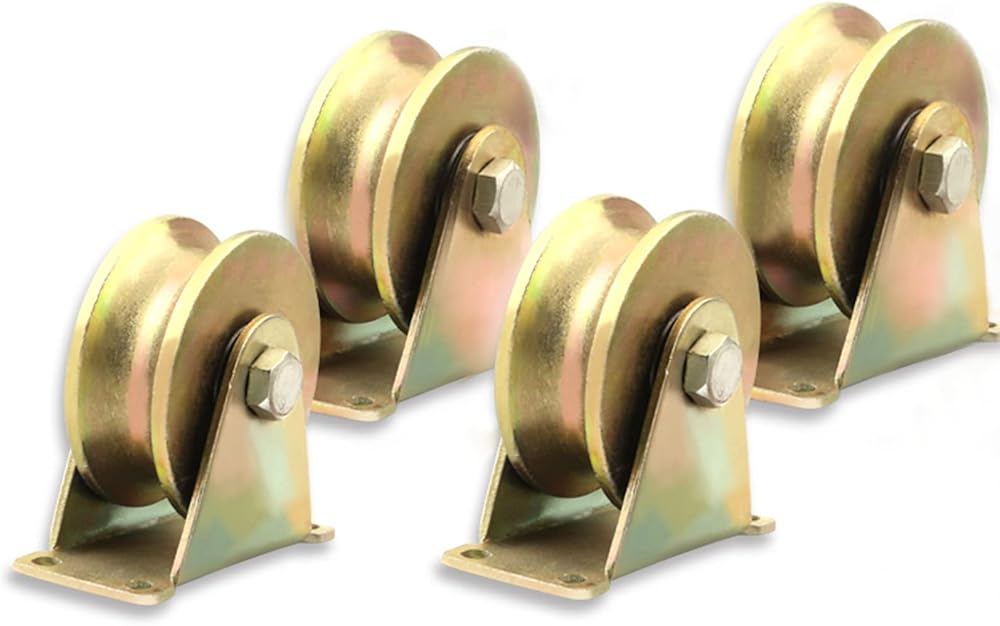

Product name: U-shaped track wheel
Material: 45# steel, galvanized
Bracket material: cold rolled steel
***Wheel diameter: 1.2in/32mm
***Total height: 38mm/1.5in
***Wheel width: 25mm/0.98in
***Slot width: 17mm/0.67in
Groove depth: 6mm/0.24in
Mounting board size: 56x31mm/2.2x1.22in
Installation hole distance: 41x16mm/1.6x0.6in
Installation aperture: 6mm/0.24in
***Wheel diameter: 2in/50mm
***Total height: 60mm/2.4in
***Wheel width: 30mm/1.2in
***Slot width: 22mm/0.87in
Groove depth: 8mm/0.31in
Mounting board size: 68x39mm/2.7x1.5in
Installation hole distance: 55x24mm/2.17x0.9in
Installation aperture: 6mm/0.24in
***Wheel diameter: 2.5in/60mm
***Total height: 72mm/2.8in
***Wheel width: 30mm/1.2in
***Slot width: 22mm/0.87in
Groove depth: 8mm/0.31in
Mounting board size: 90x41mm/3.5x1.6in
Installation hole distance: 75x27mm/3x1.06in
Installation aperture: 6mm/0.24in
***Wheel diameter: 3in/80mm
***Total height: 88mm/3.46in
***Wheel width: 30mm/1.2in
***Slot width: 22mm/0.87in
Groove depth: 8mm/0.31in
Mounting board size: 100x43mm/4x1.7in
Installation hole distance: 86x28mm/3.4x1.1in
Installation aperture: 6mm/0.24in
***Wheel diameter: 4in/100mm
***Total height: 115mm/4.5in
***Wheel width: 30mm/1.2in
***Slot width: 22mm/0.87in
Groove depth: 10mm/0.39in
Mounting board size: 110x46mm/4.3x1.8in
Installation hole distance: 94x29mm/3.7x1.14in
Installation aperture: 8x11mm/0.3x0.4in
The package includes:
4x U-shaped track wheels
