Relay type:Multi-function Time Relay

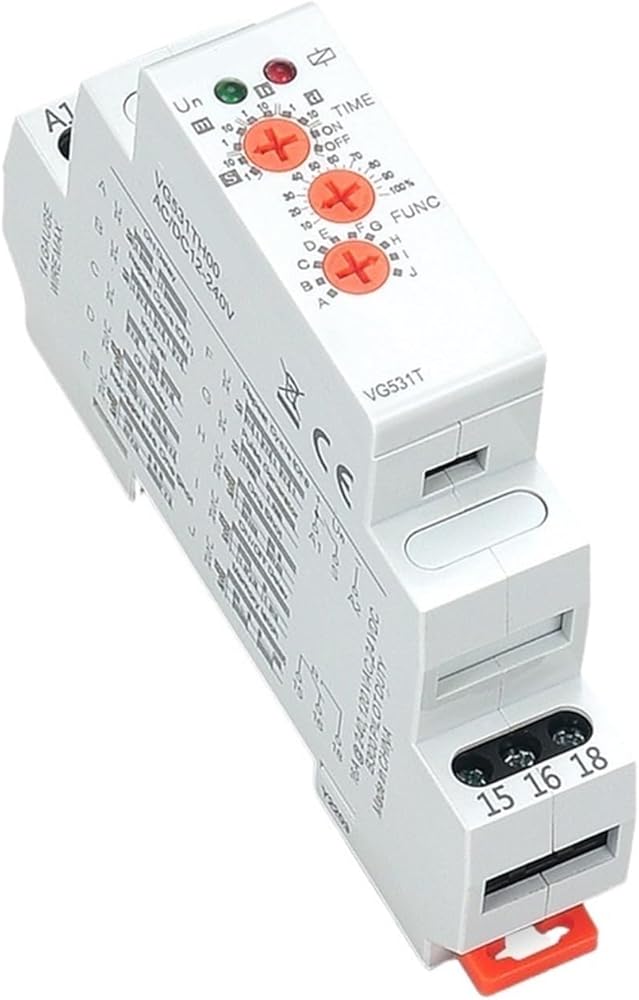

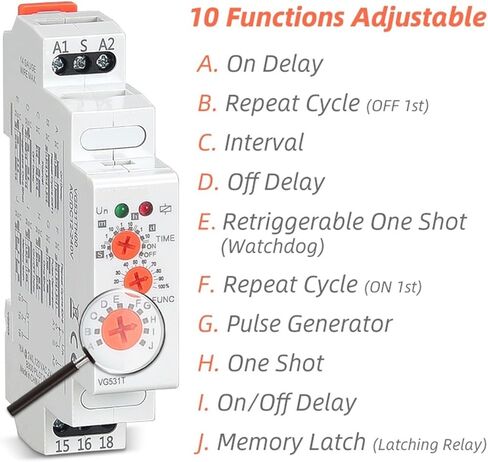

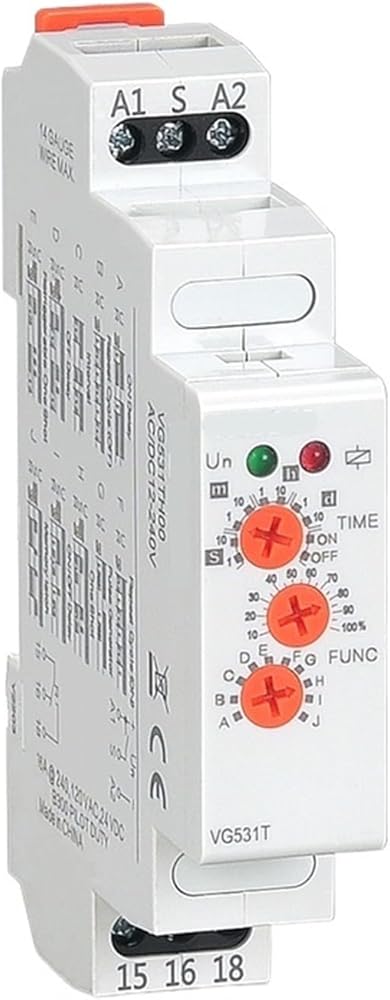

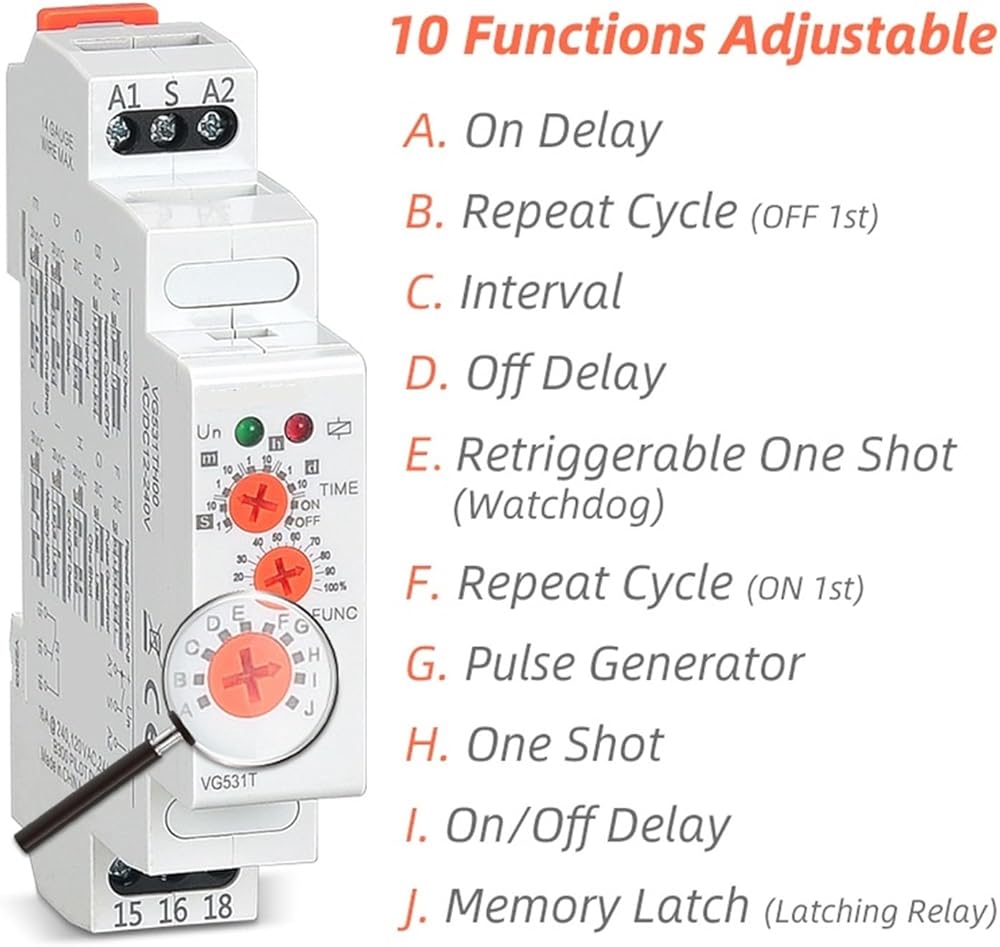

10 Functions:
1. Power On Delay
2.Asymmetric Cycle(Starting Off)
3. Interval(Power On)
4. Off Delay
5. Single Shot (Retriggerable)
6. Asymmetric Cycle (Starting On)
7. Pulse (Generator)
8. Single Shot
9. On / Off Delay
10. Memory Latch
U: Power Supply S: Control Signal R: Output Contact
Technical data:
Rated supply voltage:220 VAC or 12-240 VAC/DC
Supply frequency: 50/60 Hz
Time delay range:0.1 Second - 10 Days, divided into 10 ranges, setting by otentionmeter
( 0.1-1 second, 1-10 second, 6-60 second, 1-10 minute, 6-60 minute, 1-10 hour, 0.1-1 day, 1-10 day, only on, only off )
Operating temperature:-20~+55
Storage temperature:-30~+70
Setting accuracy-full range:±5%
Contacts type:1 C/O (SPDT)
Rated current:16A/240 VAC,24 VDC (Resistive Load)
Discrete Output Type:Relay
Size:Width (18mm) × Depth (65mm) × Height (90mm)
Applications:
Automatic door and gate openers, building automation, cranes, pump controlpanels and pumping units, automated awnings, blinds, shutters, elevators,control systems, timers and lighting controls.

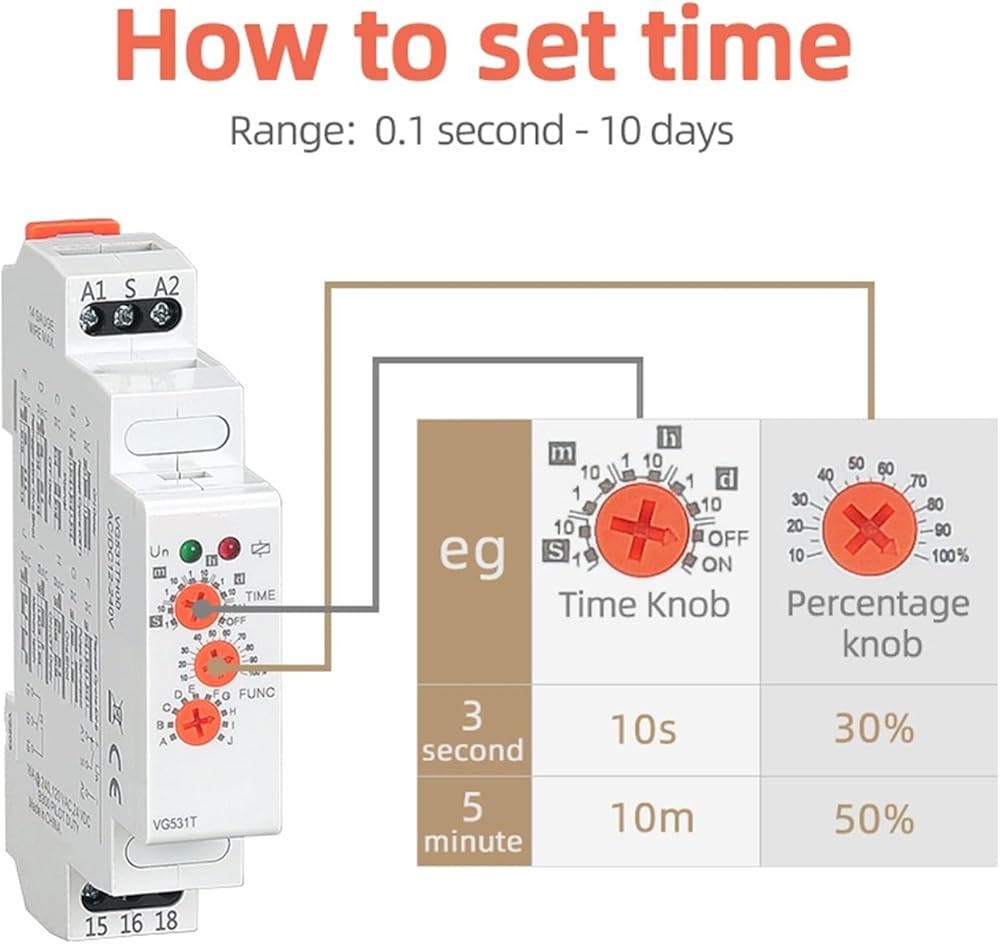

Delay time adjustable on front by rotary switch: 10...100%
Green indicator for power on

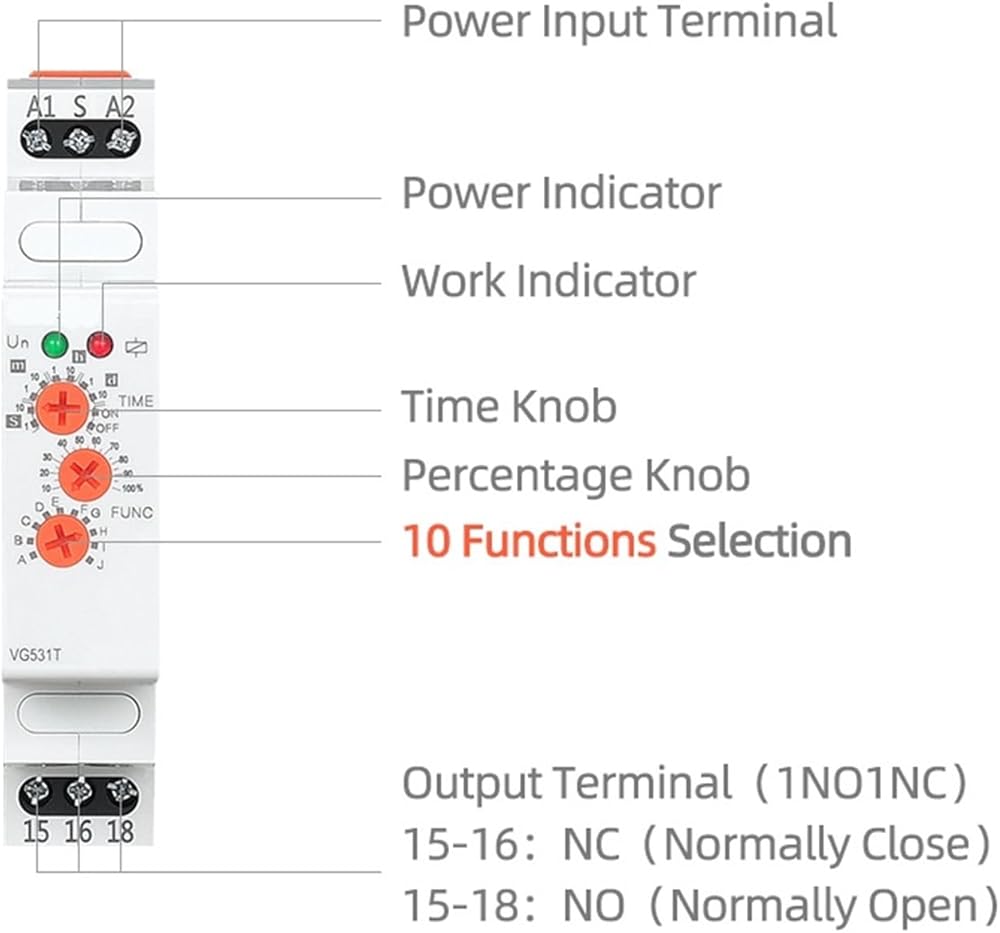

Red indicator for relay state; flashing for delay and steady when relay energised
"Blade + cross" both flat blade and crosshead screwdrivers can be use on rotary selectors and terminals

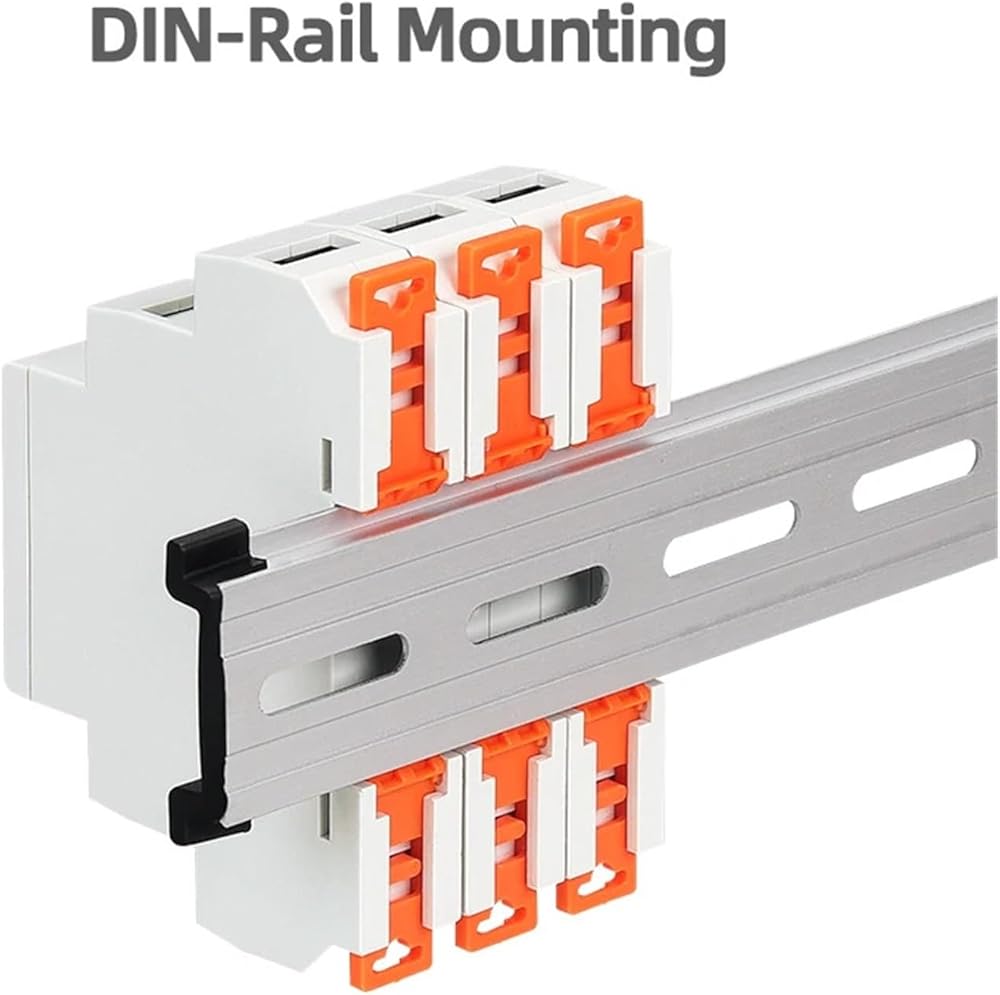

35 mm Din rail mount
