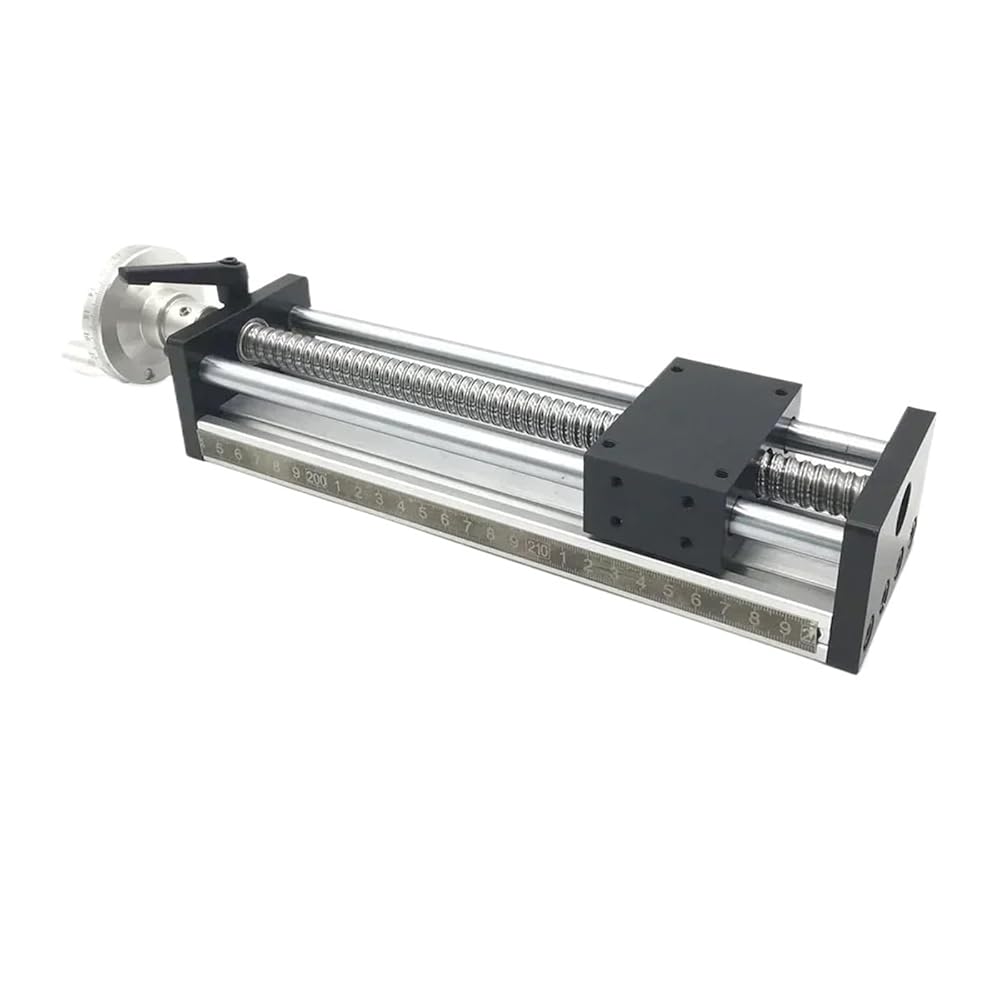

Sliding Block
1* Sliding Table
1* Metal scale handwheel
Model: M-GGP5080
Ballscrew accuracy: C7 level
Effective stroke: 100mm-300mm Optional
Total length: Effective s troke +70mm
Mobile panel size: 50 *80mm
Guide Type: 2*12mm optical axis rod
Horizontal load: 40KG (Max)
Vertical load: 20KG(Max)
Maximum speed: 100mm/s
Material: Industrial Aluminum Profile
Model: M-SXG5080
Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)
Ballscrew accuracy: C7 level
Effective stroke: 100mm-300mm Optional
Total length: Effective stroke+85mm
Mobile panel size: 50*80mm
Guide diameter: 12mm
Guide Type: 2*MGN12R
Slider Type: 2*MGN12H
Horizontal load: Max 50KG
Vertical load: Max 20KG
Maximum speed: 500mm/s
Ballscrew accuracy: C7 level
Effective stroke: 100mm-300mm
Total length of slide: Effective stroke+80mm
Mobile panel size: 60mm*42mm
Guide diameter: 12mm
Guide Type: MGW12R
Slider Type: MGW12C
Horizontal load: 60KG (Max)
Vertical load: 30KG (Max)
Model Number : M-GGP / SXG / DXG
Guide Width or Diameter : 16mm
Ballscrew type : SFU1605
Ballscrew accuracy : C7 level
Effective stroke : 10mm-300mm Optional
Maximum speed : 100mm/s
Repeat positioning accuracy : 0.03-0.05mm
Horizontal load : 40KG (Max)
Vertical load : 20KG(Max)
Slide Material : Industrial Aluminum Profile
Guide Type : 2*12mm optical axis rod
