Seals

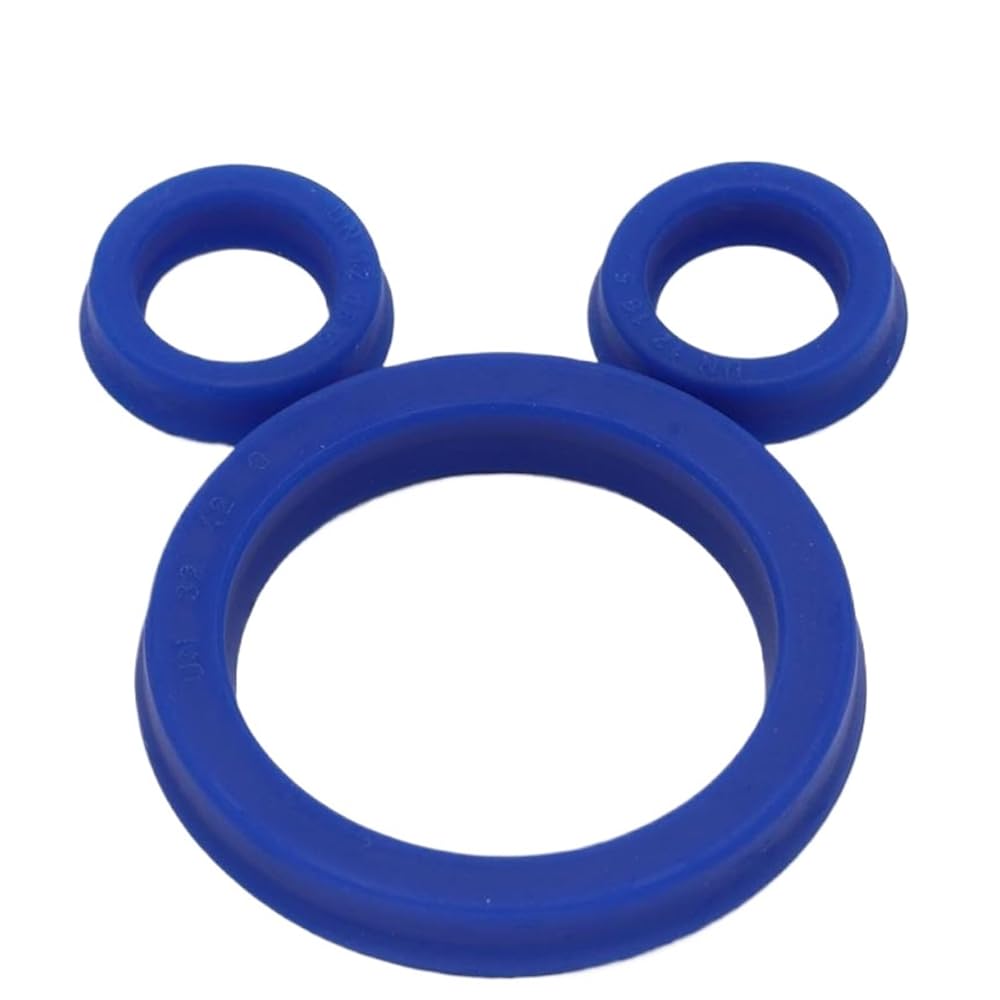

UN 25 26 27 28*30 31 32 33 35 35.5 36 38 40 42 43 44 45*5 5.5 6 7 8 10 12 PU Shaft Piston Rod U/Y Ring Gasket Hydraulic Oil SealMaterial:Polyurethane (PU)
Working Speed:0.5m/sWorking Pressure: 35Mpa
Working Temperature:-35 To 100
For example,UN 5*12*8mmMeans That
Inner Diameter (ID) Is 5mm.
Outer Diameter (OD) Is 12mm.
Height (H) Is 8mm.
Widely used in the hydraulic cylinder to prevent dust, dirt, sand, and metal debris from entering, and easy to install
==========
High-concerned chemical : None
Standard or Nonstandard : Standard
Model Number : UN 25 26 27 28
Material : Rubber
Shape : Grooved Gasket
Origin :
Certification : None
