bearing

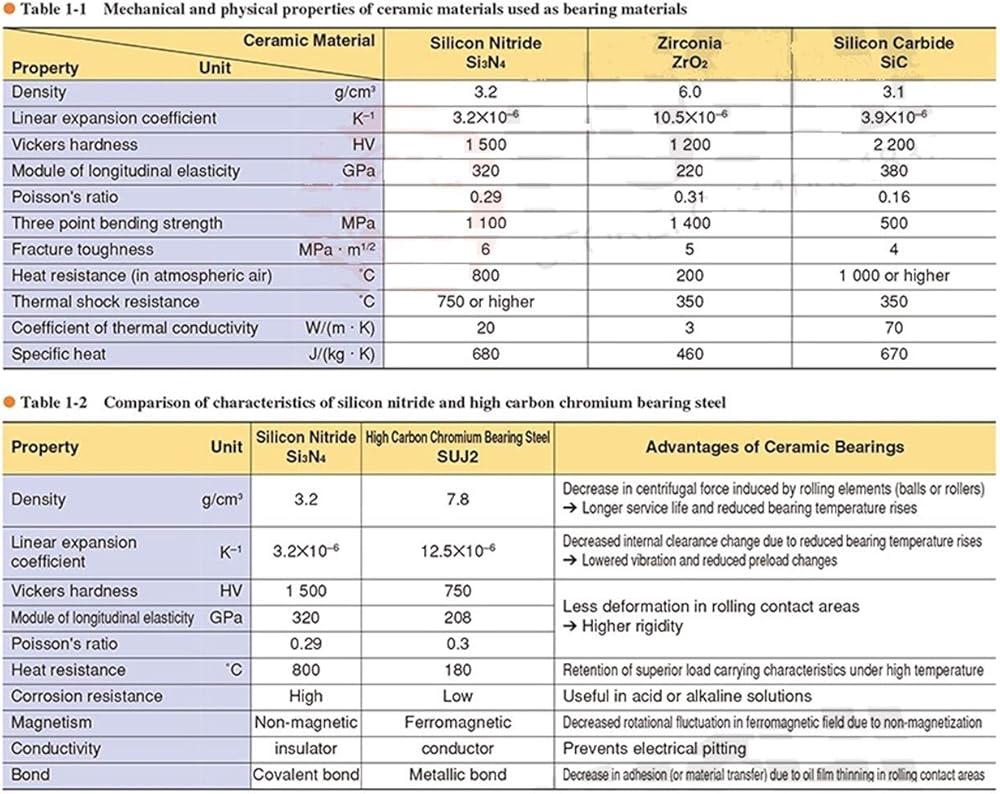

Properties of Full Cearmic Materials
Ceramic Bearings including components made from ceramic have the special properties that steel bearings do not have such as being non-magnetic or insulating. They can be used in new applications where conventional bearings have not been practical.
Ceramic Bearings are highly heat resistant enabling a rolling bearing to be practical in a high temperature environment. The low density of ceramic decreases the centrifugal force induced by rolling elements (balls or rollers) contributing to an increased speed of the apparatus.

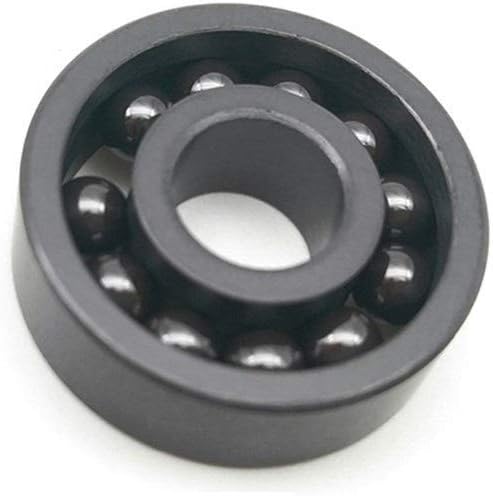

Model Number: 6204 MAX Bearing
Material: Full Si3 Ceramic
Bearing Type: Ball
For Load Direction: Radial
Construction: Single Row
Seal Type: OPEN
Part Number: 6204
For Shaft Diameter: 20mm
Bore Dia (d): 20 mm
For Housing ID: 47mm
Outer Dia (D): 47 mm
Width (B): 14 mm
Ring Material: Si3N4 Ceramic
Ball Material: Si3N4 Ceramic
Lubrication: NO Grease
Shaft Mount Type: Press Fit
