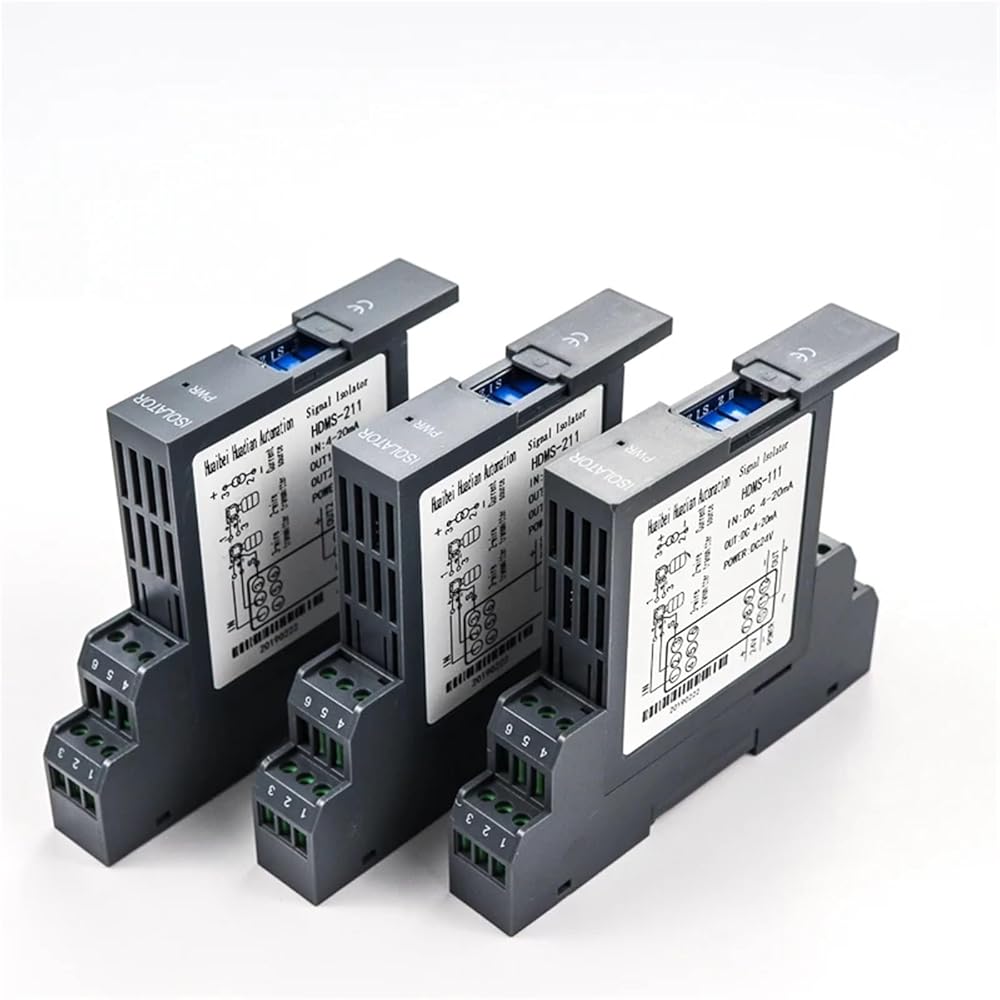

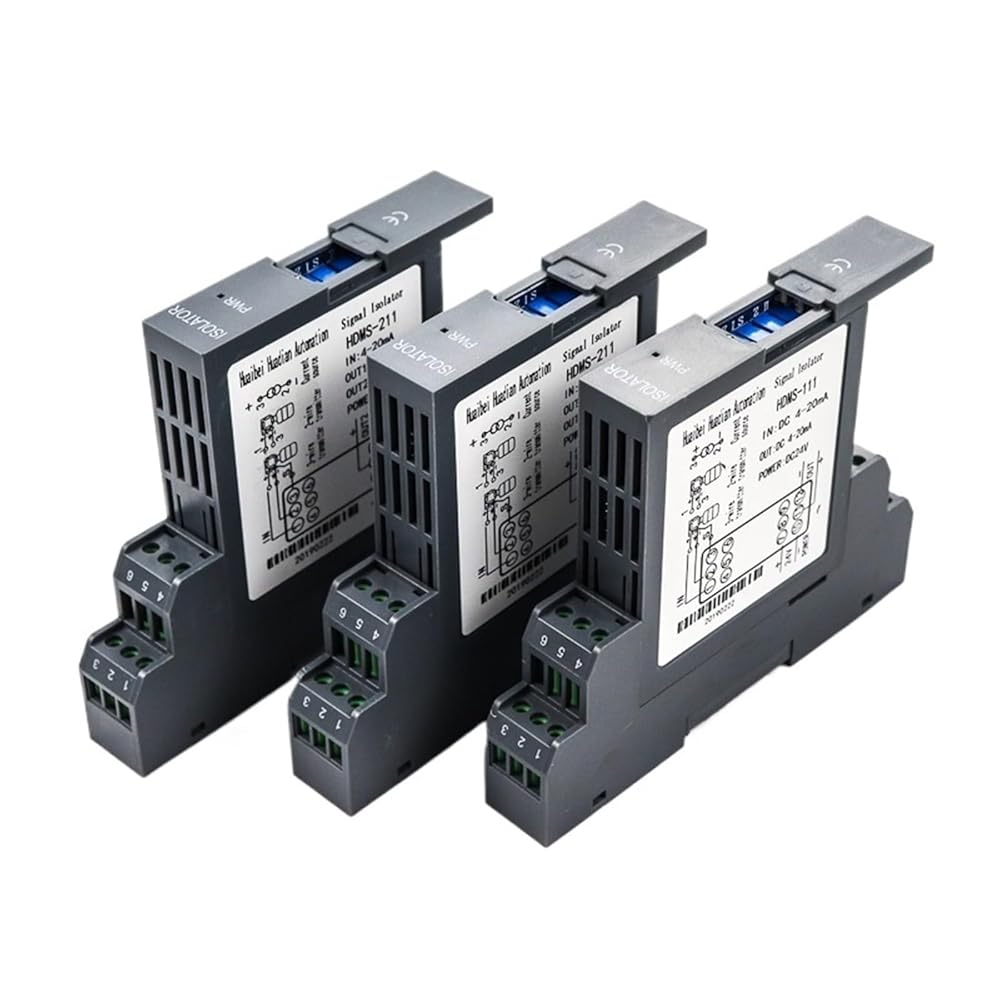

DC Analog 4-20mA Galvanic Signal Converter Isolator 0-10V Signal Isolation Signal Isolator
Product description
This apparatus provides isolated power supply to the field two-wire, three-wire transmitter, and detects the current signal in a circuit meanwhile. It transmits the input current or voltage signal to isolated current or voltage signal in a circuit or two isolated circuits, and the input, output, and power supply are galvanically isolated from each other.
It can be used together with modular instrumentation and DCS, PLC and other systems,to offer signal isolation, signal conversion, signal distribution, signal processing and otherfunctions to field instrument, thereby enhancing the immunity of automatic control system in the industrial production process, and ensuring system stability and reliability. This product has many varieties, such as 1 in/1 out, 1 in/2 out, 1 in/4 out,2 in/2 out, with input/output magnetic isolation.
==========
High-concerned chemical : None
is_customized : Yes
Output Current : DC24V
Output Frequency : 50Hz

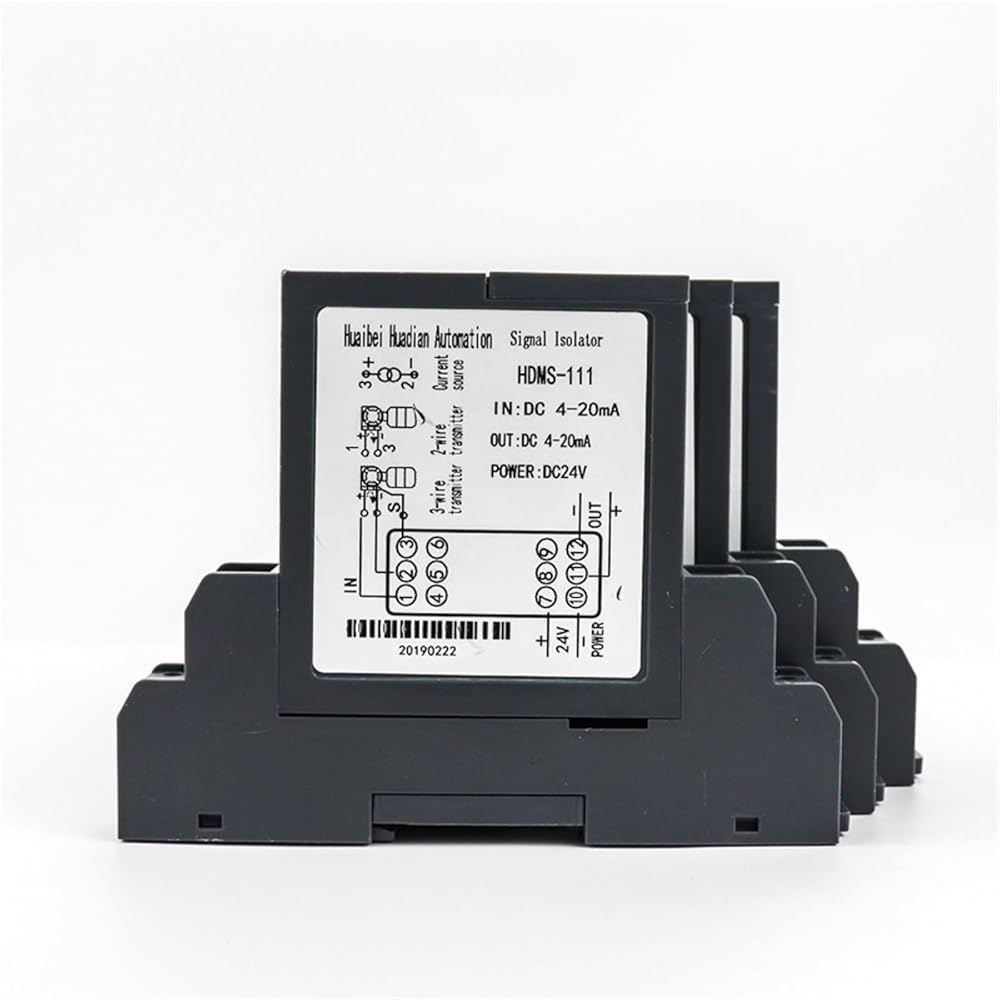

Model Number : HDMS
Type : DC/DC Converters
Weight : 1KG
Size : 18*122*96mm
Output Type : 4-20mA, 1-5V,0-10V etc
Origin : Mainland China
Channels : One in one out , one in two out

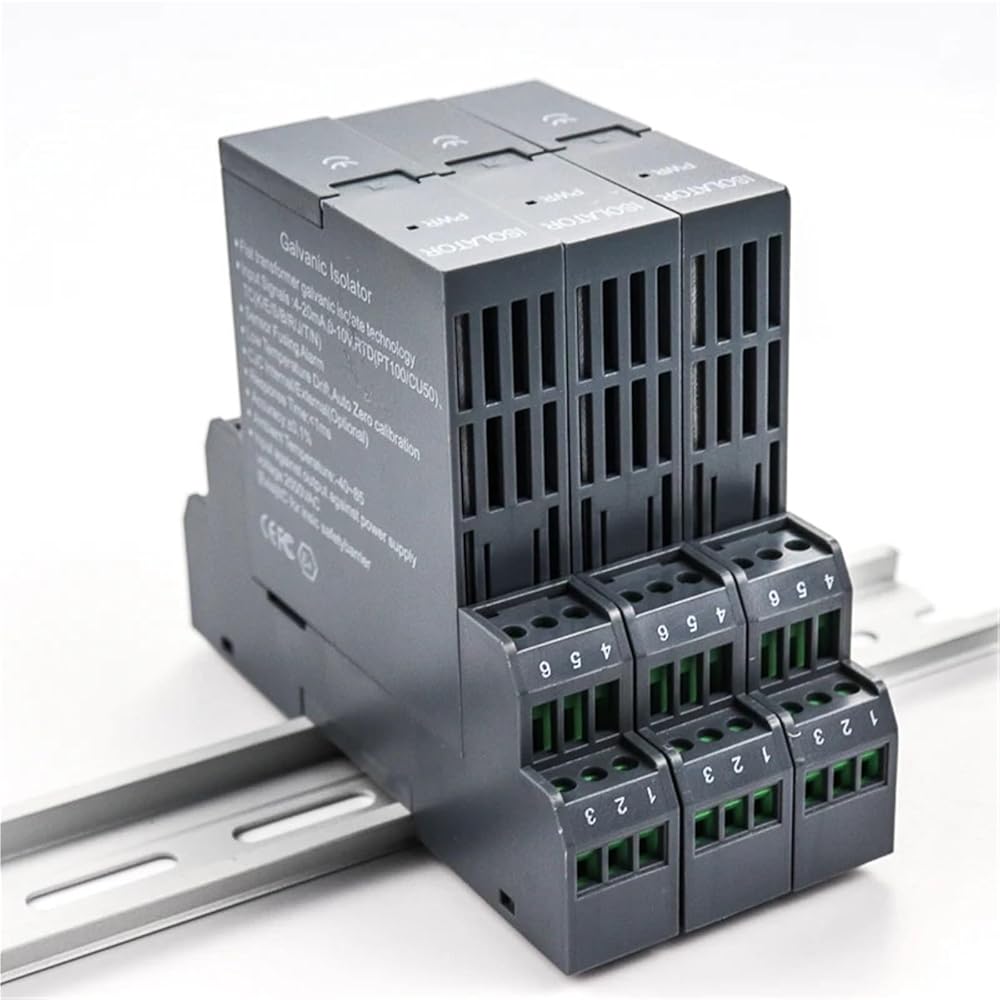

Installation : 35mm DIN rail
Linearity : 0.1%
Accuracy : 0.1%F.S
Insulation intensity : 3kv/50HZ, one min
Temperature drift : 40ppm/C
Response time : 10ms
Characteristics : Active or passive output switchable
Product name : DC Analog Signal Isolator
