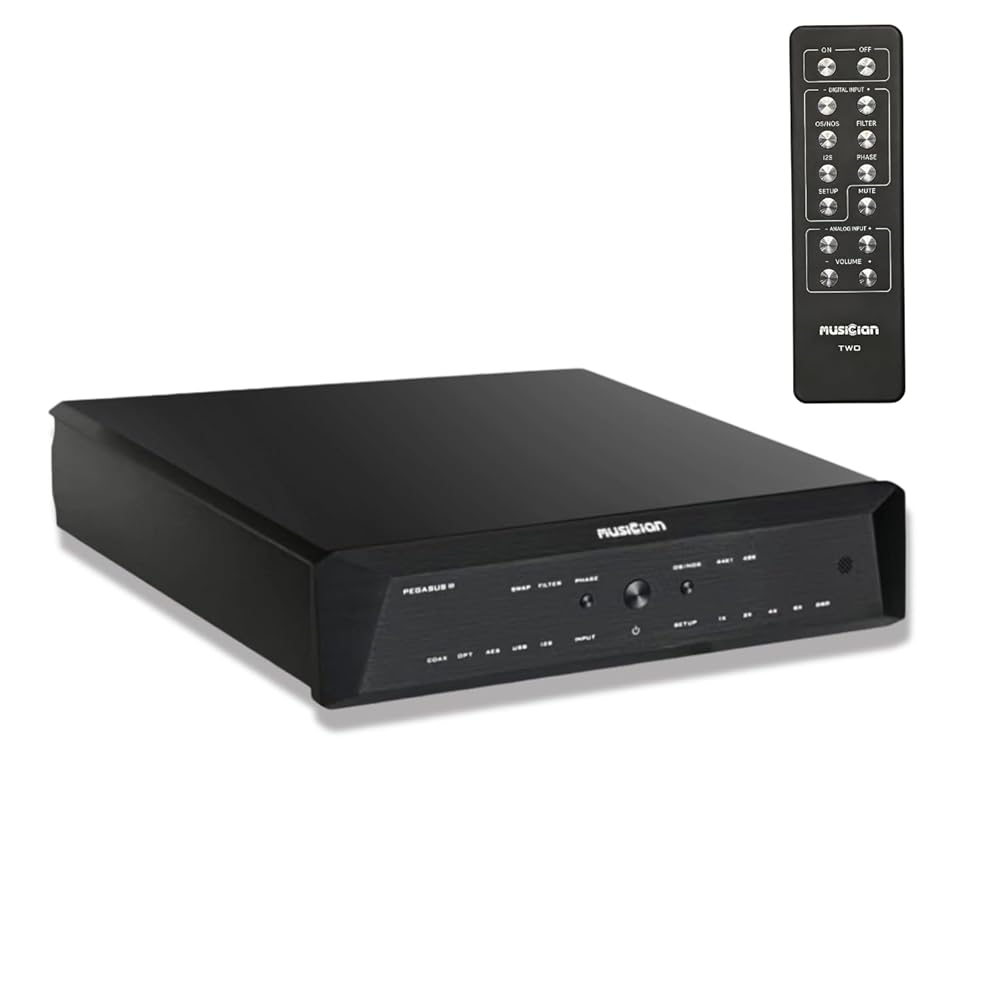

Musician Pegasus III R2R DAC
Pegasus III brings notable upgrades across hardware design, audio tuning, and user experience compared to Pegasus II. It delivers substantial improvements in overall performance. Below are the key highlights:
Ultra-Low Phase Noise TCXO Oscillators: Equipped with two plug-in full-size high-precision custom TCXO oscillators, offering superior clock stability and digital signal transmission accuracy to Pegasus II, laying a solid foundation for high-resolution audio playback.
New Remote Control: Supports remote operation of multiple functions for simple and convenient use.
Analog Output Level: RCA: 2.0Vrms; XLR: 4Vrms
Analog Output Impedance: RCA: 625Ω; XLR: 1250Ω
Frequency Response: 20Hz-75kHz (+/-3dB)
Distortion: Signal-to-Noise Ratio: ≥120dB (A-weighted)
Dynamic Range: ≥121dB
Stereo Crosstalk: ≥110dB
AC Power Requirement: 115V/60Hz; 230V/50Hz (Auto Voltage Switching)
Total Power Consumption: ≤20W
Dimensions: 280 x 250 x 50mm
Net Weight: 3.9Kg

DSD & PCM Compatibility
DSD:
All inputs support DSD64-DoP
USB and I2S inputs support DSD1024
PCM:
All inputs support 24bit/192KHz
USB input supports 1536KHz; I2S input supports 768KHz
Sampling Modes:
Native Rate NOS / Oversampling OS
Digital Audio Input Interfaces (5 Total)
COAX (Coaxial): Features stable transmission, ideal for short-distance connections, and delivers reliable audio quality.
OPT (Optical): Standard optical digital input interface.
AES: Balanced digital input interface.
I2S (HDMI Standard Cable): Equipped with 8 wiring sequence options to match products from different manufacturers (see function setting instructions for details). Important Note: Do not plug or unplug the cable when the device is powered on to avoid electrostatic damage.
USB: Universal Serial Bus interface for convenient digital audio transmission.
