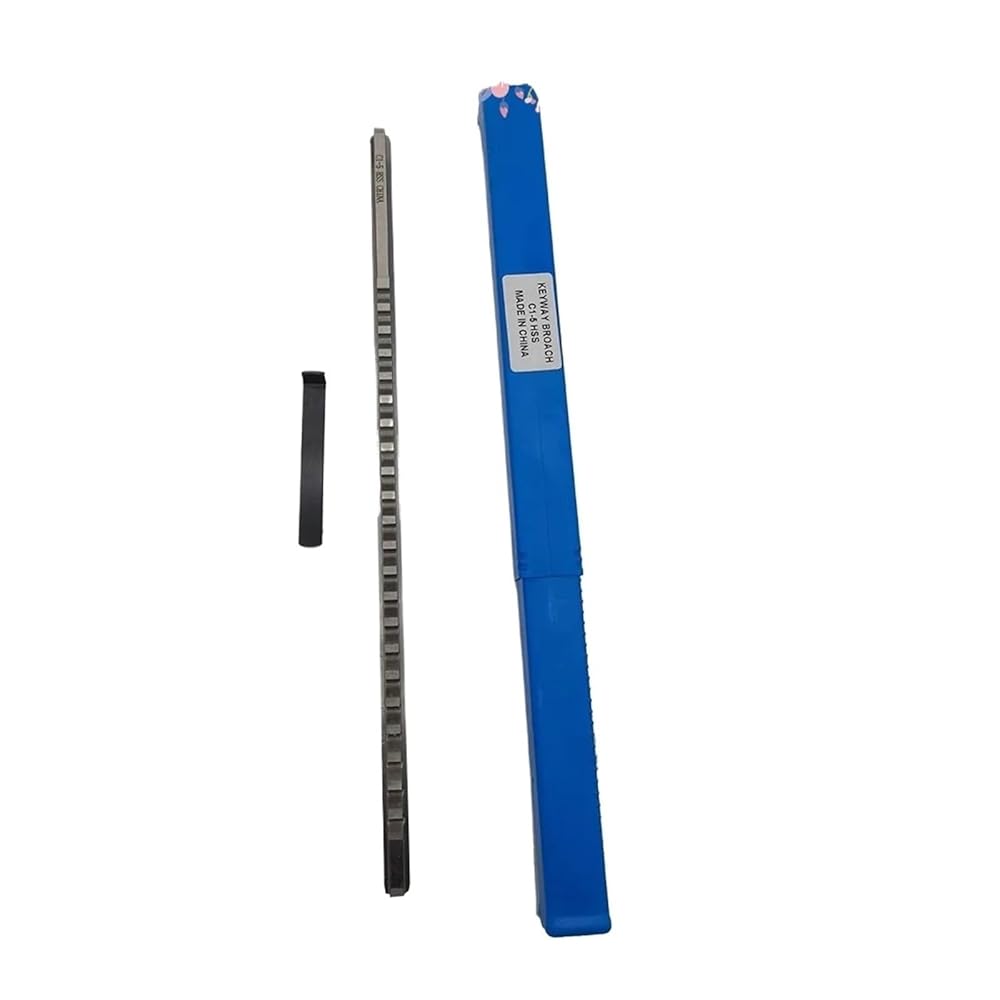

1. The C Push-Type HSS Keyway Broach is crafted from high-speed steel (HSS)
2. Featuring a user-friendly push-type design, this keyway broach simplifies the cutting process
3. This keyway broach comes in multiple styles including C1-5, C1-6, and C1-8, accommodating a wide range of keyway sizes from 25/64" to 2 1/2"
4. Designed with an innovative shim broaching cutter, the C Push-Type Keyway Broach enhances cutting efficiency and accuracy
5. The C Push-Type HSS Keyway Broach is an essential tool
وصف
Broach Size:C1-5
Style:C
The first tooth (mm):16.38
Precision Blade (mm):15.15
Force body X length (mm):9.64X298.5
Keyk (mm):b=5.0
1 Length of Cut* min.-max.:25/64-2 1/2
Broach Size:C1-6
Style:C
The first tooth (mm):16.64
Precision Blade (mm):15.02
Force body X length (mm):9.64X298.5
Keyk (mm):b=6.01
Length of Cut* min.-max.:25/64-2 1/2
Broach Size:C1-8
Style:C
The first tooth (mm):15.95
Precision Blade (mm):14.62
Force body X length (mm):9.64X298.5
Keyk (mm):b=8.01
Length of Cut* min.-max.:25/64-2 1/2
Broach Size:1/4C
Style:C
The first tooth (mm):15.02
Precision Blade (mm):16.64
Force body X length (mm):9.64X298
Keyk (mm):b=6.38
Length of Cut* min.-max.:25/64-21/2
Broach Size:3/8C
Style:C
The first tooth (mm):14.5
Precision Blade (mm):15.98
Force body X length (mm):9.64X298
Keyk (mm):b=9.563
Length of Cut* min.-max.:25/64-21/2
Broach Size:3/16C
Style:C
The first tooth (mm):15.145
Precision Blade (mm):16.38
Force body X length (mm):9.64X298
Keyk (mm):b=4.79
Length of Cut* min.-max.:25/64-21/2
Broach Size:5/16C
Style:C
The first tooth (mm):14.62
Precision Blade (mm):15.95
Force body X length (mm):9.64X298
Keyk (mm):b=7.97
Length of Cut* min.-max.:25/64-21/2
