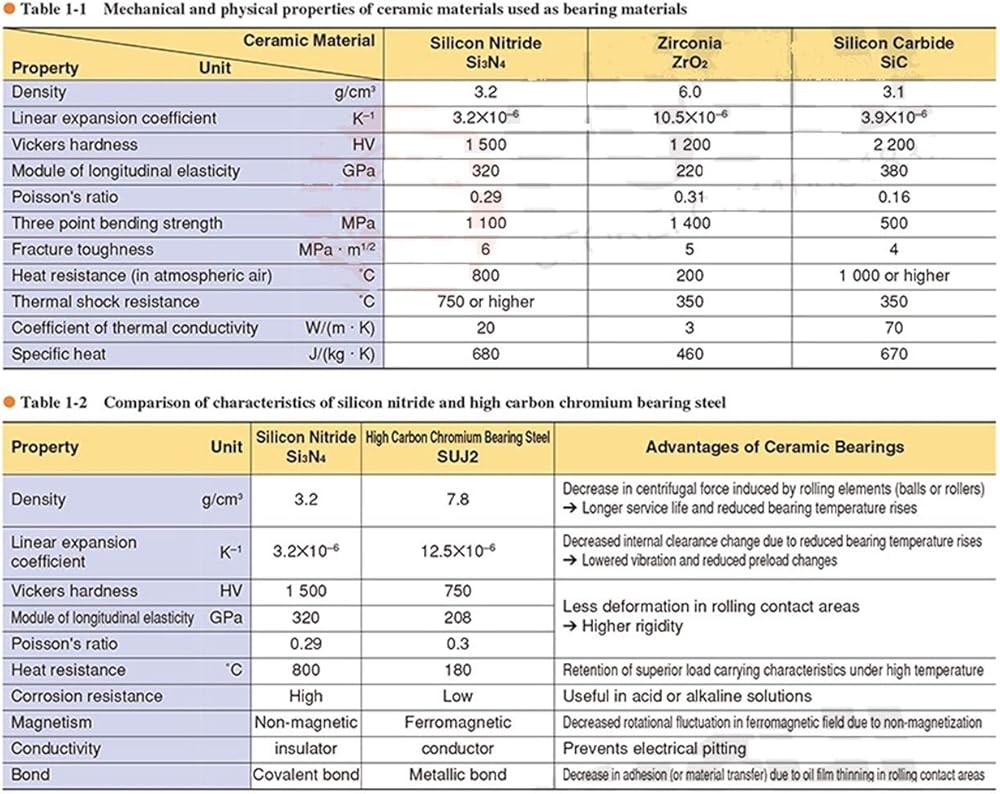

Properties of Full Cearmic Materials
Ceramic Bearings, including components made from ceramic, have the special properties that steel bearings do not have, such as being non-magnetic or insulating. They can be used in new applications where conventional bearings have not been practical.
Ceramic Bearings are highly heat resistant, enabling a rolling bearing to be practical in a high temperature environment. The low density of ceramic decreases the centrifugal force induced by rolling elements (balls or rollers), contributing to an increased speed of the apparatus.

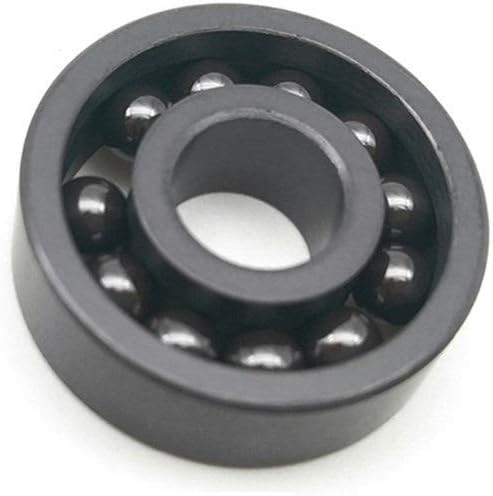

Model Number: 625 MAX Bearing
Material: Full Si3 Ceramic
Bearing Type: Ball
For Load Direction: Radial
Construction: Single Row
Seal Type: OPEN
Part Number: 625
For Shaft Diameter: 5mm
Bore Dia (d): 5 mm
For Housing ID: 16mm
Outer Dia (D): 16 mm
Width (B): 5 mm
Ring Material: Si3N4 Ceramic
Ball Material: Si3N4 Ceramic
Lubrication: NO Grease
Shaft Mount Type: Press Fit
Widely used in household appliances, garden machinery, outdoor vehicles, industrial production, etc. Suitable for skateboards, longboards, inline skates, scooters, robots, ship rudder axles, etc.
Features: small friction, fast speed, smooth, low noise.
