1 & 100 pulse 5v MPG Pendant Handwheel JMPG5
The interfaces of different models of controllers are different Please pay attention to selecting the model of the matching controller interface when placing an order. If you have special needs, please contact us.

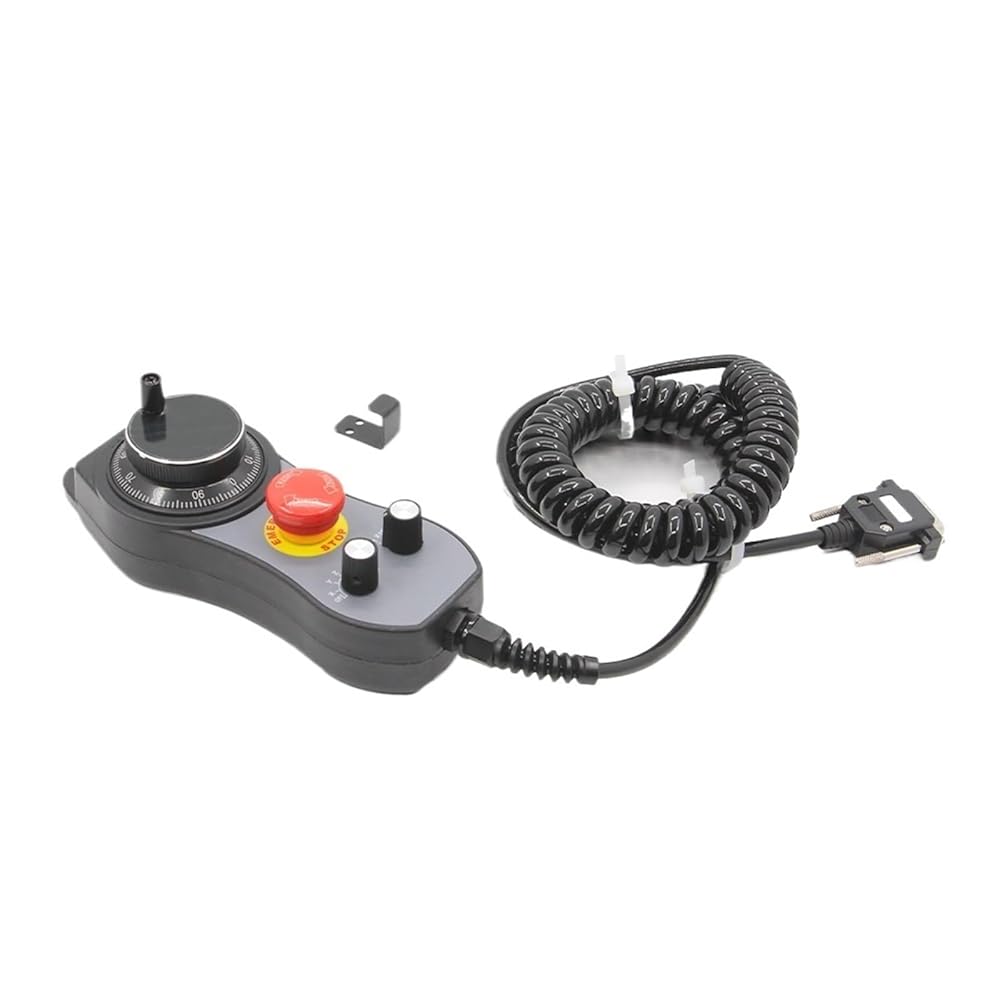

The CNC 4 Axis handheld controller MPG Pendant with x1, x10, x100 selectable, You are bidding one complete unit of the MPG pendant with Emergency stop for 4 axis CNC machine, it equipped with our popular machined MPG unit with 4 axis and scale selector, LED indicator also send feedback from the CNC machine to user about the status of the unit.
All Wiring isolated from MPG unit and provide a easy to install wiring diagram, it suit both commercial machine as a replacement jog control unit or other computer based controller. Which add great control flexibility to the system.
Resolution
100PPR
Power
5v
Current
80mA
Output Voltage
Output H is high level: VCC-2.5V
Output is low and high level: 0.4v
Axis
X,Y,Z,A
Ratio
x1,x10,x100
Max response frequency
100Khz
