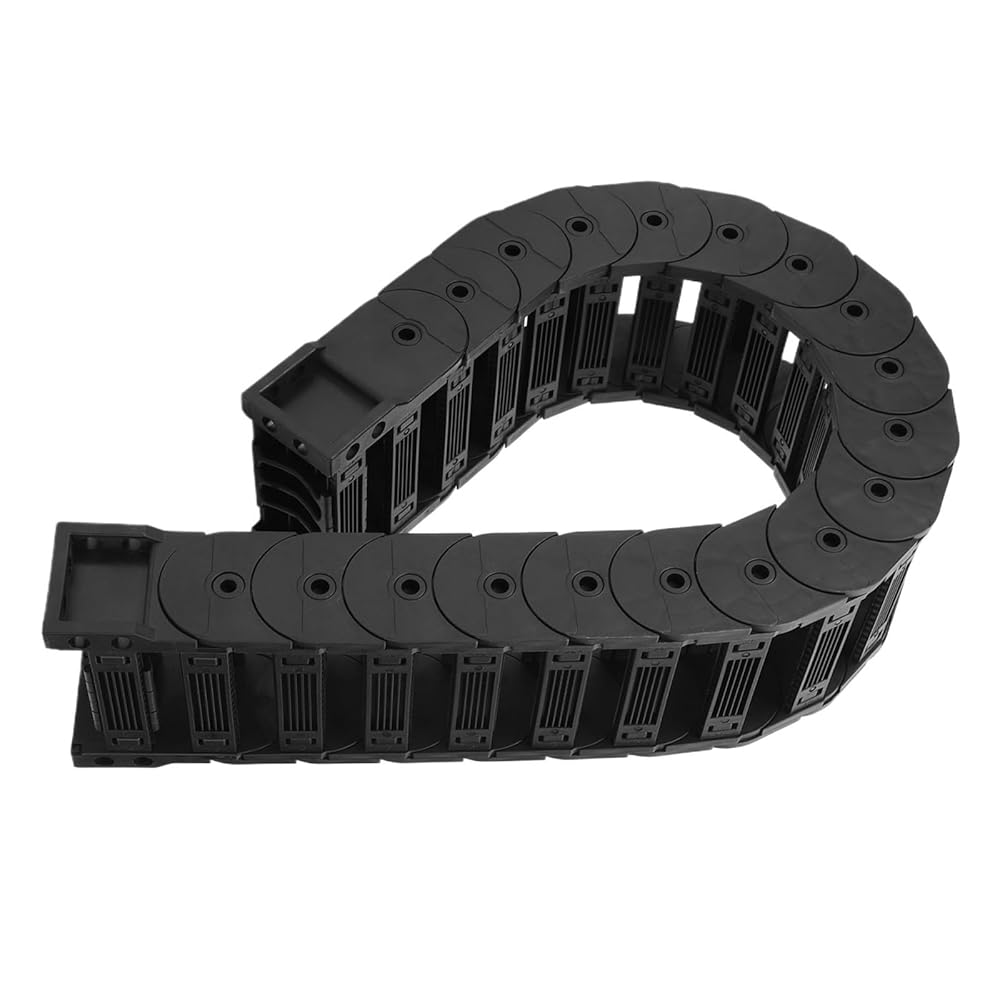

Silent Chains
Length: Approx. 0.7meter / 2.3ft/1meter / 3.3ft (can be disassembled and assembled at any length)
Working Temperature: -25~100
Model Inner height x inner width/mm)(Approx.) 6Outer height x Outer width/mm(Approx.) Turning radius/R (mm)(Approx.) Connector length /mm(Approx.) Pitch/mm(Approx.)
D35 x 25 35 x 25mm / 1.4 x 1in 50 x 41mm / 2 x 1.6in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in200mm / 7.9in 63.5mm / 2.5in 33.5mm / 1.3in
D35 x 38 35 x 38mm / 1.4 x 1.5in 50 x 54mm / 2 x 2.1in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in200mm / 7.9in 63.5mm / 2.5in 33.5mm / 1.3in
D35 x 50 35 x 50mm / 1.4 x 2in 50 x 66mm / 2 x 2.6in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in200mm / 7.9in 63.5mm / 2.5in 33.5mm / 1.3in
D35 x 57 35 x 57mm / 1.4 x 2.2in 50 x 73mm / 2 x 2.9in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in200mm / 7.9in 63.5mm / 2.5in 33.5mm / 1.3in
D35 x 60 35 x 60mm / 1.4 x 2.4in 50 x 76mm / 2 x 3in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in200mm / 7.9in 63.5mm / 2.5in 33.5mm / 1.3in
D35 x 75 35 x 75mm / 1.4 x 3in 50 x 91mm / 2 x 3.6in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in200mm / 7.9in 63.5mm / 2.5in 33.5mm / 1.3in
D35 x 77 35 x 77mm / 1.4 x 3in 50 x 93mm / 2 x 3.7in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in200mm / 7.9in 63.5mm / 2.5in 33.5mm / 1.3in
D35 x 100 35 x 100mm / 1.4 x 3.9in 50 x 116mm / 2 x 4.6in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in200mm / 7.9in 63.5mm / 2.5in 33.5mm / 1.3in
D35 x 125 35 x 125mm / 1.4 x 4.9in 50 x 141mm / 2 x 5.6in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in200mm / 7.9in 63.5mm / 2.5in 33.5mm / 1.3in
Package List:
1 x Cable Drag Chain
