Tekbox TBOH01 شبكة تثبيت معاوقة الخط 5μH - CISPR 25 in Kuwait

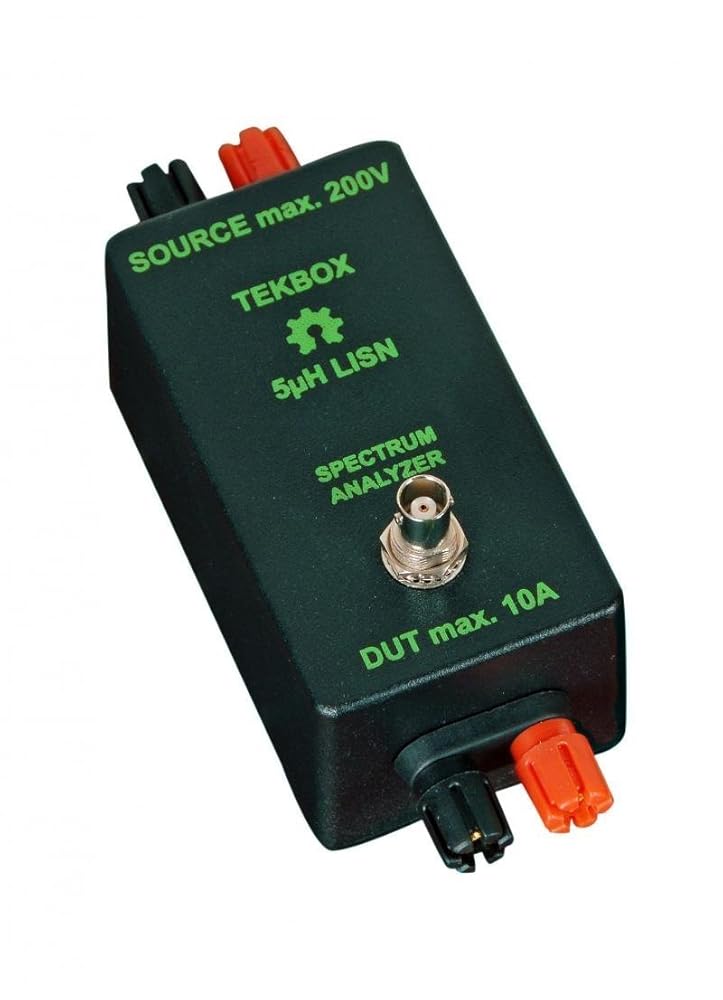

Tekbox TBOH01 شبكة تثبيت معاوقة الخط 5μH - CISPR 25

KWD 121
– 1 +

مميزات خاصة

  • Frequency range: 100kHz – 110MHz (1GHz, see figure 4 in the manual)
  • DC Resistance: 60 m?
  • Maximum current: 10A
  • Maximum source voltage: 200V

وصف

The TBOH01 5µH LISN is a device required to setup conducted noise mesurements of DC-powered devices. It is designed to be used for EMC pre-testing in the frequency range of 150kHz to 110 MHz.The LISN is inserted into the supply line of the DUT (Device Under Test). Conducted noise which is present at the supply terminals of the DUT can be measured at the BNC connector using a spectrum analyzer or a measurement receiver. The source (supply) terminal and the DUT terminal are decoupled by a 5µH inductor.
