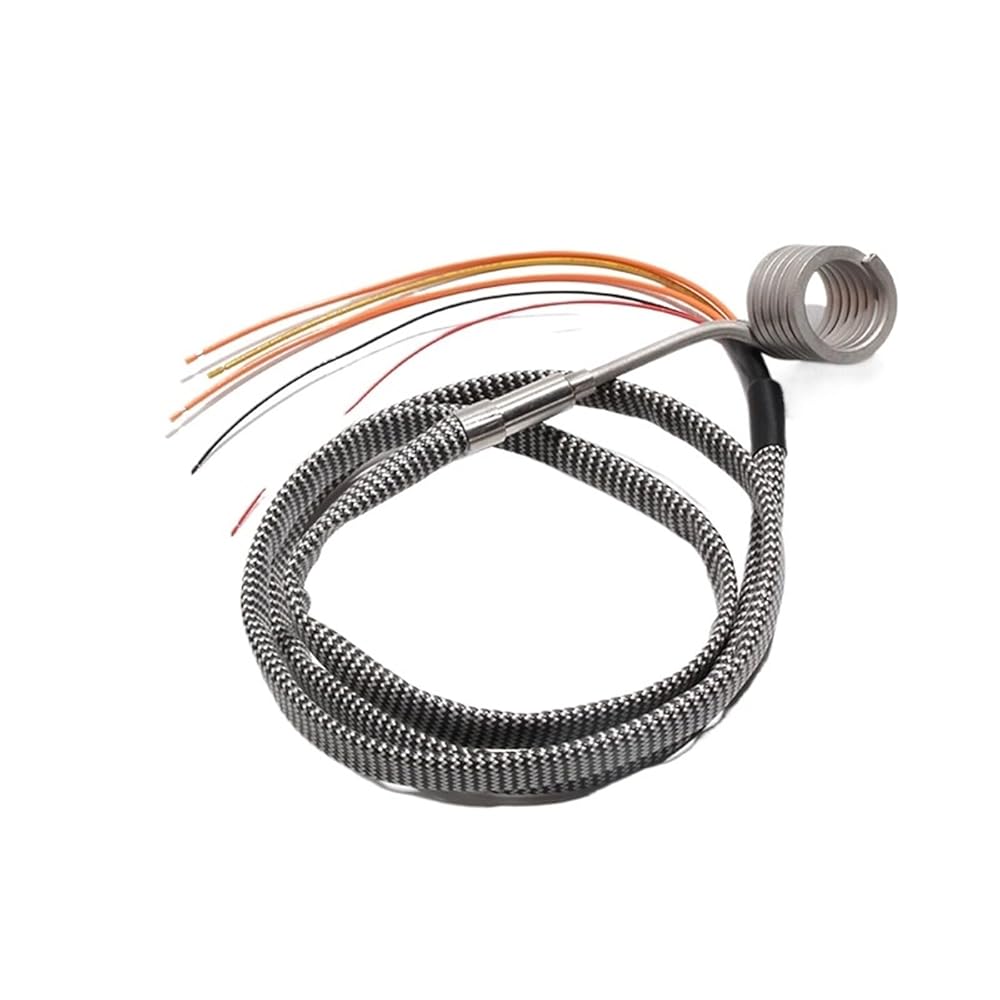

18x25-45mm Electric Hot Runner Nozzle Band-Heaters with K Thermocouple 3x3mm for Blow Molding Machines 1pc
Specially designed for hot runner, it is made of stainless steel material and strict process technology, with various shapes of circular, square, and flat sections, and can be equipped with K-type J or E-type thermocouples.
The hot runner is used for high-temperature heating of injection components in the plastic industry. This product is made of closed stainless steel, effectively preventing leakage and damage, and the temperature is absolutely ideal for the user.
1. Material:Stainless steel
2.Voltage: 110V/220V
3.ID*H:18X25mm 18x30mm 18x35mm 18x40mm 18x50mm
4.Wattage:350-600W
5.Cross section: 3x3mm
6.With thermocouple: Yes,K type,(if you need J/E type,please contact us)
7.With Grounding wire:Yes
8.Lead Wire: 1M length
9.Temperature Range:0-500
10.Package:1PC hot runner coil heater according to you choose
Pay attention: Power Allowance-10%~+5%
Application:
1. Product features: This product has the advantages of easy installation, fast heat transfer, good insulation, and production not limited by models and specifications,long service life and is not easily burnt out
2. Product use:Widely applicable to injection molding machines, vacuum molding machines, drying machines, sheet metal machines, and bottle blowing machines...
Different specifications can be customized according to your requirements!
Installation and Use
01. Before installation, use a multimeter to test whether the heating coil is powered on. If there are no issues with the measurement, then install it. If the measurement is not powered on, please contact wih us.
02. The heating ring must be in close contact with the mold. The tighter the contact, the higher the thermal efficiency and the faster the heating rate.
03.When wiring, make sure to tighten it. After tightening, it is best to forcefully pull down the power cord by hand, otherwise poor contact may cause ignition and tripping
Origin : Mainland China
Type : Electric Water Heater Parts
Product Name : Hot runner coil heater
Material : stainless steel
Inner Diameter : 18mm
Height : 25-45mm
Wire Length : 1M
Power : 200-350W
