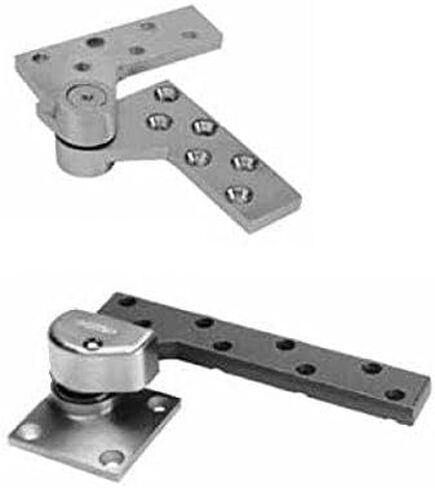

• Standard top pivot L180 included
• ML19 intermediate pivot required (order separately)
• Bottom pivot mounts directly to floor
• Doors with lead lining under the skin should also use this product.
• Screw holes in top pivot and bottom arm spaced to straddle lead lining in the middle of the door
• Non-ferrous base material
• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot
• Available to accommodate lead in door thicknesses 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), or 3" (76mm) – specify when ordering
• 3/4" (19mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Furnished with wood and machine screws
• Extended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standard
• Doors will swing 180°, trim permitting
