مميزات خاصة

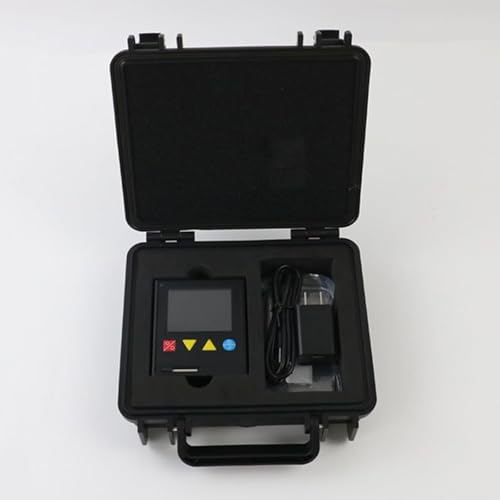

Ready to Use: Comes with a complete standard kit including the Roughness Meter main unit. Start professional surface roughness testing immediately upon receipt.

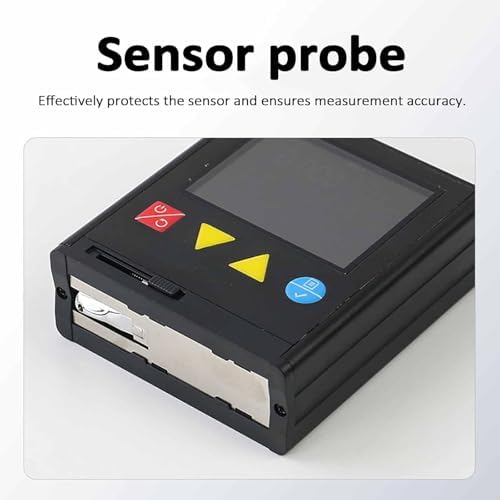

High-Precision Measurement: Specially structured protective sensor probe resists impact for stable accuracy. Features an ultra-fine 10μm diamond stylus and ultra-light measuring force (<0.016N) for reliable results.

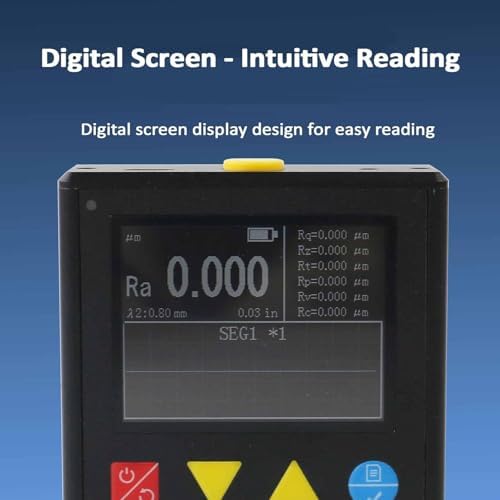

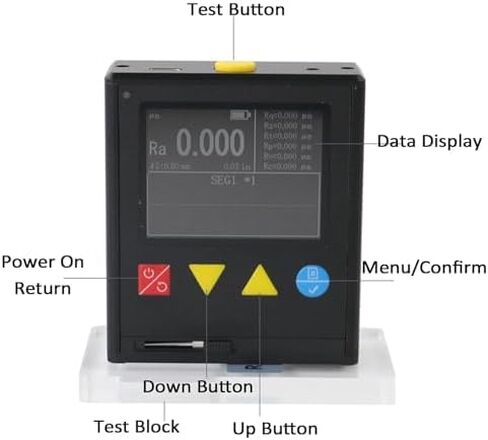

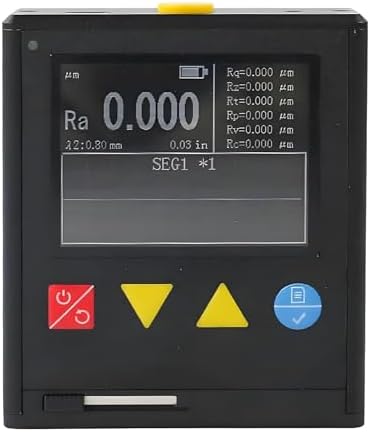

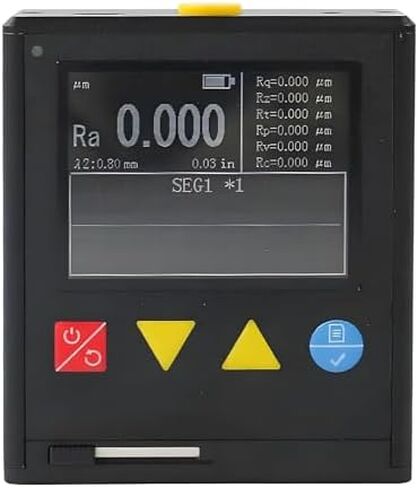

High-Definition Digital Display: Clear digital screen enables one-click reading of core parameters (Ra, Rz) for enhanced detection efficiency and precision.
Multi-Parameter & Multi-Sampling Compatibility: Measures 4 key roughness parameters (Ra, Rz, Rq, Rt) with 3 sampling lengths (0.25/0.80/2.50mm) for various surface measurement needs.

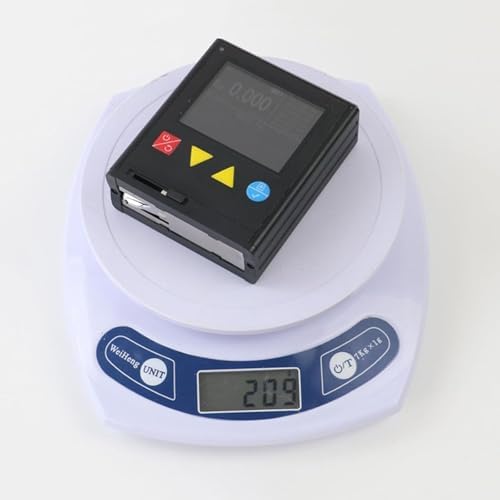

Portable & Long-Lasting Design: Ultra-lightweight (220g) and compact (732862mm) for easy storage, ideal for fieldwork. Built-in rechargeable lithium-ion battery eliminates frequent replacements.

وصف

Specifications:
Name: Surface Roughness Tester
Measurement Parameters (µm): Ra/RZ/Rq/RtRP/RV/RC
Stroke Length (mm): 5.6
Sampling Length (mm): 0.25/0.80/2.50
Evaluation Length (mm): 1.25, 4.0
Measurement Range (µm): Ra, Rq: 0.05-10.0; Rz, Rt, Rp, Rv, Rc: 0.1~50
Indication Error: ±10%
Indication Repeatability: Sensor Stylus Tip Radius and Angle: Tip Radius: 10 µm ± 1 µm; Angle: 90°
Sensor Stylus Static Force and its Rate of Change: Stylus Static Force: Sensor Guide Head Pressure: 0.5N
Battery: Lithium-ion rechargeable battery
Dimensions: 73 mm * 28 mm * 62 mm mm Weight: 220g

Package includes:
Surface Roughness Tester * 1
