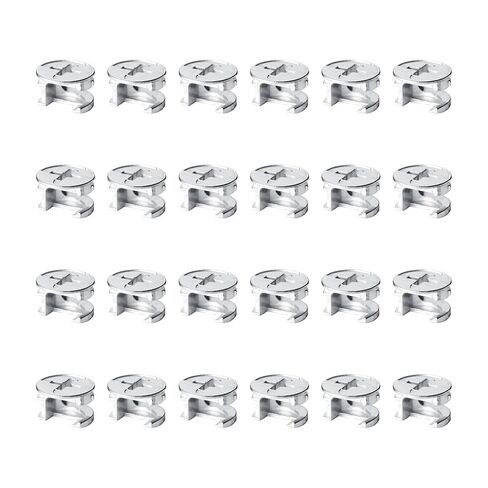

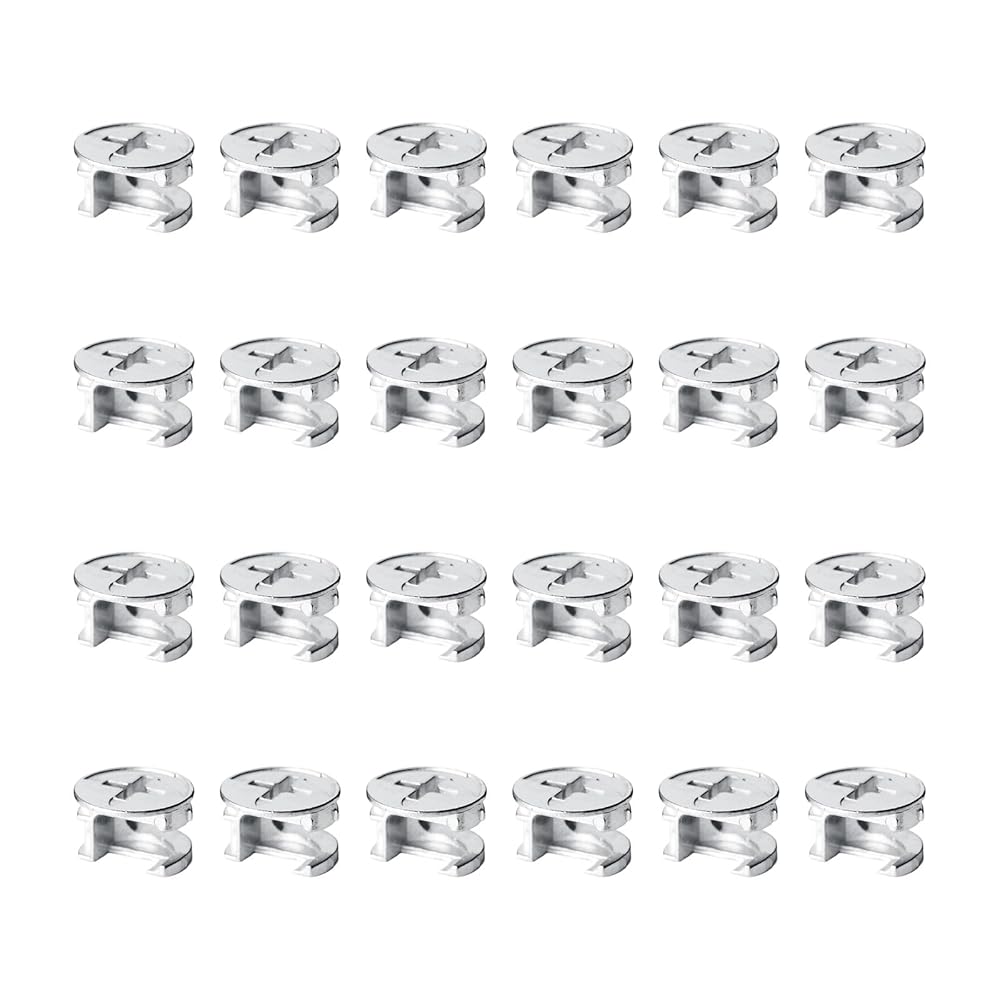

Replacement Zinc Cam Locks
Durable Metal Cam Locks for Flat‑Pack Furniture Repair

Specifications
- Material: Zinc Alloy
- Color: Silver

Features
1. Made of high‑strength zinc alloy, these metal cam locks offer superior grip compared to plastic alternatives. They tighten securely without bending or breaking.
2. Ideal for replacing missing or broken cam locks in flat‑pack furniture. Perfect for repairing drawers, cabinets, wardrobes, and shelves to extend the life of your furniture.
3. Designed as part of a three‑in‑one connector system. Requires use with positioning pins and nuts for proper installation.

Installation Instructions
Step 1:
Pre‑drill mounting holes according to the actual installation dimensions of each component. Install the three‑in‑one components, then insert the cam lock nut. Ensure the side groove of the nut aligns with the screw cap of the connecting rod to lock securely. The surface of the cross groove should be flush with the board surface, not protruding.

Step 2:
After confirming all accessories and panels are in the correct position, use a Phillips screwdriver to turn the cam lock nut following the “+” and “–” marks on its surface. If no marks are present, rotate the nut approximately 90 degrees (1/4 turn) until locked. Do not overtighten, as excessive torque may damage the nut.

Note
These cam locks are designed for use with standard flat‑pack furniture hardware. Please ensure compatibility before purchase.
