Built-in signal generator function, which can output multiple waveforms such as sine wave, square wave, triangle wave, etc., with a fixed amplitude of 3V and a frequency of 0-2Mhz accurately adjustable. It can be used for probe calibration, DIY circuit op amp debugging, and auxiliary learning of oscilloscopes

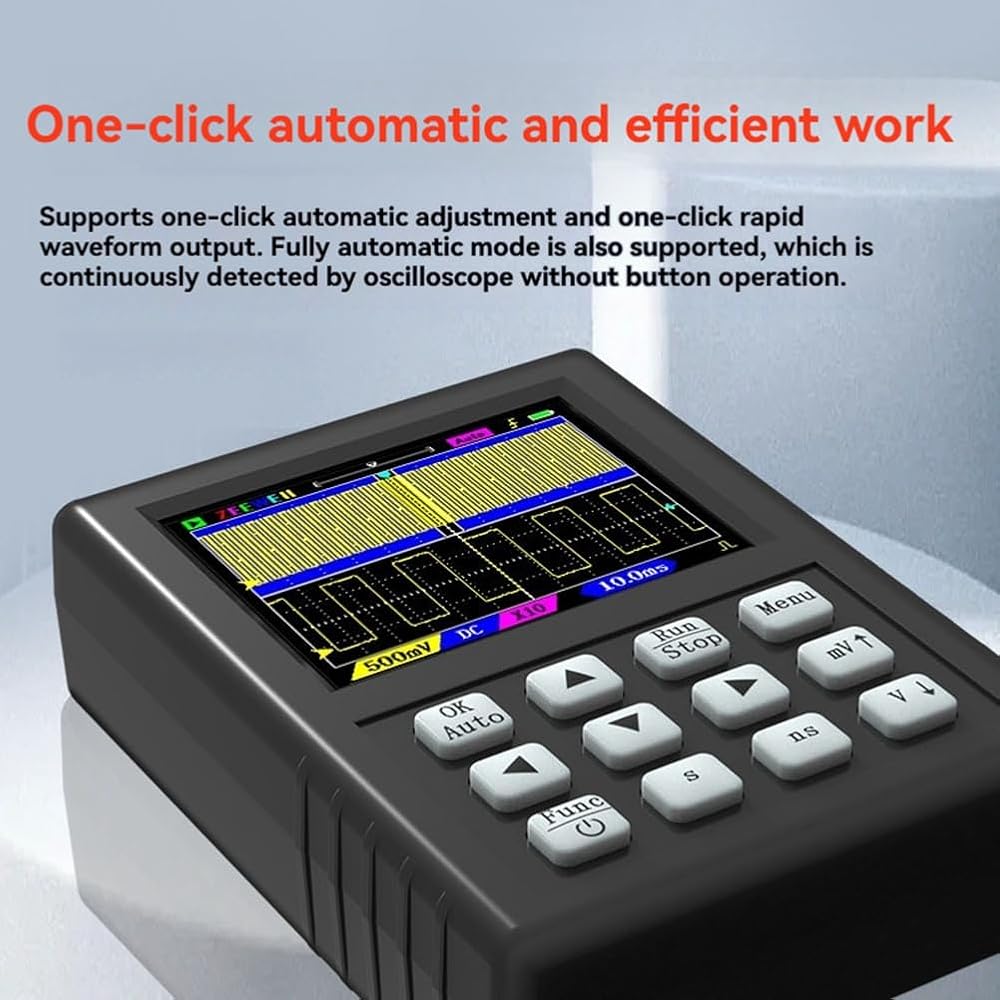

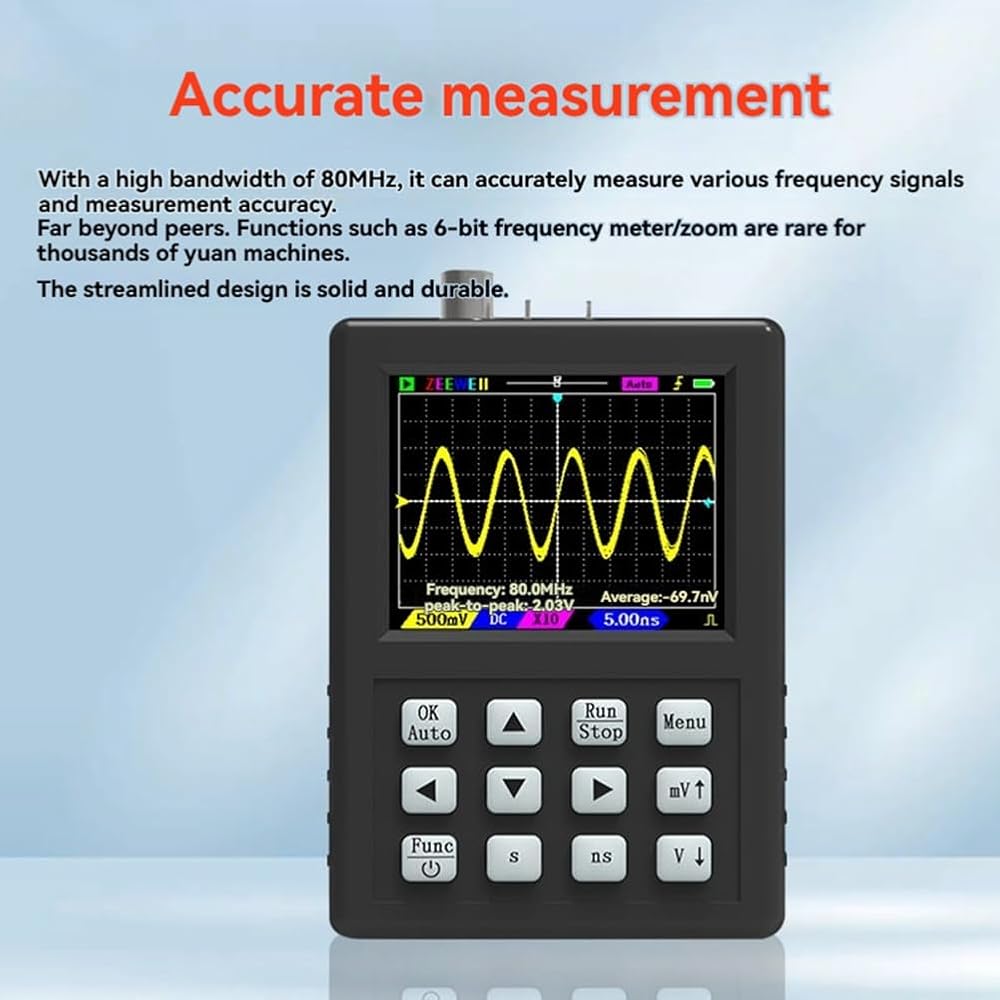

Accurate measurement Easy to use Built-in metal shielding ensures that the waveform is not Supports full-automatic mode and one-key automatic, and novices can quickly get started

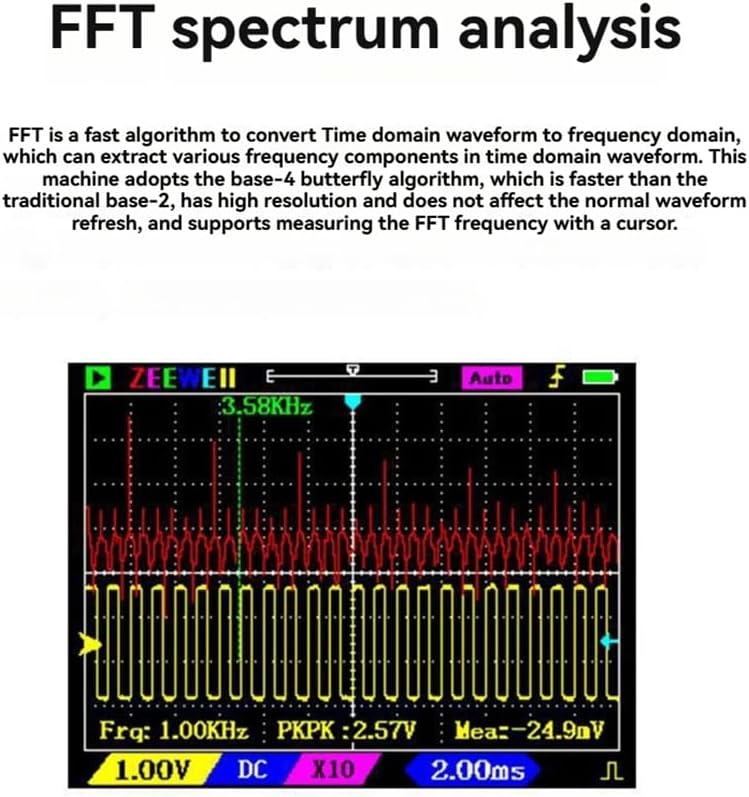

spectrum analysis is a fast algorithm that converts time domain waveforms to frequency domain, which can extract various frequency components in the time domain waveform. This machine uses the base-4 butterfly algorithm, which is faster than the traditional base-2, has high resolution and does not affect the normal waveform refresh, and supports frequency measurement with cursors

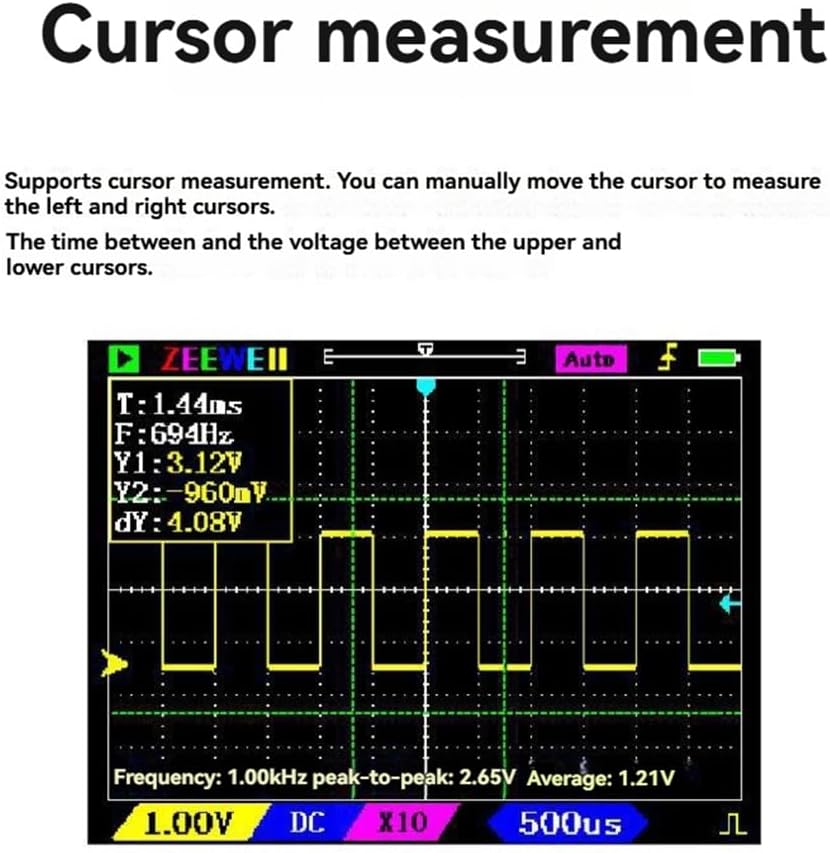

Supports cursor measurement, and the cursor can be moved manually to measure the time between the left and right cursors and the voltage between the upper and lower cursors
Portable design, very suitable for field work or laboratory use, easy-to-use interface, suitable for beginners and experienced users
وصف

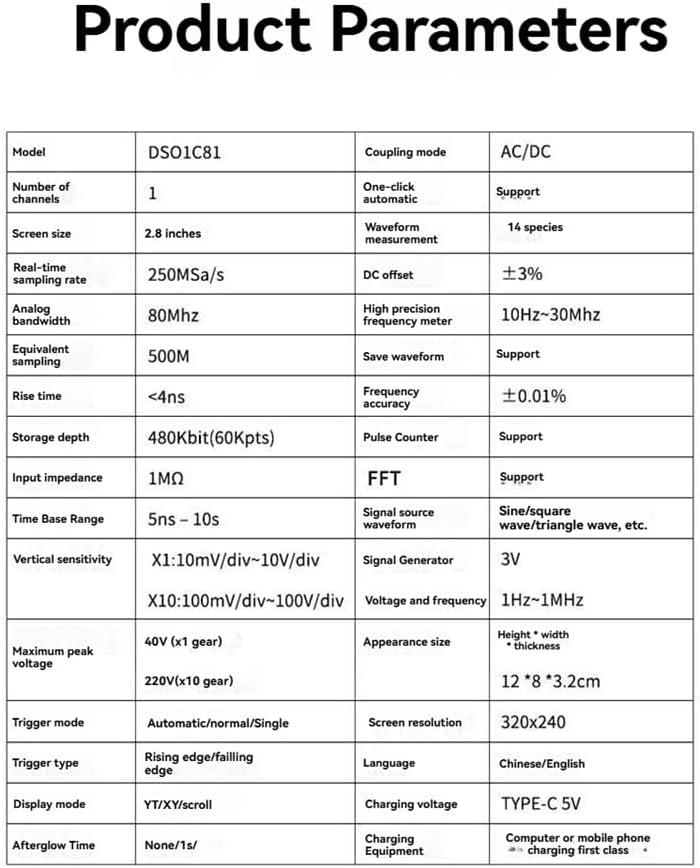

Yaregelun Number of channels: 1
Screen size: 2.8 inches
Real-time sampling rate: 250MSa/s
Analog bandwidth: 80Mhz
Equivalent sampling: 500M
Rise time: Less than 4ns
Memory depth: 480Kbit (60Kpts)
Time base range: 5ns -10s
Coupling mode:
One-key automatic: Support
Waveform measurement: 14 types
DC offset: ±3%
High- frequency meter: 10Hz-30Mhz
Waveform graph saving: Support
Frequency accuracy: ±0.01%
Pulse counter: Support
: Support
Signal source waveform: sine/square/triangle wave, etc.
Signal generator: 3V
Voltage and frequency 1Hz-1MHz
The product appearance and printed words depending on the batch, but this does not affect use
Colour:Black
Material:ABS
Package Contents:
1 x Main Unit
1 x Probe
1 x Data Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
