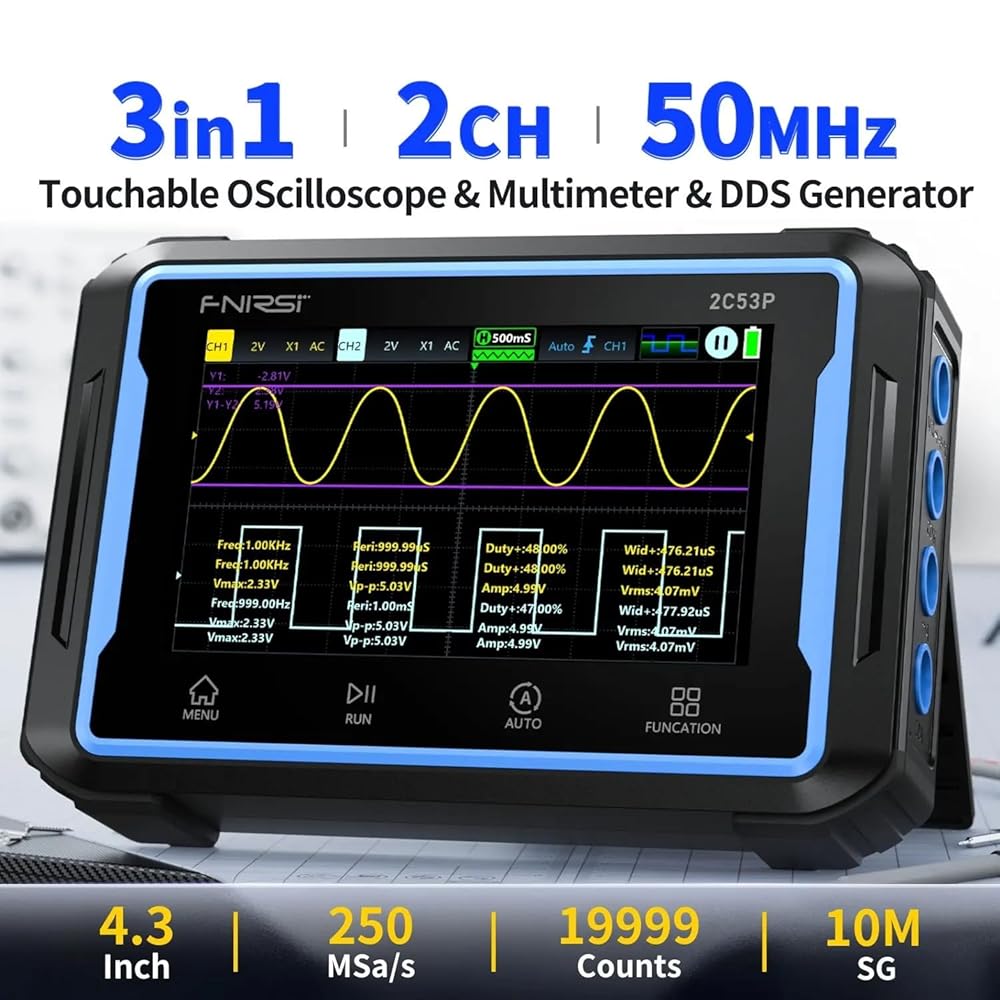

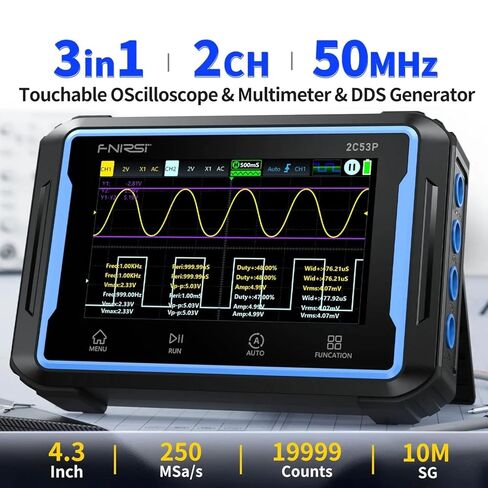

Oscilloscope
Channel：Dual channel
Analog bandwidth：50MHz
Real-time sample rate：250MSa/s
Storage depth：Up to 64kByte
Input mpedance：1MΩ
Time base range：10ns/div - 10s/div
Vertical sensitivity：10mv/div - 10v/div
Vertical resolution8 bits
Maximum measured voltage：±400V
Probe：1x/10x
torage space：13
Bandwidth limitSupport 20MHz limit
Trigger mode：AUTO/Normal/Single
Trigger type：Rising edge, Falling edge
Trigger level range：8 cells (positive/negative)

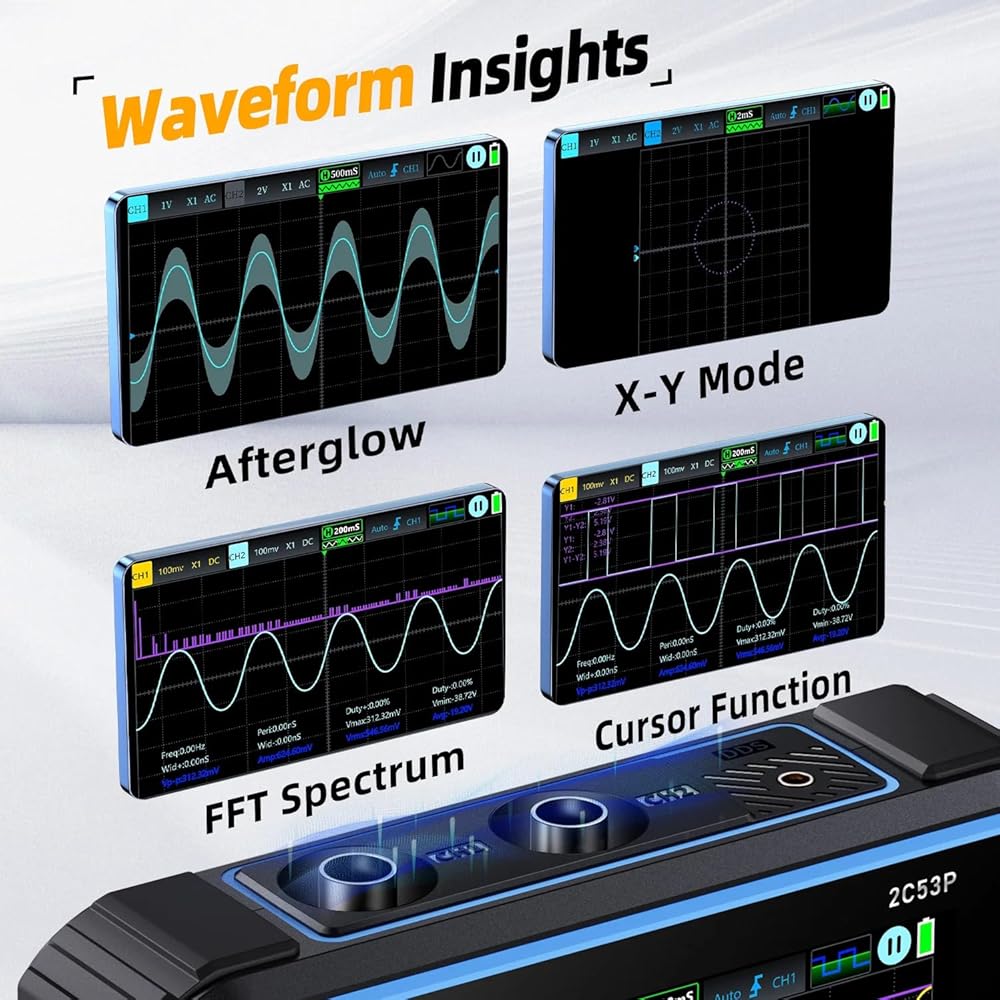

Waveform display mode：XY/YT/Scroll
Coupling method：AC/DC

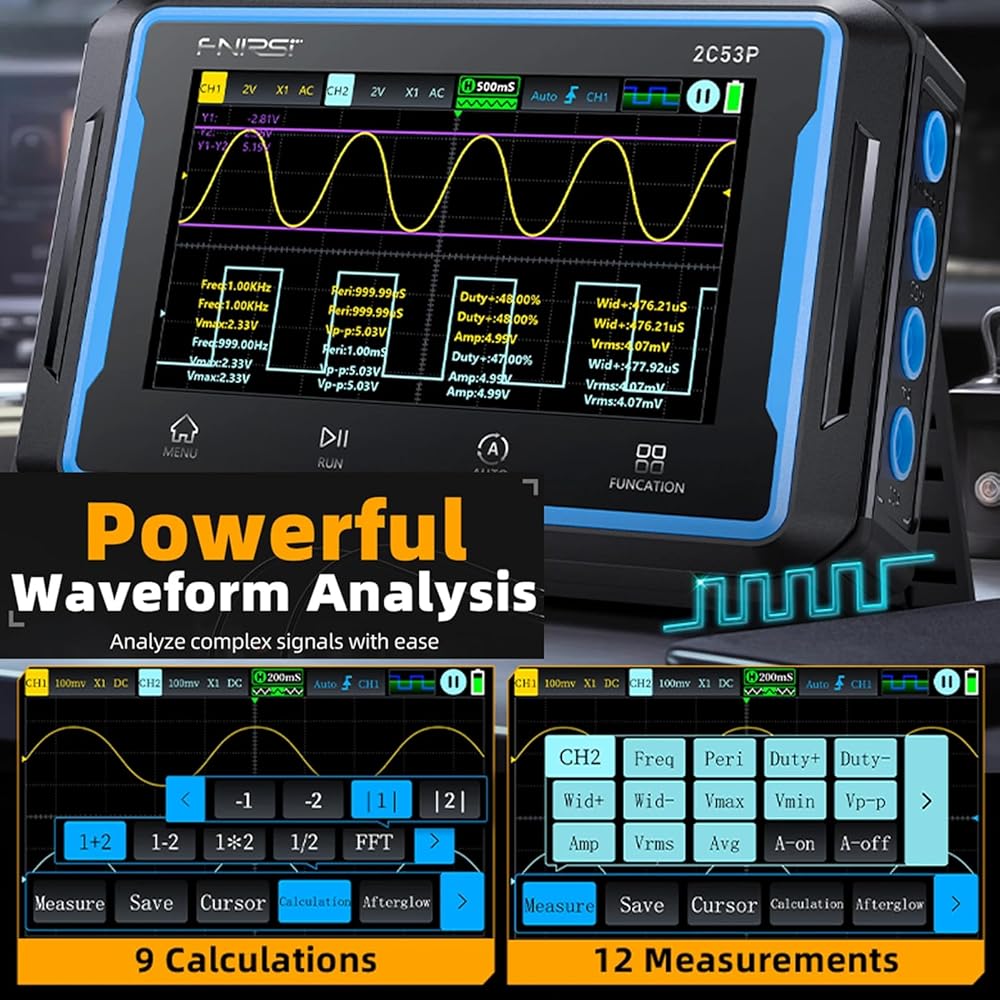

Measured data：Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width
Math alculations：1+2、1-2、1*2、1/2、-1、-2、|1|、|2|、FFT
Save waveform screenshot：Yes
Export waveform images from computer：Yes

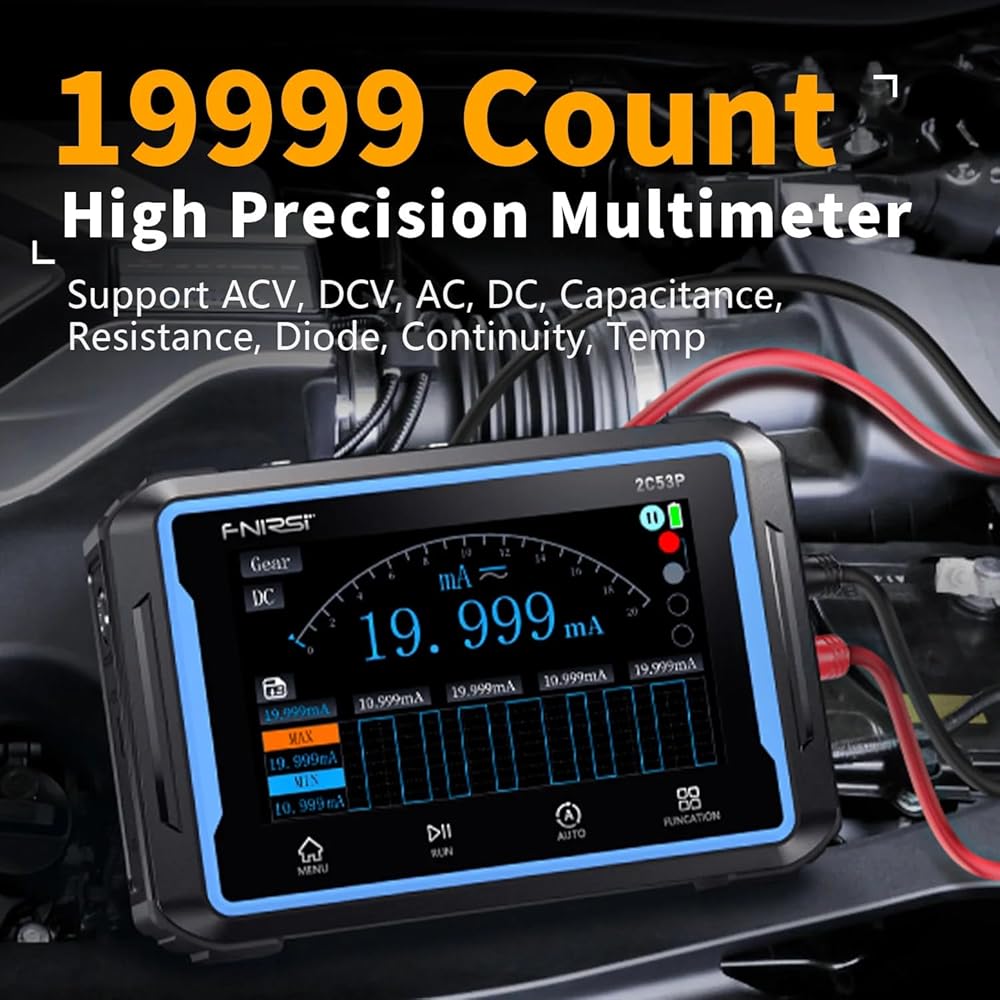

Multimeter
DC Voltage：1.9999V/19.999V/199.99V/1000.0V
AC voltage：1.9999V/19.999V/199.99V/750.0V
DC current：19.999mA/199.99mA/1.9999A/9.999A
AC current：19.999mA/199.99mA/1.9999A/9.999A
Resistance: 19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/1.9999KΩ/199.99Ω
Capacitance: 999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF
Temperature：(-55~1300℃)/(-67~2372℉)
Diode：Yes
Continuity test：Yes
Signal Generator
Channel：Single channel
Frequency：0-10MHz（Sine wave: 10MHz, other waveforms 5MHz）
Amplitude：0.1V-3.0V
Square wave duty cycle0-100%
Signal type：sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse
Basic Parameters

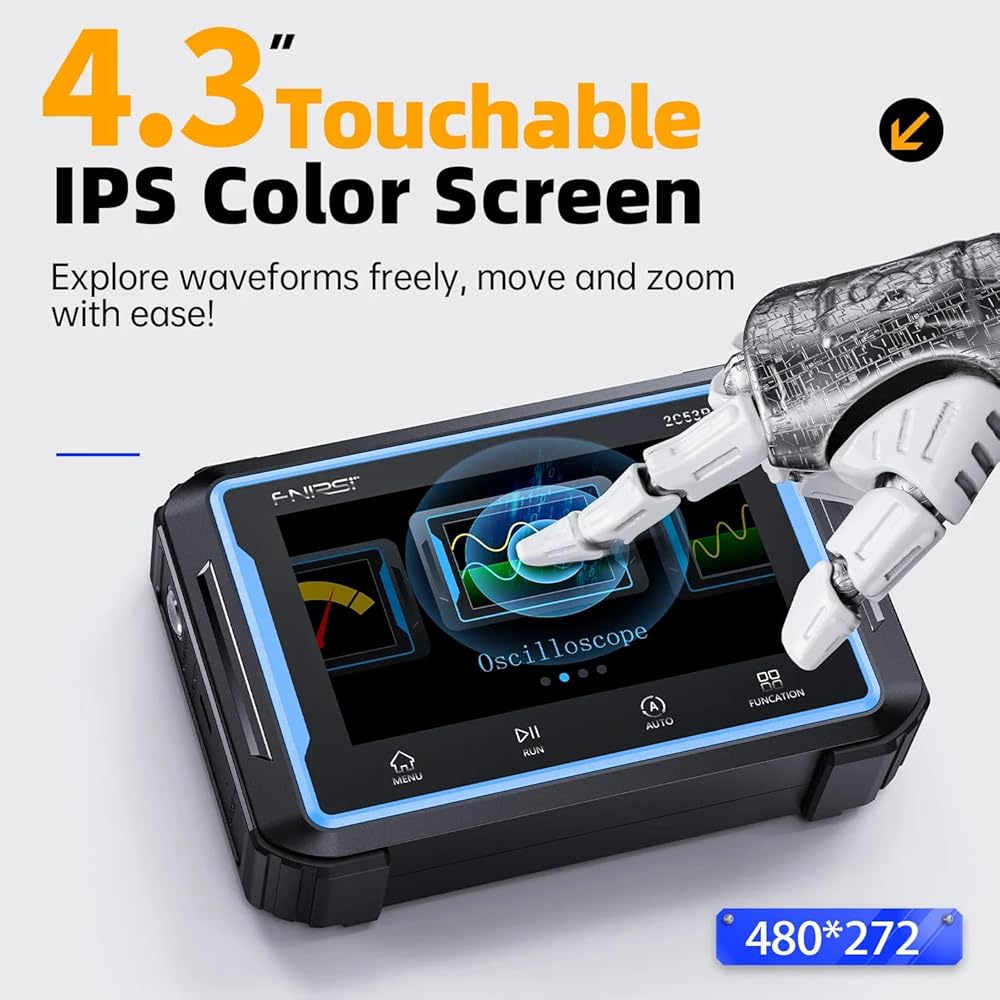

Screen size & resolution：4.3 Inch (480*272 pixels)
Screen material：Surface tempered glassSurface tempered glass + touch screen made of glass GLASS + IPS color screen
BacklightBacklight brightness can be set
Power supply：TYPE-C（5V/2A）
Battery：4000mAh lithium battery
Language：Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인
Product size：about 145x98x35mm
Product net weight：about 360g
