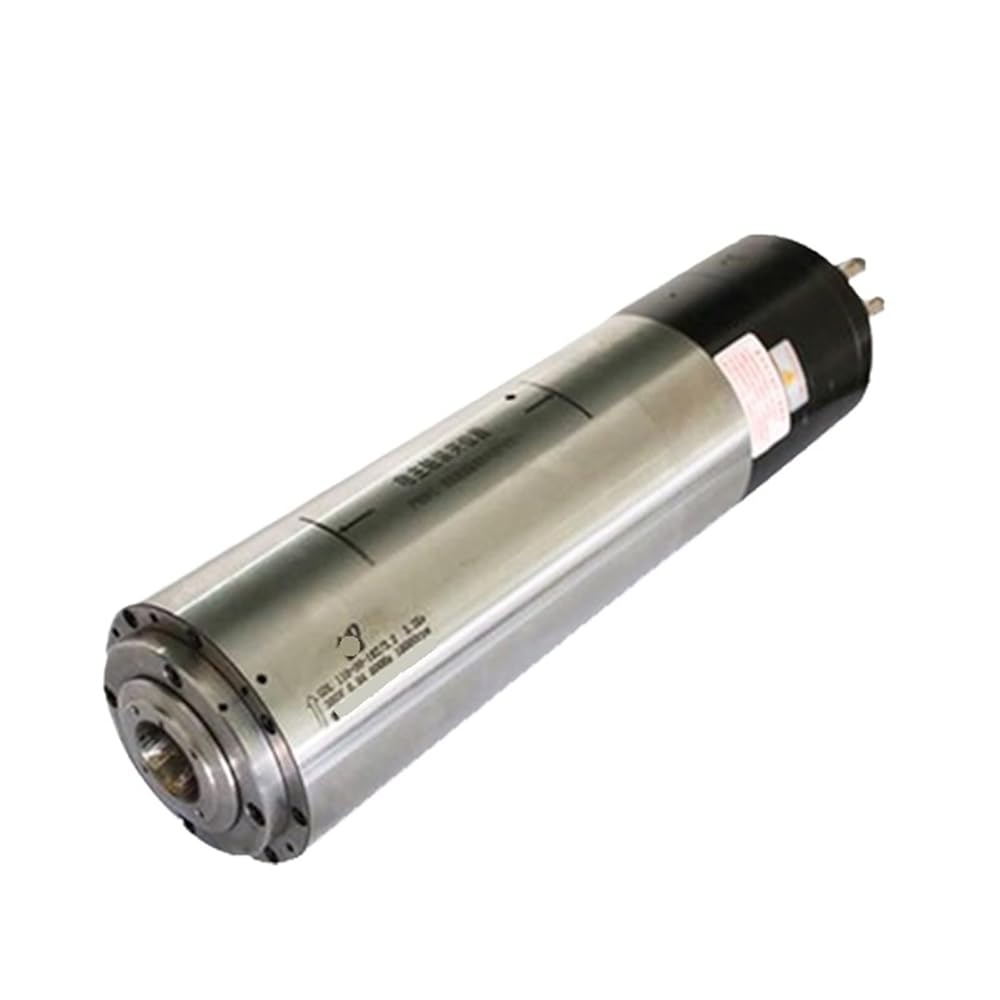

Rotary Shafts
Model: GDL100-25-24Z/2.5
Size: 100x434.5mm (body diameter: 100mm x length: 434.5mm)
Speed regulation mode: three-phase output frequency converter, the spindle speed can be changed by changing the frequency of the frequency converter.
Cooling method: water cooling
Power: 2.5kw
Voltage: 220V 380V
Current: 9.2A 5.5A
Frequency: 400Hz
Speed: 24000RPM
Diameter(mm): 100
Number of poles: 2P
Phase number: three-phase asynchronous drive
Direction of rotation: Counterclockwise from the end of the shaft
Tool handle: IS025
Pull nail: IS020-15°
