2.2kw Water-Cooled Spindle 110v / 220v 80 * 230 and Variable Frequency Drive and 80mm Bracket and 75w Pump and 8 Chucks(Ceramic Ball Bearing,220v) in Kuwait

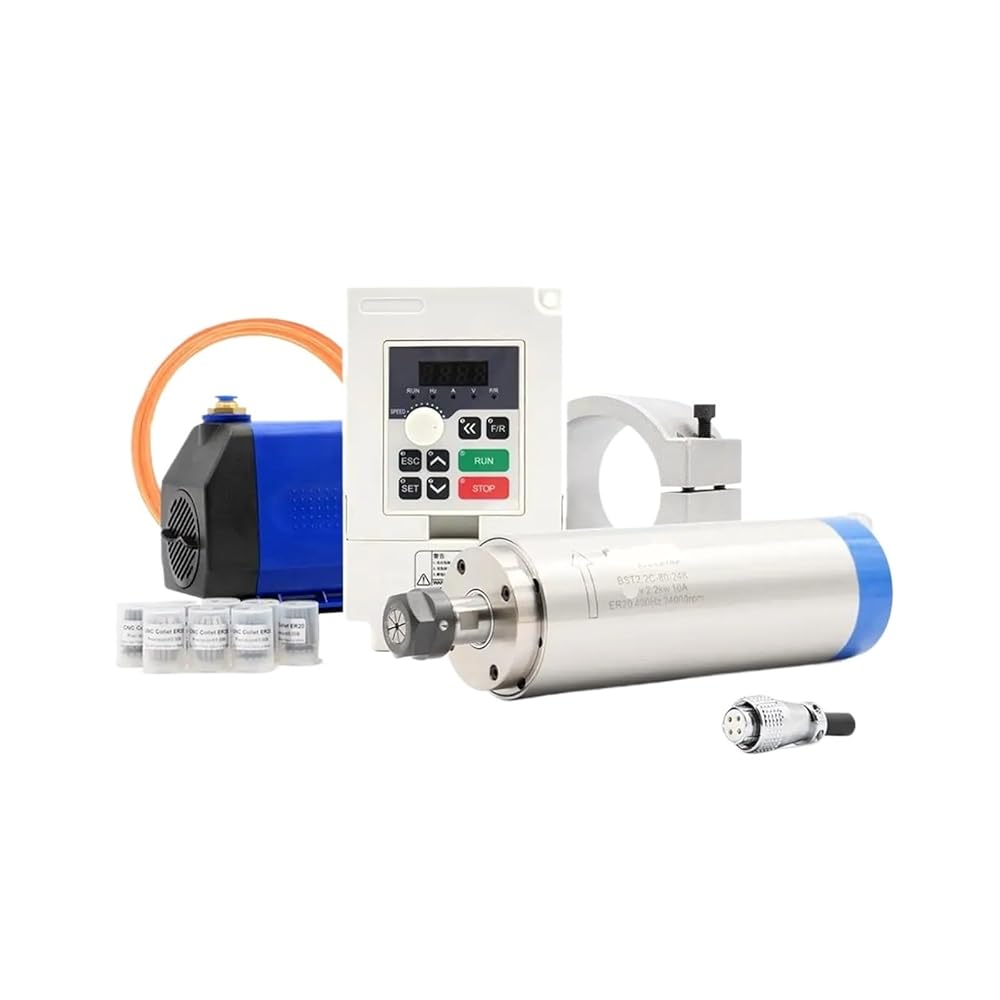

2.2kw Water-Cooled Spindle 110v / 220v 80 * 230 and Variable Frequency Drive and 80mm Bracket and 75w Pump and 8 Chucks(Ceramic Ball Bearing,220v)

KWD 422
ماركة
PHTJALIF
فئة
مهاوي
وزن
142 g
مقاس220 فولت
أسلوبمحمل كروي سيراميك
– 1 +

مميزات خاصة

  • Rotary Shafts

وصف

Rotary Shafts
1&220v 22kw ER20 4 bearing water cooled spindle
1 220V 22KW inverter
1 x 80 mm spindle clamping bracket
1 75w water pump, 5m water pipe
1 set of ER20 high precision chuck 0008mm 4, 6, 8, 10, 12, 1/2, 1/4, 1/8
Size: 80x230mm (middle body diameter: 80mmx length: 230mm)
Speed regulation method: Through the three-phase inverter output, adjust the inverter frequency to change the spindle speed.
Cooling method: water cooling

Power: 2.2kw
Voltage: 220V
Current: 10A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter(mm):80
Bearing type: 2 x 7005 P4 DT and 2 x 7002 P4 DT
4 fully sealed angular contact bearings
Chuck ER20
Clamping knife diameter 13mm12mm127mm11mm10mm9mm8mm7mm, 6.35mm, 6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm (standard 6mm)
Water-cooled ER20 chuck block
