Air-Cooled Spindle Motor 4.5kw ER25 Square with Flange 4 Bearings 18000RPM(4.5kw 220V) in Kuwait

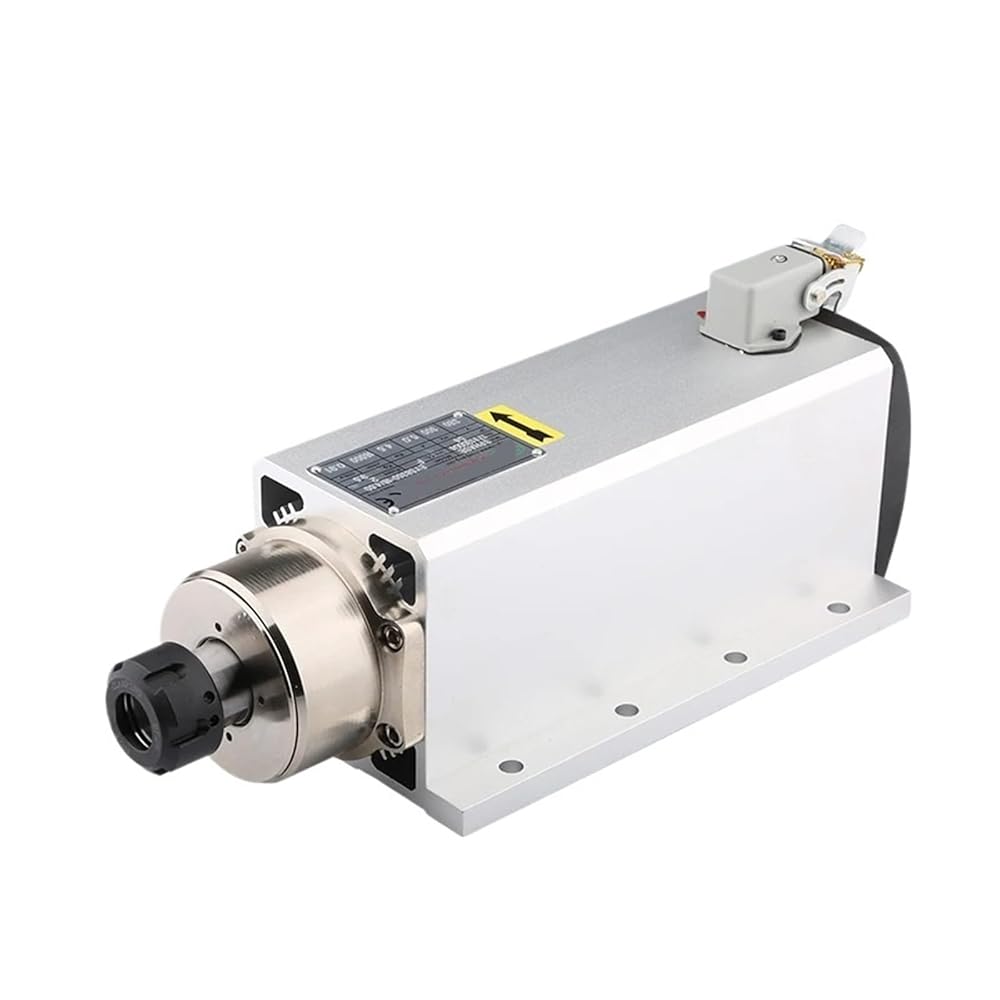

Air-Cooled Spindle Motor 4.5kw ER25 Square with Flange 4 Bearings 18000RPM(4.5kw 220V)

KWD 661
ماركة
PHTJALIF
فئة
مهاوي
وزن
120 g
مقاس4.5kw 220v
– 1 +

مميزات خاصة

  • Rotary Shafts

وصف

Rotary Shafts
Size: E8350-18/4.5
Speed regulation mode: three-phase output frequency converter, the spindle speed can be changed by changing the frequency of the frequency converter.
Cooling method: air cooling
Power interface: 6-pin square aviation plug is optional. The aviation plug is marked with "1", "2", "3", "4", "5" and "GND". "1", "2", "3" are connected to the inverter (U, V, W), and "GND" is connected to the inverter ground.
Power: 4.5kw
Voltage: 220V 380V
Current: 7A/12A
Frequency: 0-300Hz
Speed: 0-18000rpm
Runout: less than 0.01mm
4 fully sealed angular contact bearings
Chuck: ER25
