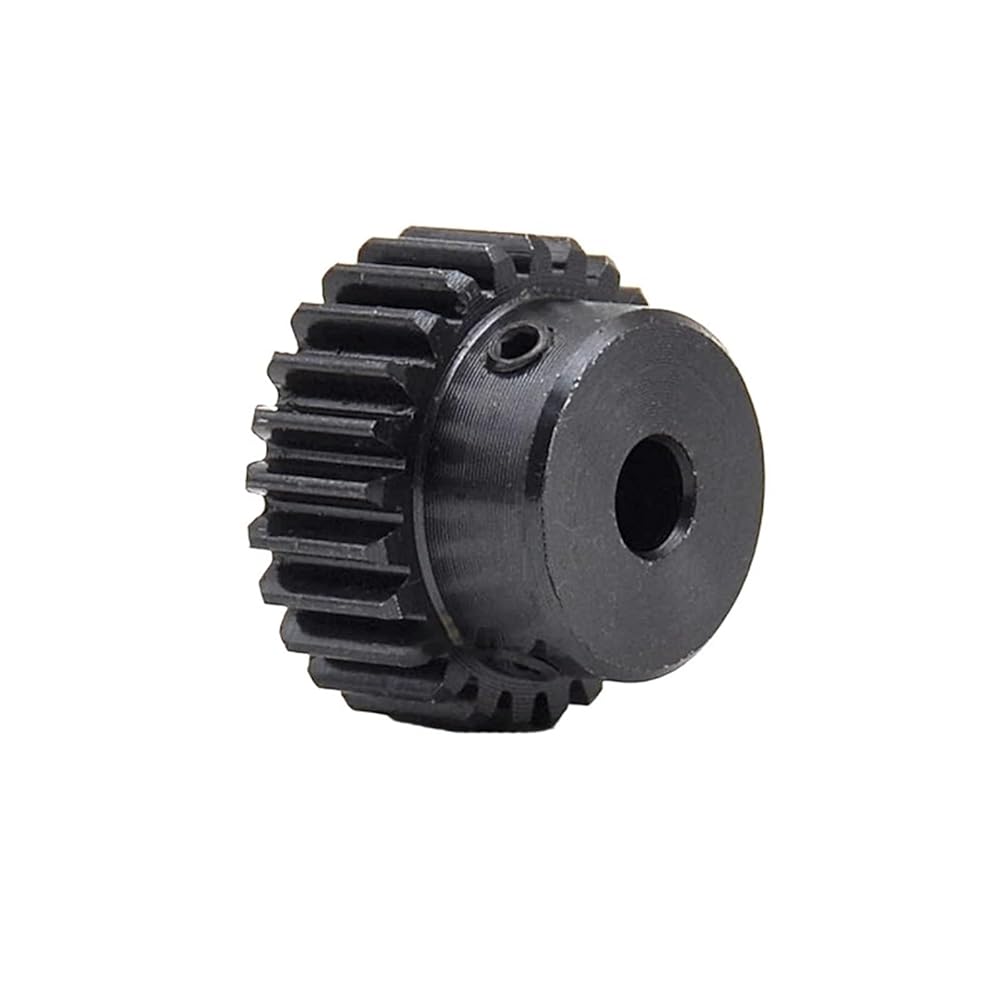

ترس ترس محرك فولاذي شديد التحمل 21/22/23 ترس محرك أسنان 6-12 مم تتحمل 45 # ترس نقل معدني فولاذي (1 متر 22 أسنان 6 مم) in Kuwait

ترس ترس محرك فولاذي شديد التحمل 21/22/23 ترس محرك أسنان 6-12 مم تتحمل 45 # ترس نقل معدني فولاذي (1 متر 22 أسنان 6 مم)

KWD 18.500
مقاس1m 22teeth 6mm
– 1 +

مميزات خاصة

  • 1. Each pinion is equipped with a fixing screw for easy installation.
  • 2. The spur gears are wear-resistant, produce less noise, and roll more smoothly.
  • 3. Widely used in various electric grinding machines, gearboxes, reducers, and gear reducers.

وصف

1. The spur gears are made of high-strength steel, suitable for withstanding the pressure of heavy-duty applications.
2. The structural design of the steel gears emphasizes stability and durability, enabling them to withstand long-term operation in harsh environments.
3. Precision machining processes ensure smooth gear surfaces and burr-free edges, guaranteeing safe operation.
Module: 1 Module
1. Number of teeth: 21 teeth
Tooth O.D.: 23mm
Step: 17mm
Overall height: 18mm
Tooth height: 10mm
Optional bore: 6mm
2. Number of teeth: 22
Tooth O.D.: 24mm
Overall height: 18mm
Tooth height:10mm
Optional bore: 6/8/10/12
3. Number of teeth: 23 teeth
Tooth O.D.: 25mm
Step: 18mm
Overall height: 18mm
Tooth height: 10mm
Optional bore: 6/8/10/12
Fixing screw: Send screwsM4*2
Material: 45 steel with blackened surface
