This guide meets the precision needs of machining and engineering tasks, featuring a wide range of tap and clearance drill sizes with precise decimal equivalents. Flexible magnetic chart ensures accuracy and compatibility for effective communication in diverse applications.
The magnetic poster included in this resource goes beyond mere size listings. It delves into the specifics of thread engagement by providing thread percentage specifications for both 75% and 50% threads. This level of detail enables users to tailor their choices to their project's mechanical requirements, enhancing the overall strength and functionality of the final product.
The magnetic drill guide sheet offers Close and Standard fit guidance, aiding users in selecting the correct clearance drill size for their project's needs. This accuracy enhances component quality and end-product performance. Serving as a user-friendly reference, this compilation streamlines decision-making for both beginners and experts. By consolidating crucial information, including sizes, equivalents, and specifications, the guide reduces errors and fosters confident choices in machining and drilling operations.

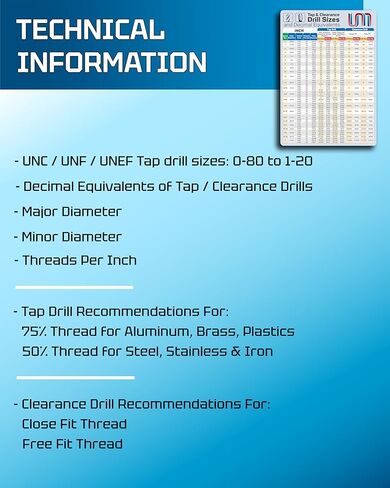

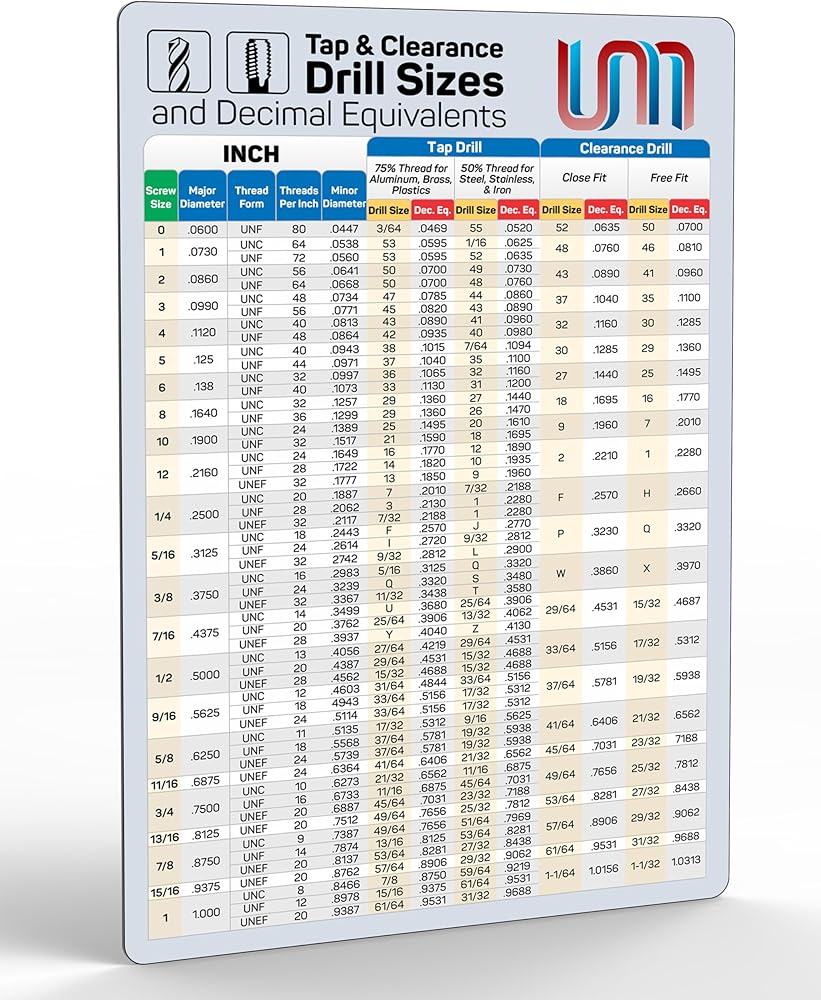

INCH Tap & Clearance Drill Sizes and Decimal Equivalents
Tap & clearance drill sizes for 0-80 to 1-20, UNC, UNF, UNEF.
Decimal equivalents of tap drills.

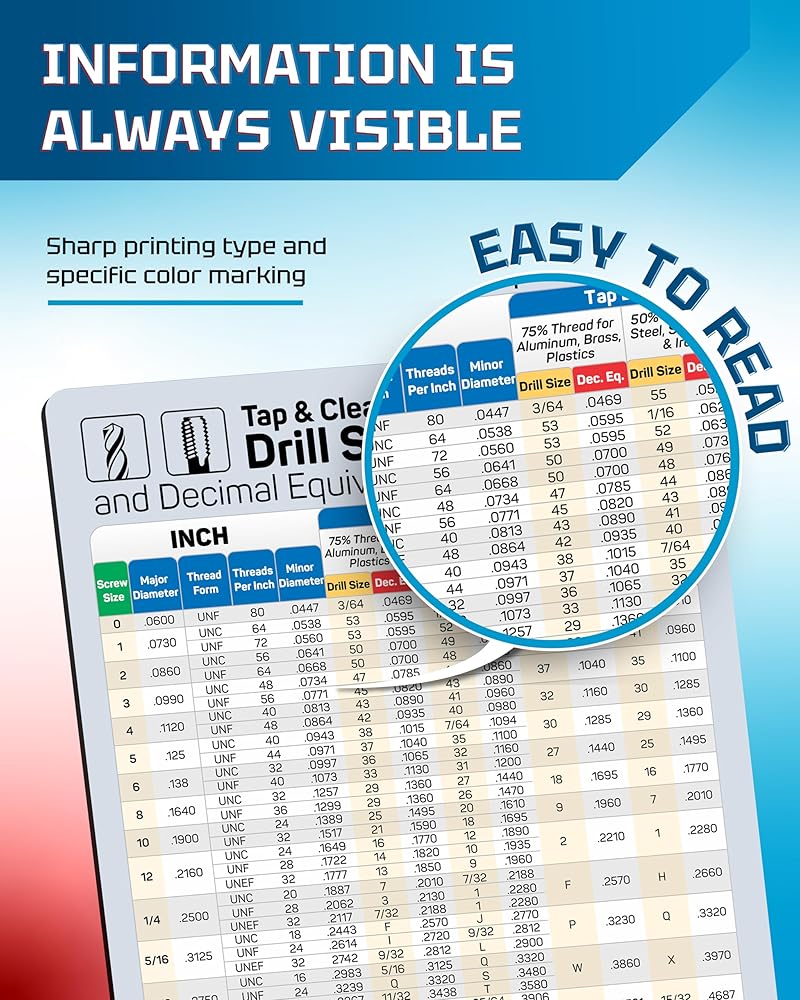

Tap Drill Size Chart for 75% and 50% thread.
Clearance Drill Size Chart for Close and Standard Fit.
In essence, the "INCH Tap & Clearance Drill Sizes and Decimal Equivalents" resource transcends being a mere collection of measurements. It empowers engineers, machinists, and enthusiasts with the knowledge they need to make informed choices that impact the precision, functionality, and performance of their projects.
