Parameters and specifications
Range -0.1~100MPa (support pressure/conventional/high pressure customization, such as 0~10kPa, 0~60MPa, etc.)

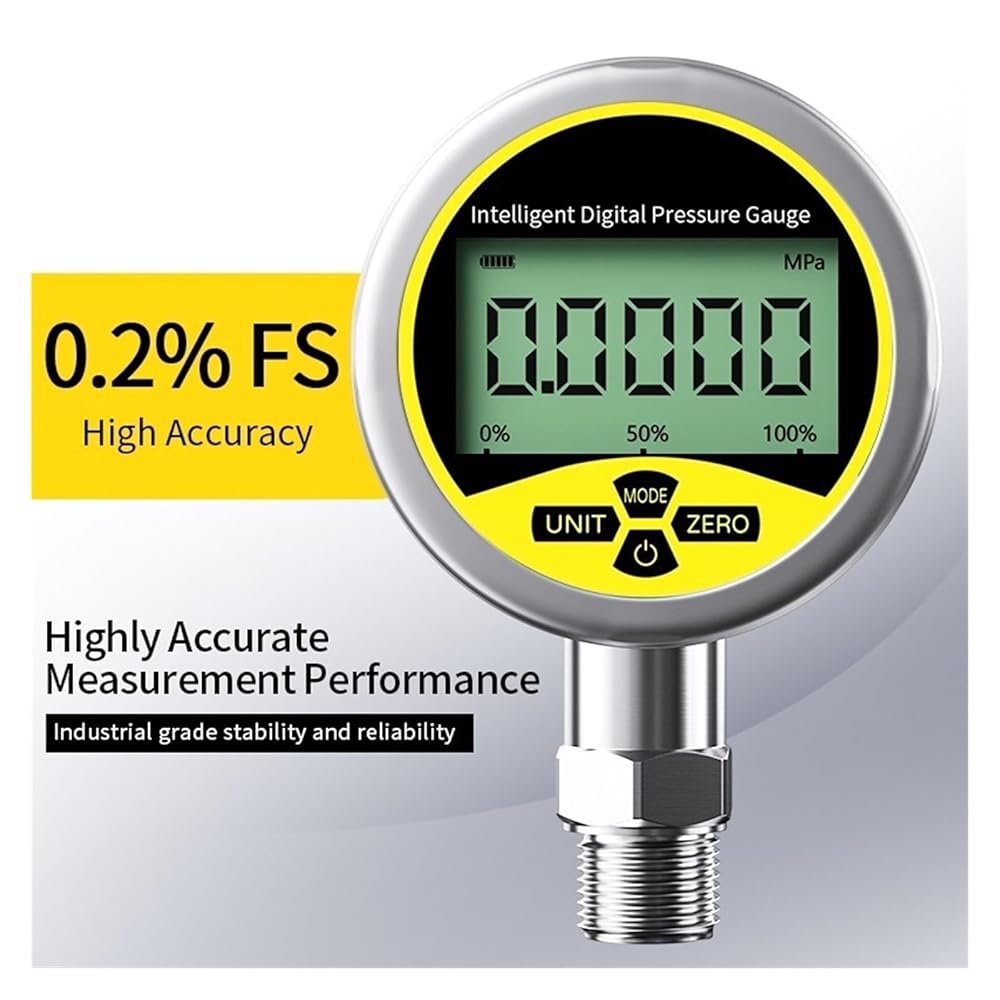

Accuracy 0.2%FS (0.4% optional for some ranges)
0.56 inch LED or 80mm large LCD display (white backlight)

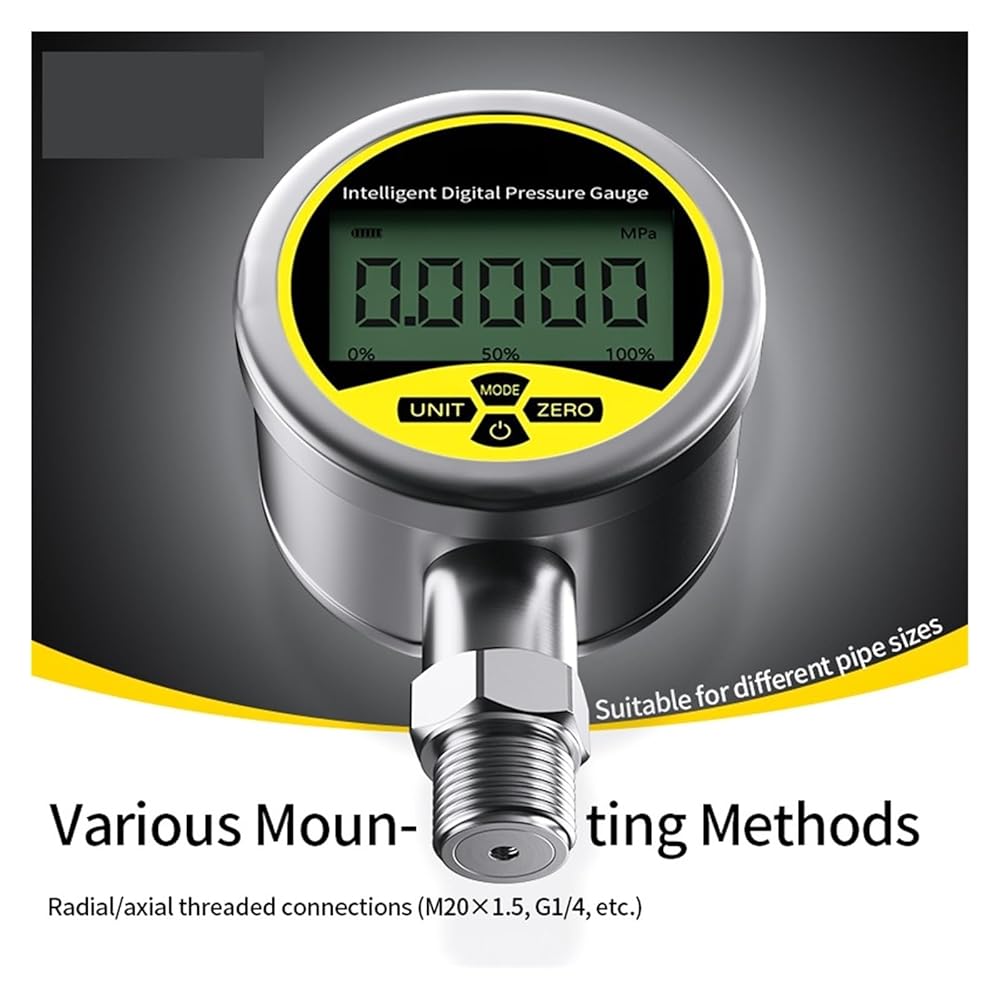

M20×1.5 interface thread (support customization like G1/4, NPT1/4, etc.)

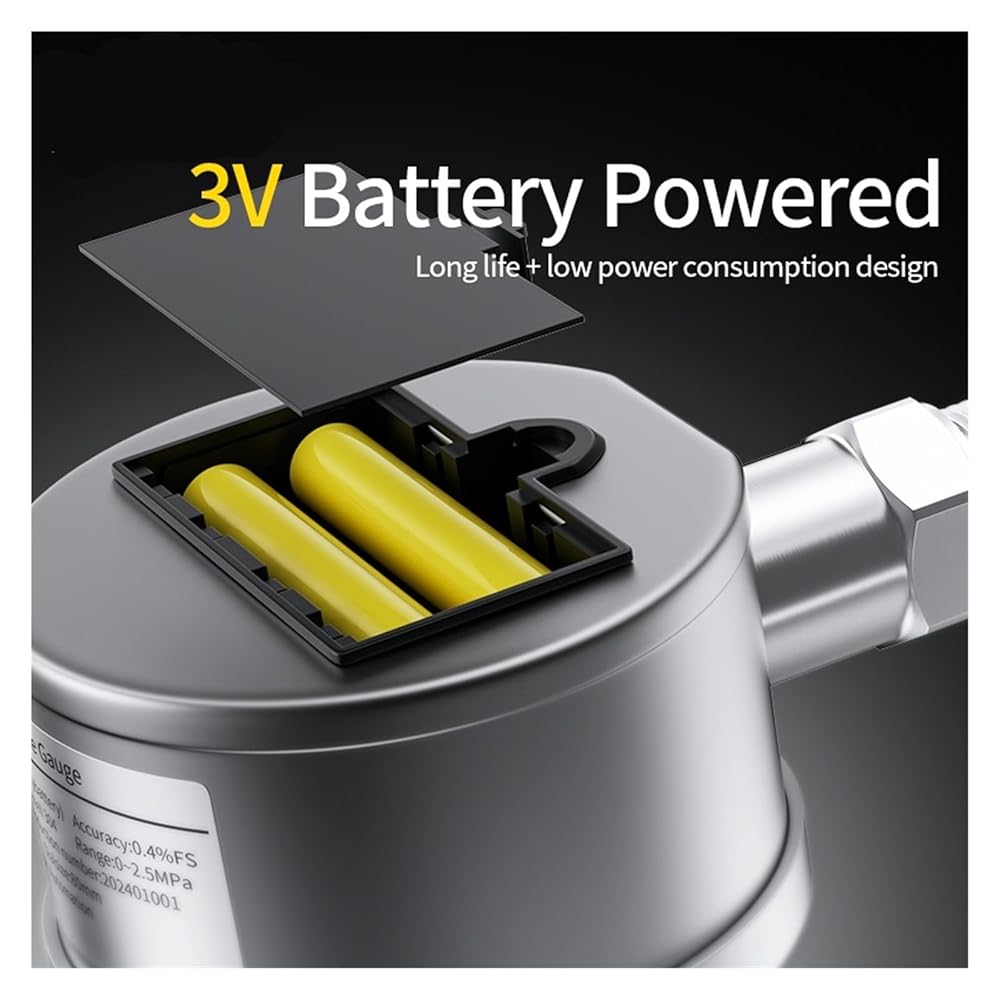

Power supply: 3V battery (AAA×2) or external 24V DC power supply
Media Compatibility Water, Oil, Gas and Other Non-Corrosive Media for Stainless Steel
Working temperature: -20~70℃ (special customization can be expanded to -40~150℃)
Protection level IP50 (standard), IP54 (with protective cover)
Areas of application
Industrial equipment: hydraulic, air compressor, pressure monitoring of engineering machinery.
Energy and environmental protection: water treatment, thermal networks, pressure detection in oil and gas transmission.
Laboratory and medicine: precision instrument calibration, pressure control of medical equipment.
Explosion-proof scenarios: Hazardous environments such as chemicals and oil tankers (explosion-proof models required).
Product Description
PROFESSIONAL DESIGN:
Full electronic structure, imported piezoresistive sensor, 24-bit A/D conversion, to ensure accurate and stable data.

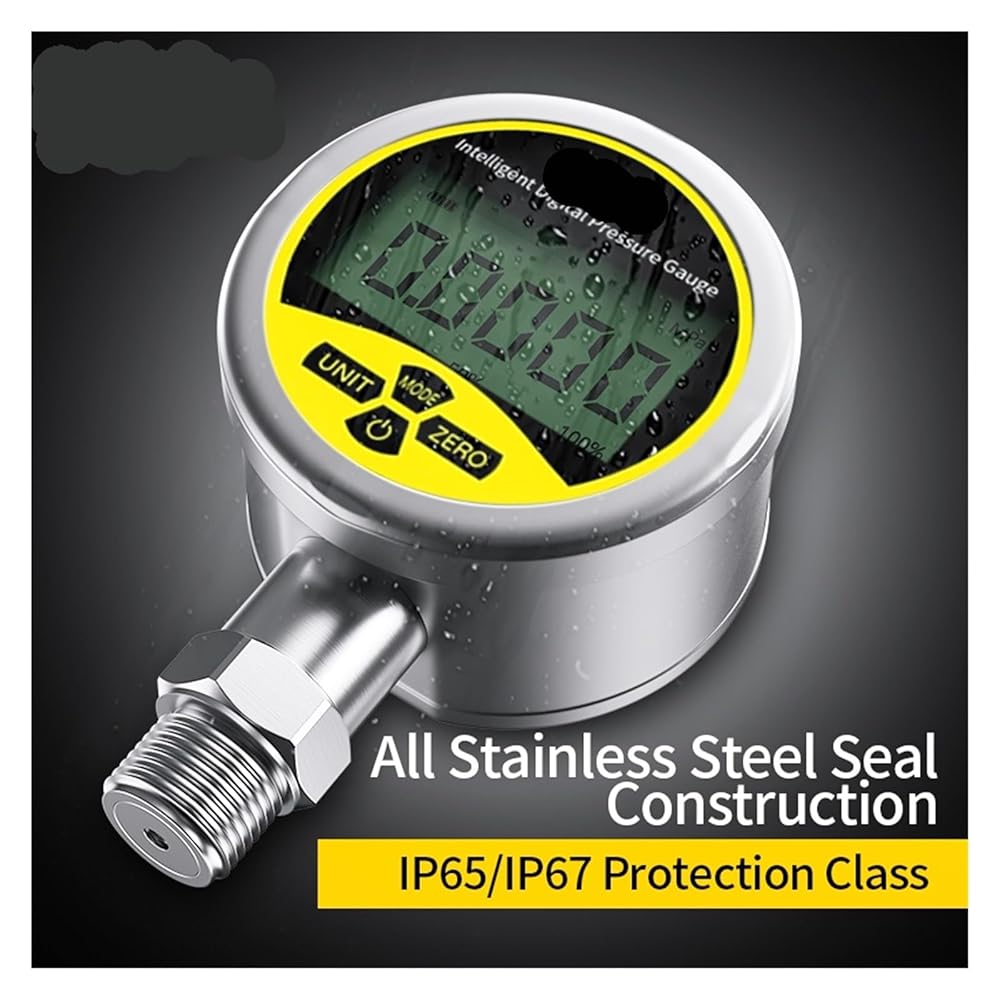

304 stainless steel material, shock and impact resistant, suitable for harsh industrial environments.
SMART FUNCTIONS:
One key zero error, supports quick change of pressure units and simplifies the operation process.
Low voltage alarm function to avoid measurement deviation due to insufficient power.
CUSTOM SERVICE:
Support range customization, interface thread, display unit, explosion-proof level, etc.
Packing Information
Configuration and
