Data connection: The digital thrust gauge can store up to 999 sets of peak test data. You can use the included data cable to connect a laptop and export real-time measurement data
Purpose: This dynamometer can be installed in reverse for tensile or compression tests 10-2000N can be selected according to needs for testing fishing lines buckles springs fish hooks solder joints rubber bands etc.
Digital display: Automatic LCD backlight function allows you to view the readings more clearly. The housing of the tensile gauge is made of ABS plastic + metal with high strength and good toughness
Digital displacement scale: This test bench is equipped with a digital displacement scale (without output function) to help you measure the displacement during the test. Measuring range: 200mm resolution: 0.01mm
Easy to operate: Handwheel device equipped with bearings and alloy reduction gears suitable for long-term manual operation. Maximum stroke 270mm clamping position 0-8mm more stable detection effect
وصف

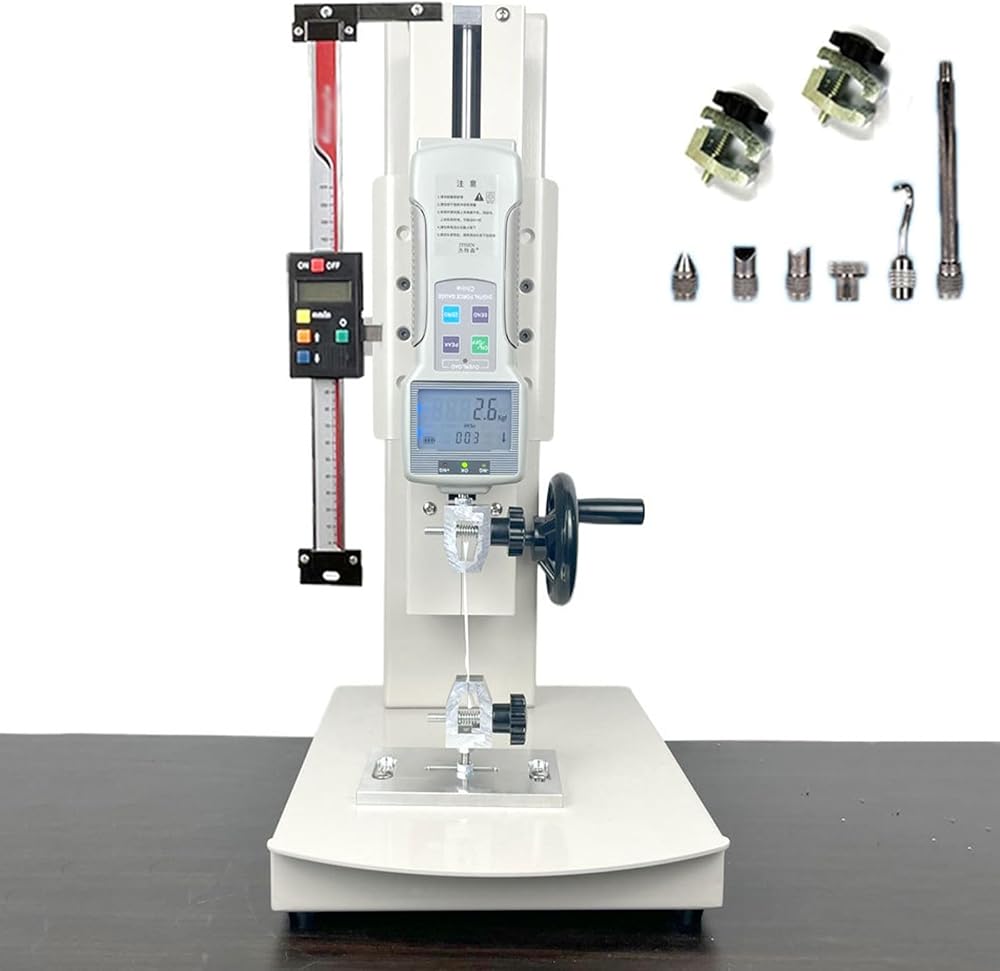

Name: Desktop Tensile Tester
Style: Frame + Digital Display Tester + Digital Scale
Table Resolution: 1N/0.1kgf/0.1Lb
Load: 10N/20N/50N/100N/200N/500N/1000N/2000N
Test Error: ±0.005
Stroke: 270mm
Scale: 200mm
Applicable: Measure tension pressure tear
Frame Specifications: 380x250x555mm
Accessories: 2 clamps 5 test heads 1 extension rod 1 set of mounting screws
