Features:

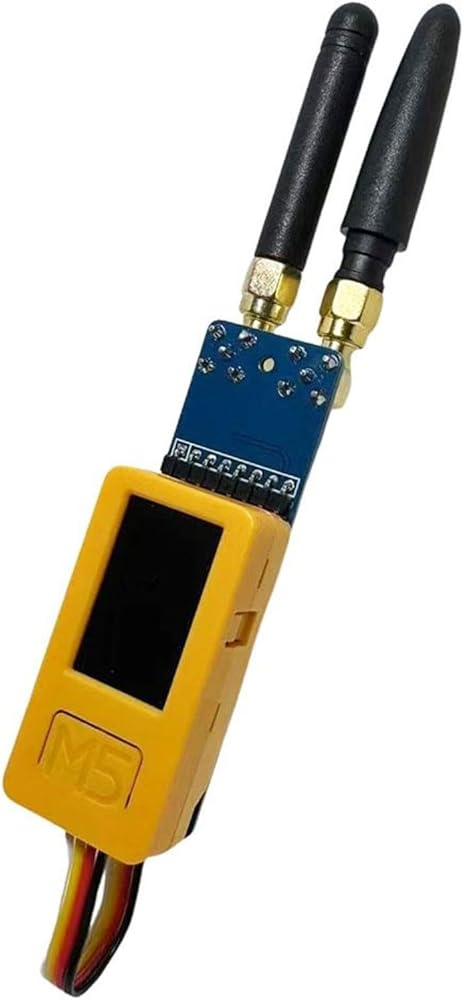

for M5Stack for StickC Plus 2 2-in-1 RF module with housing. Bruce firmware compatible. To use this board with the for StickC Plus 2, flash the Bruce firmware yourself.

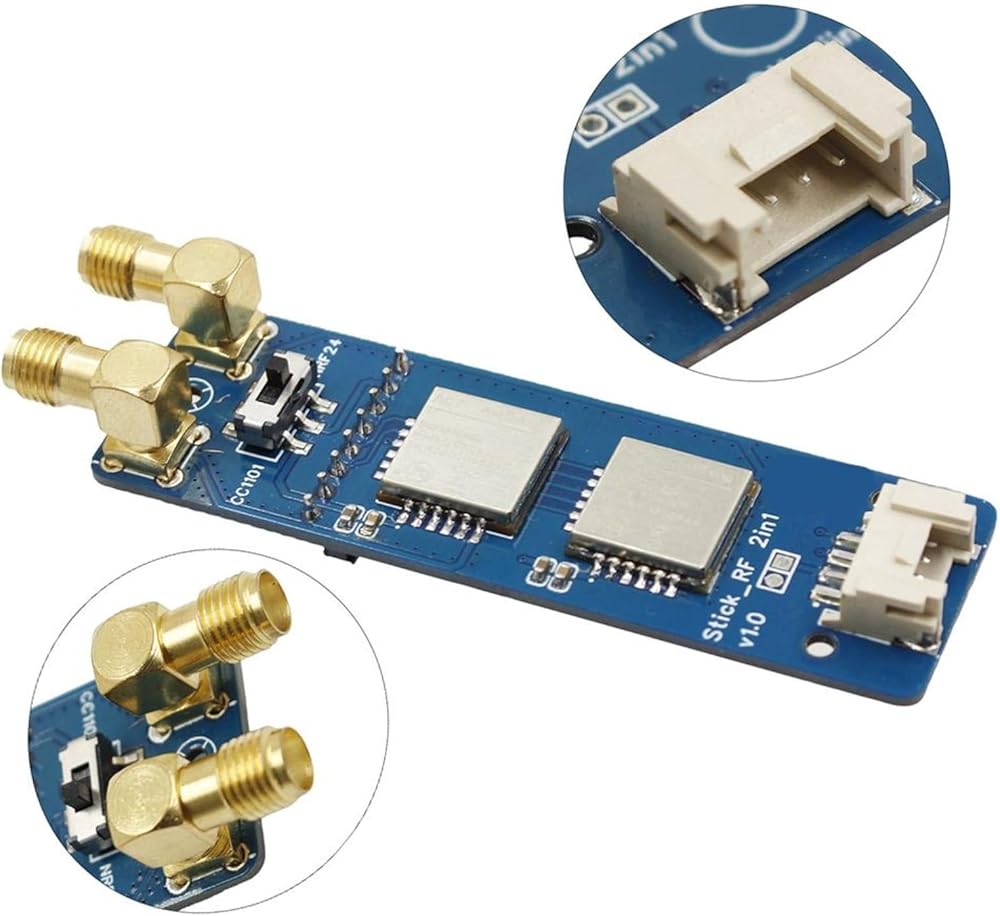

2-in-1 RF module, including the CC1101 and NRF24.
for NRF24 module, implements the for NRF24 jammer.
CC1101 module implements SubGHz signal reception and transmission.
This board includes a physical switch for switching between the two RF modules.

Specifications:
Part Name: for ESP32 Compact IoT Module
Material: As shown
Color: As shown
size: As shown
Compatible Products: for StickC Plus

Instructions:
1. Flash Bruce Firmware (First-Time Setup) To use this board with the for StickC Plus 2, please first flash the Bruce firmware. Follow the instructions to select the correct device (for StickC Plus v1.1/v2) and complete the flashing process.
2. Hardware Connection:
Connect the for RF board to the for for M5Stack for StickC Plus 2 using a for Grove cable or for GPIO for jumper.
The for GPIO pins are pre-configured and compatible with Bruce firmware.
3. Switching Between Modules:
The board includes a physical switch for switching between the two for RF modules.

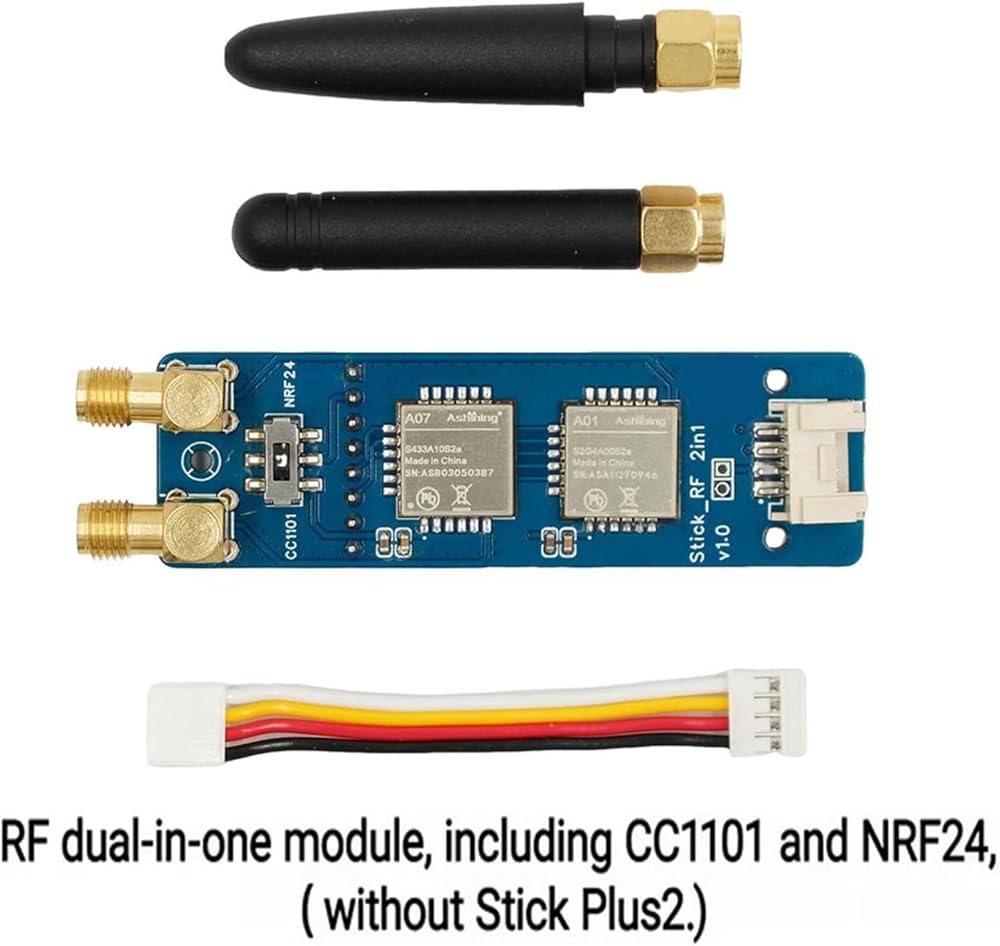

Package Contents:
1 *module
2 *antennas
1 *for Groove cable
