مميزات خاصة

【Manual lever control】: With a light tap, precise control of airflow on and off can be achieved, making the operation easy and effortless, and suitable for the fast start stop needs of pneumatic circuits
【Easy installation】: The quick plug interface supports manual insertion and removal of pipelines, coupled with a sealed design on the threaded end, making installation convenient and effectively reducing air leakage issues
【Appearance size】: Compact and compact, able to be flexibly embedded in small spaces inside devices, suitable for various small pneumatic systems
【Material combination】: The main body is made of engineering plastic and metal connectors, which not only maintains the advantages of lightweight installation, but also enhances the compressive durability at the interface
【Strong practicality】: As a universal pneumatic control valve, it can be widely matched with components such as cylinders, air pumps, and pneumatic fixtures, and is a practical accessory for manual control of pneumatic circuits

وصف

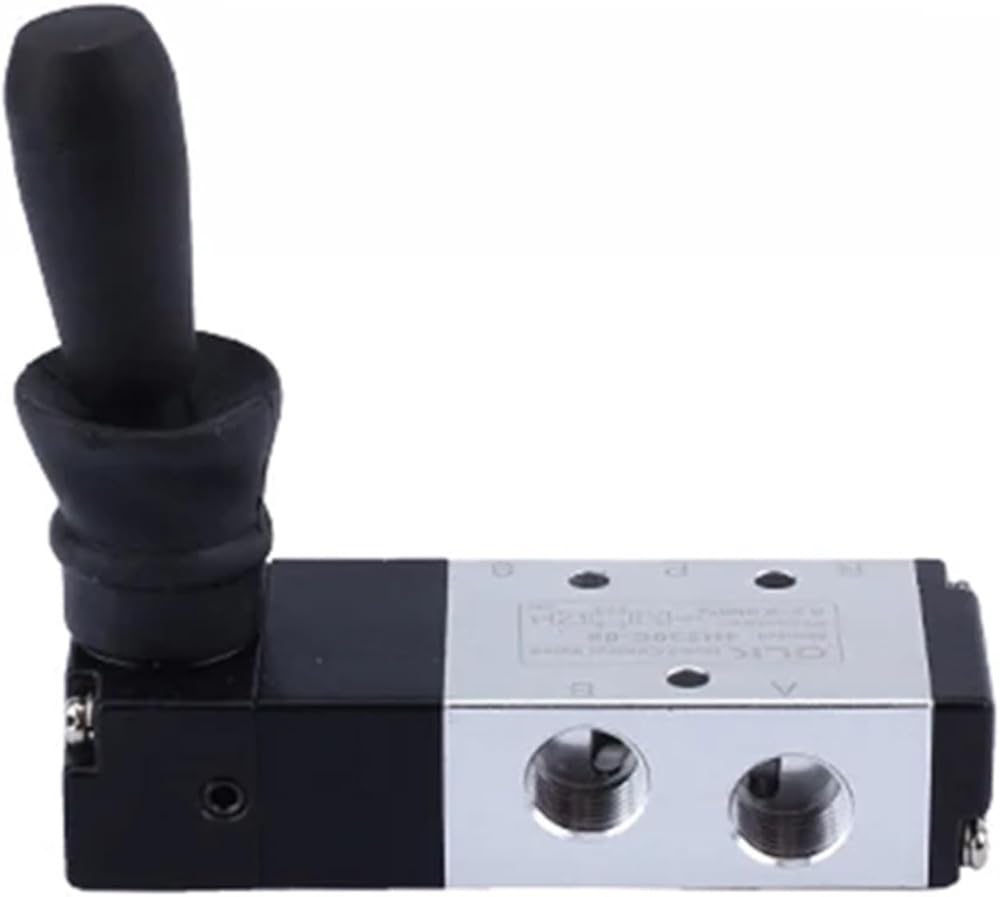

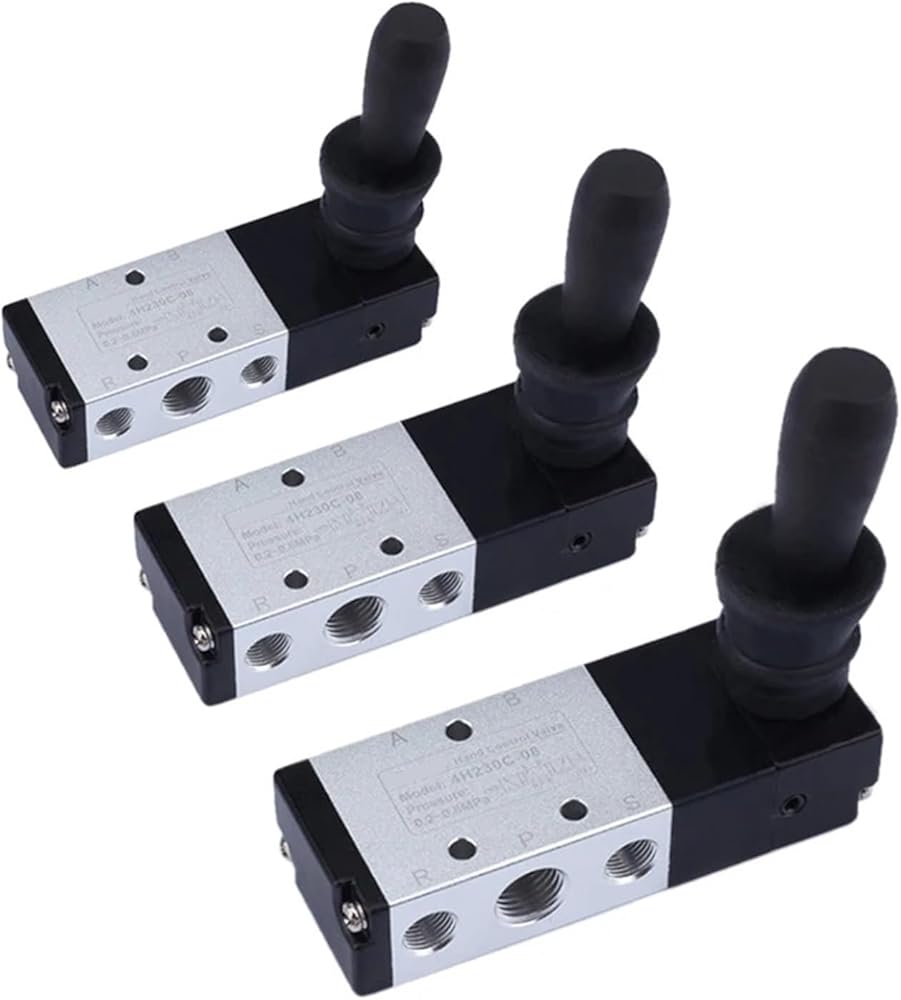

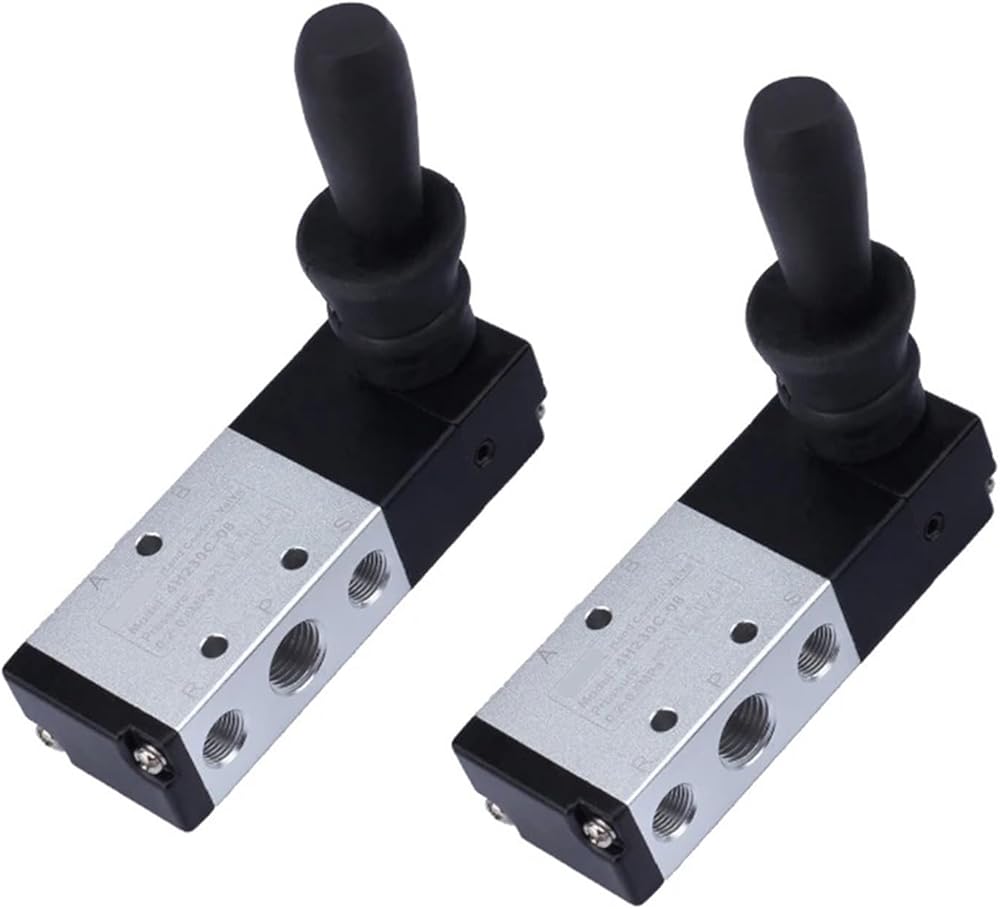

4H230C/E-06/08 1/8inch 1/4inch 2 Position 5 Port 5 Way Pneumatic Air Valve, Hand Lever Operated Control Valve, 1pc
Product Features:
1. Manual operation, smooth actuation, and exact and reliable orientation;
2. Sliding column structure has good tightnedd and light weight and is easy ti install and dismount.
3. Internal hole adopts special processing technology which has little attrition friction, long service life.
4. No need to add oil for lubrication;
5. Panel-mounting maks it convenient to install and apply.
High-concerned chemical : None

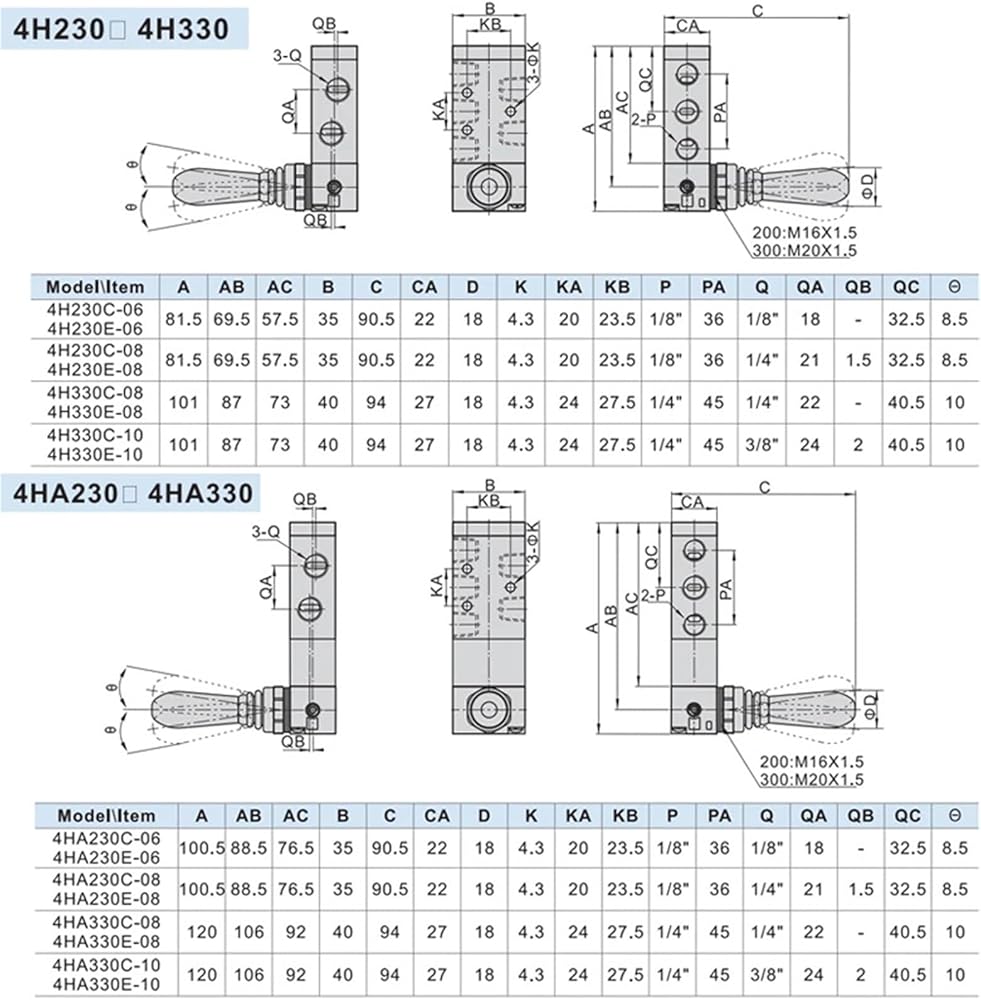

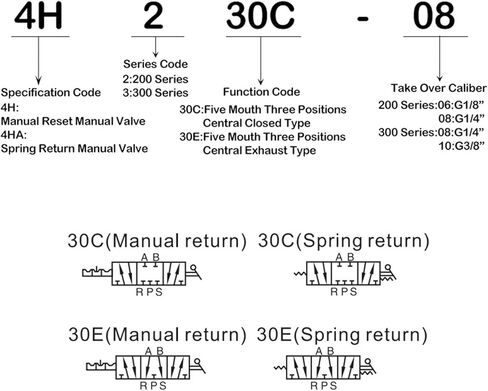

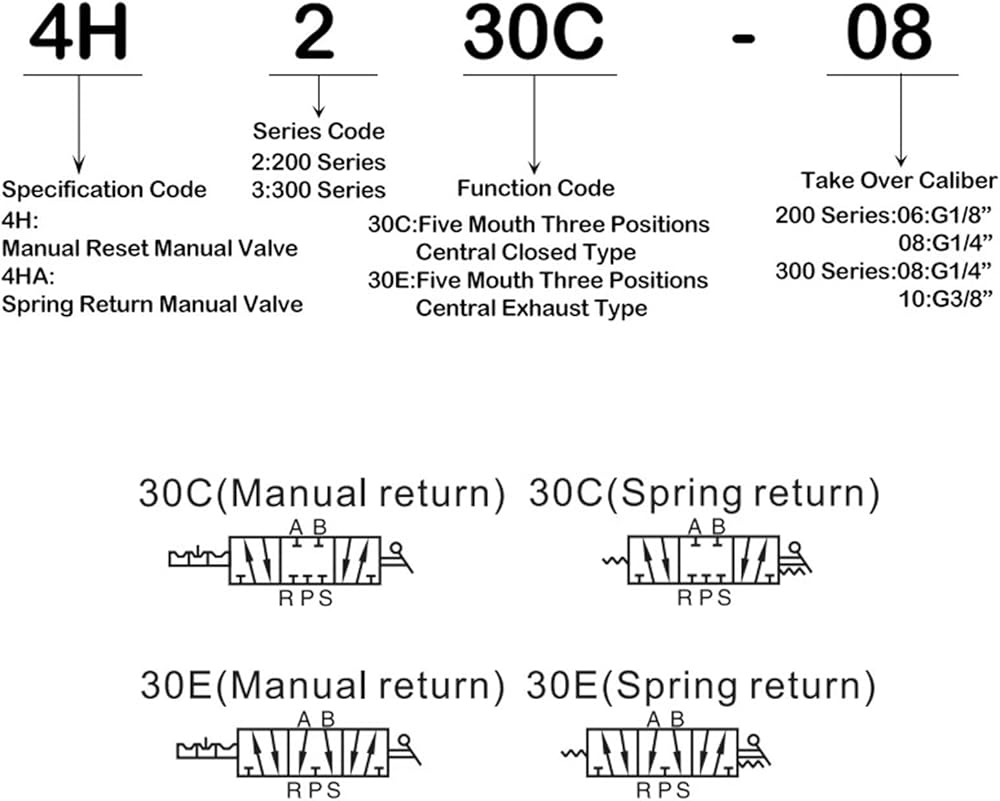

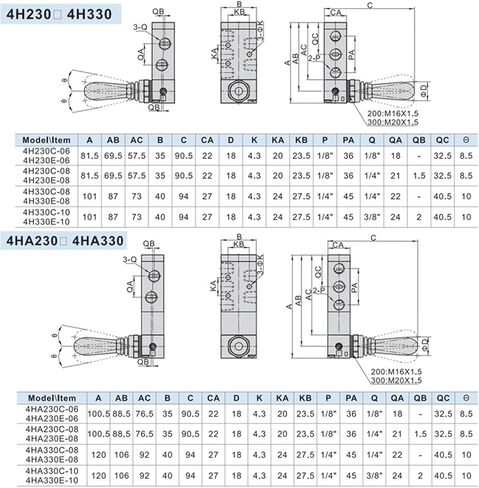

Model Number : 4H230C/E-06/08 4HA230C/E-06/08
Valve type : 5/2Way
Orifice size : 14mm2(CV=0.78) or 16mm2(CV=0.89) etc.
Port size : 1/8" and 1/4"
Operating pressure : 0~0.8MPa(0~116psi)
Max.proof pressure : 1.5MPa(215psi)
Temperature : 5~50
Material body : Aluminum alloy
Operating : Manual control direct acting type
