For ICL8038 Function Signal Generator Module Electronics DIY Kit, Frequency Range 5Hz 400kHz, Outputs Sine, Triangle, Square Waves, Duty Cycle 2 95%(Kit) in Kuwait

Kit and acrylic shell

KWD 4
ماركة
Elmtap
وزن
38 g
اسم النمطKit and acrylic shell
– 1 +

مميزات خاصة

  • [DIY SIGNAL GENERATOR KIT] Unleash your creativity with this function signal generator featuring ICL8038 technology. It outputs multiple waveform types including sine, triangle, square, and sawtooth, making it suitable for various electronic experiments.
  • [ADJUSTABLE PARAMETERS] Choose your projects with a frequency range of 5Hz to 400kHz and a duty cycle adjustable from 2% to 95%. This flexibility allows you to achieve precise results tailored to your needs.
  • [LOW DISTORTION PERFORMANCE] Generate low distortion sine waves at just 1%, suitable for applications requiring high fidelity signals. This feature ensures that your experimental results are reliable and accurate.
  • [EASY POWER CONFIGURATION] Dual power support out the need for blocking capacitors, resulting in minimal distortion during operation. This makes the kit suitable for both high and low frequency experiments without compromising quality.
  • [DIMENSIONS AND MATERIALS] With a compact PCB size of 81 mm x 51 mm crafted from FR4 and acrylic, this kit is designed for durability. Remember to verify your size requirements prior to ordering.

وصف

Features:
* Adopt ICL8038 and high-speed operational , with higher for .
* Can output sine/triangle/square/forward and reverse sawtooth waveforms.
* Frequency range: 5Hz~400kHz; Duty cycle range: 2~95% (adjustable)
* Support dual power , no blocking capacitor, for ensure high and low frequency signal distortion.
* Adjustable frequency and amplitude.
* Frequency adjustment has coarse and fine adjustment functions.
* All are through-hole components, easy to install.

Specifications:
Product name: Signal generator kit
Material: FR4+Acrylic
Color: As shown in the picture
Size: PCB board size: 81*51mm
Supply voltage: 12V~15V
Frequency range: 5Hz~400KHz (adjustable)
Duty cycle range: 2~95% (adjustable)
Low distortion sine wave: 1%
Low temperature drift: 50ppm/°C
Output triangle wave linearity: 0.1%
DC bias range: -7.5V~7.5V
Output amplitude range: 0.1V~11VPP (working voltage 12V)

Package Content:

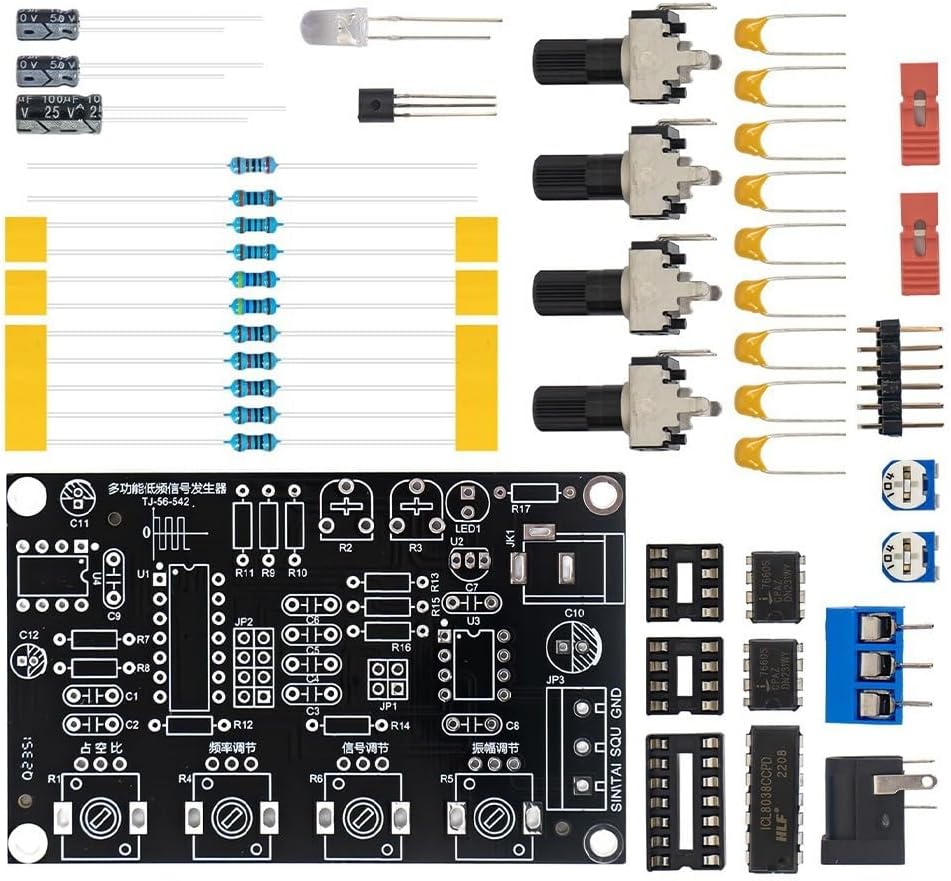

1*Signal generator kit or 1*Signal generator kit (with acrylic shell)
