FL-2F 1200A 50MV محول لوحة تحويل التيار المستمر in Kuwait FL-2F 1200A 50MV محول لوحة تحويل التيار المستمر in Kuwait

FL-2F 1200A 50MV محول لوحة تحويل التيار المستمر

KWD 35
ماركة
ZGHQHCDRH
وزن
3 kg
مقاس75MV
– 1 +

مميزات خاصة

  • Used for accurate current sensing in electrical and industrial circuits.
  • Provides stable signal output suitable for long-term use.
  • Designed to minimizeffected by temperature changes during continuous load conditions.
  • Compact structure allows easy integration into various electrical assemblies.
  • Suitable for power distribution, equipment testing, and energy applications.

وصف

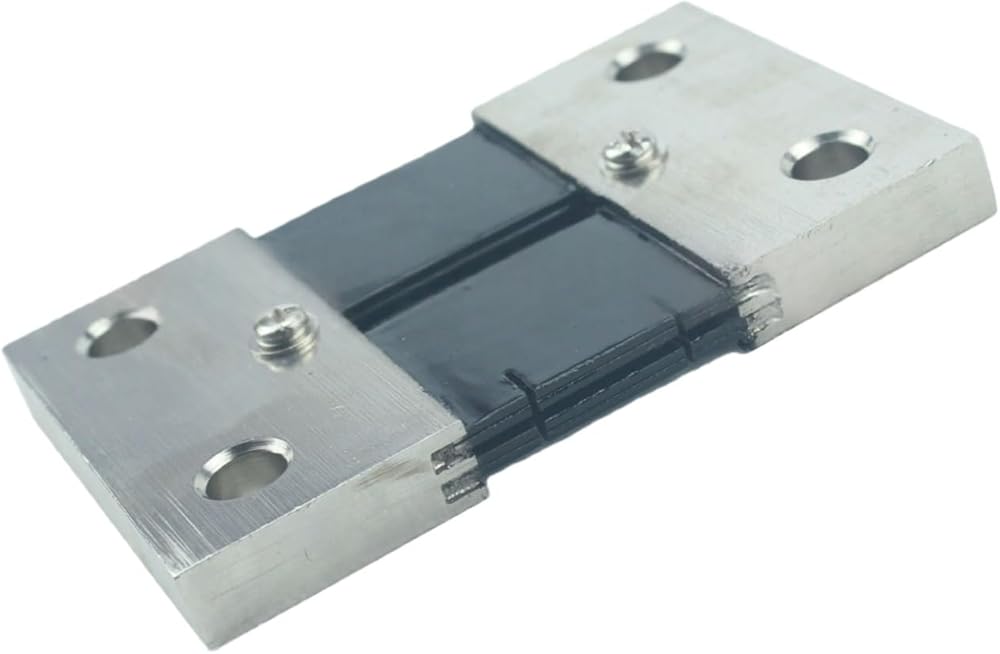

FL-2F 1200A 50MV Current Shunt DC Shunt Plate Diverter
Product Name: Shunt
Environmental Conditions: -40°C to 60°C

Product Model: FL-2F
Accuracy Level: 0.5 level for 1–4000A; 1 level for 5000–15000A

Overload Performance: 120% of rated current
Relative Humidity: ≤95% (at 35°C)

Voltage Drop: 50mV
Overload Capability: 120% of rated current for 2 hours

Notes:
No artificial contact resistance is allowed at the connection points between the primary circuit cable (or copper busbar) and the shunt. The secondary voltage sampling point must not be taken from non-sampling points. It is recommended that the actual operating current (for extended periods) should not exceed 80% of the rated current.

Heat Rise Under Load:
After temperature stabilizes:

For rated currents up to 50A, temperature shall not exceed 80°C.

For rated currents above 50A, temperature shall not exceed 120°C.

Secondary Voltage Drop Options:
50mV, 60mV, 75mV, 100mV, 150mV, 200mV, 300mV, etc. Default is 50mV.
