FL-US 100A 100MV التحويلة الحالية تحويلة تيار مستمر in Kuwait

FL-US 100A 100MV التحويلة الحالية تحويلة تيار مستمر

KWD 19.500
ماركة
ZGHQHCDRH
وزن
3 kg
مقاس75MV
– 1 +

مميزات خاصة

  • Used for accurate current sensing in electrical and industrial circuits.
  • Provides stable signal output suitable for long-term use.
  • Designed to minimizeffected by temperature changes during continuous load conditions.
  • Compact structure allows easy integration into various electrical assemblies.
  • Suitable for power distribution, equipment testing, and energy applications.

وصف

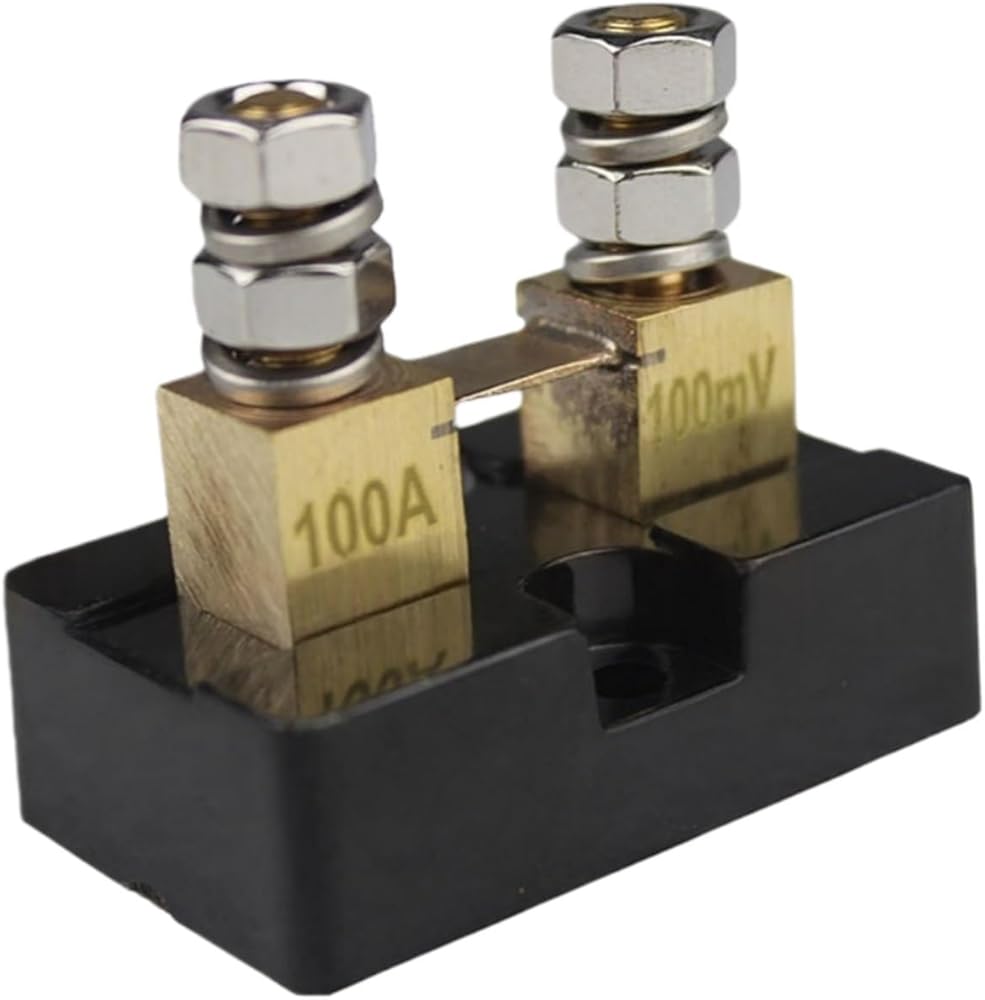

FL-US 100A 100MV Current Shunt DC Shunt
Product Name: Shunt
Environmental Conditions: -40°C to 60°C

Product Model: FL-US
Accuracy Level: 0.5 for 1–4000A; 1 for 5000–15000A

Overload Performance: 120% of rated current
Relative Humidity: ≤95% (at 35°C)

Voltage Drop: 100mV
Overload Capability: 120% of rated current for 2 hours

Notes:
No artificial contact resistance is allowed at the connection points between the primary circuit cable (or copper busbar) and the shunt. The secondary voltage sampling point must not be taken from non-sampling points.
It is recommended that the actual operating current (for extended periods) should not exceed 80% of the rated current.

Heat Rise Under Load:
After temperature stabilizes:

For rated currents up to 50AU, temperature shall not exceed 80°C.

For rated currents above 50AU, temperature shall not exceed 120°C.

Secondary Voltage Drop Options:
50mV, 60mV, 75mV, 100mV, 150mV, 200mV, 300mV, etc. Default is 100mV.
